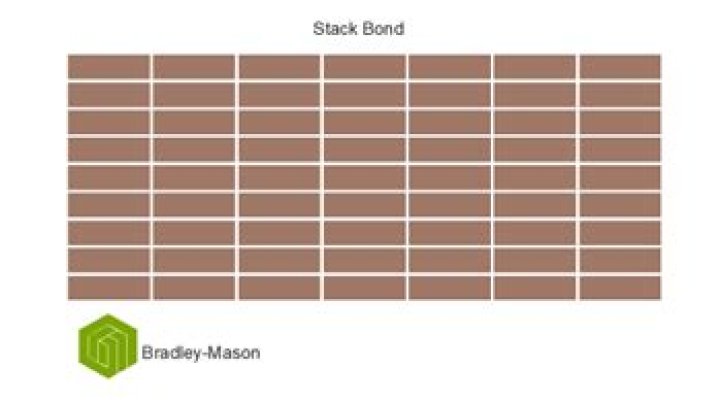

Stack bond, or stacked bond, refers to a pattern in which bricks or tiles are stacked on top of one another, resulting in continuous horizontal edge joints and the vertical head joints. A stack bond pattern is typically used in non-load bearing situations.

What is a stack bond construction?

Although stack bond typically refers to masonry constructed such that the head joints are vertically aligned, the Code defines stack bond as masonry laid such that the head joints in successive courses are horizontally offset less than one quarter the unit length, as illustrated in Figure 1.

What is a pattern bond?

Pattern Bond: The pattern formed by the masonry units and the mortar joints on the face of a wall. The pattern may result from the type of structural bond used or may be purely a decorative one unrelated to the structural bonding.

Which bond is better stack or bond?

The running bond is about twice as strong in flexure when spanning horizontally as when spanning vertically. Meanwhile, stack bond walls have approximately the same strength regardless if spanning vertically or horizontally having the joints aligned in either direction.

What is the difference between running bond and stack bond?

A 1/3 Running Bond Pattern offsets the second row of brick by 1/3 width of brick. The third row shifts back and aligns with the first. A Stack Bond Pattern is where all the masonry units are laid with all vertical joints aligned create a grid pattern in appearance.

What is Dutch bond?

English and dutch bonds are the particular pattern of laying bricks for constructing a wall. the basic difference is – English Bond – a bond used in brickwork consisting of alternate courses of stretchers and headers. Dutch bond – is created by laying alternate headers and stretchers in a single course.

Is stack bond strong?

Properly reinforced stack bond walls can be as strong as walls constructed with running bond for most loading conditions. … Since the horizontal joints aren’t any different between stack bond and running bond, there is no difference in strength between these wall types when spanning vertically.

Which is the strongest brick bond?

English bond is considered as the strongest and most widely used brick bond in construction work. It consists of an alternate course of headers and stretchers. In this arrangement, vertical joints in the header and stretcher courses come over each other.

What does brick bond mean?

Bonding is the arrangement of bricks in a structure such as a wall or column. … Bricks are typically laid to an offset pattern to maintain an adequate lap between joints from one course to the next and to ensure that vertical joints are not positioned above one another on consecutive courses.

What is the weakest brick bond?

Flemish bond This bond resembles the monk bond. It differs in that all courses consist consecutively of a header and a stretcher. An often used bond that includes a little more cutting work. This bond is weaker than English bond at one brick thick.

Article first time published on

What is header and stretcher in brick?

Header is the shorter square face of the brick which measures 9cm x 9cm. … While Stretcher bond is used for the construction of walls of half brick thickness whereas header bond is used for the construction of walls with full brick thickness which measures 18cm.

How many bonds can you run on the pattern?

Currently, with the free version of the app, you can run 6 free Bonds every 24 hours. Unlimited Bonds can be accessed by joining ‘The Pattern: Connect’ waitlist, which will also allow you to receive priority access to this new exciting feature!

What are the different bonds on pattern?

Users run what are called “bonds” through the app, which slot potential partners into six categories: soulmate, extraordinary, powerful, meaningful, complex, delicate, or challenging.

Is the pattern a dating app?

The Astrology App That Shook Channing Tatum Got a Dating Feature — So I Had to Try It. You may know The Pattern as that astrology app that flabbergasted Channing Tatum over its accuracy, or perhaps you use it for zodiac-based daily updates on your personality and feelings like I do.

What is Flemish bond brick?

Flemish bond (plural Flemish bonds) (masonry) In bricklaying, an arrangement of bricks such that each course consists of alternate bricks having their short sides (headers) and long sides (stretchers) facing outwards, with alternate courses being offset.

What is masonry wall where CHB and bricks are bonded together for better appearance?

Composite Masonry Walls These walls are constructed with two or more units such as stones or bricks and hollow bricks. This type of masonry wall construction is done for better appearance with economy. In composite masonry walls, two wythes of masonry units are constructed bonding with each other.

What is stack bond tiling?

Straight (or stack bond) The most common and simplest tiling pattern. The tiles are laid in straight lines so the grout lines end up like a grid. A great tip when buying your tiles is to make sure that they all have the same batch number. … You’ll find the batch number on the packaging.

Is stack bond a structural bond?

The stack bond is made up of courses of stretchers where each stretcher is stacked directly above a stretcher and the joints align. This is not a structural bond and is generally used on interiors for non-load bearing walls.

What is subway tile?

Subway tile gets its name from the look of the tiles in the New York City subway system, though those early tiles were actually made of white glass. Subway tile is by definition a rectangular, thick, low-fired, glazed ceramic tile, traditionally 3″ by 6″, though it comes in a variety of sizes for home use.

What is Monk Bond?

A monk bond is a type of brick laying pattern that is similar to Flemish bond, but with two stretchers and a header in the basic repeat pattern.

What is herringbone bond?

The herringbone bond is a variety of raking bond in which units are laid at an angle of 45° to the direction of the row, instead of horizontally. Alternate courses lie in opposing directions, resulting in a zigzag pattern.

What is the difference between Dutch bond and Flemish bond?

ENGLISH BONDFLEMISH BONDLess pleasing appearanceAppearance is more attractive and pleasingExpensiveEconomical

What is rat trap bond?

Rat trap bond is a modular type of masonry bond in which the bricks are placed in a vertical position which creates a cavity in the wall while maintaining the same wall thickness as that of the conventional brick masonry wall. It is also known as a Chinese brick bond.

How many bonds are in brick masonry?

Types of bonds, Stretcher bond, Header bond, English bond, main features of English bond,Arrangement of Bricks in English Bond, Flemish bond, Dutch bond, Garden wall bond, Raking bond,Two varieties of raking bond viz., Diagonal bond and Herring bone bond, Facing bond.

What is the strongest brick pattern?

The strongest of the patterns is the herringbone. It can be laid at a 45 or 90 degree angle. The pattern has many angles that can be described as energetic, and can truly engage your visitors as they make their way to the entrance of your home.

Why do we stagger bricks?

In building walls, brick bats(half bricks) are used so the joints of the bricks stagger. This staggering gives the lower and upper bricks stability and strength, as to not cause a fracture line in the mortar.

Which bond is not used in load bearing wall?

Stack brick bonding is basically the style of brick laying that all other brick-laying is trying not to be. By stacking the bricks in directly aligned rows of stretchers, the wall created is extremely weak and unable to take any kind of load. Stack bonds are therefore unsuitable for external and load bearing walls.

Which brick bond is best for construction?

One of the most common brick bonds, also popularly called running bonds. This bond is very easy to lay, in fact, is one of the simplest ones used today. Stretcher bond is suitable when walls of half brick thickness need to be constructed.

Which Bond is best in brick masonry?

English Bond This is considered to be the strongest bond. Hence it is commonly used bond for the walls of all thicknesses. To break continuity of vertical joints a brick is cut lengthwise into two halves and used in the beginning and end of a wall after first header.

What bond is used in Arch Masonry?

The header Bond in brick is considered to be the strongest and widely used bond in masonry construction. Header means a shorter square span face of the brick which has dimensions 9cm x 9cm. The arrangement is such that it forms the strongest bonding between bricks, making it the strongest bond for bricks.

What is frog in a brick?

A frog in a brick is an indentation in the top and about an inch deep at its fullest point and has sloping sides . The idea is it takes mortar and combined with the joint of the two bricks that meet over it in the row above when set, prevent the brick moving in all directions and giving it stability .
