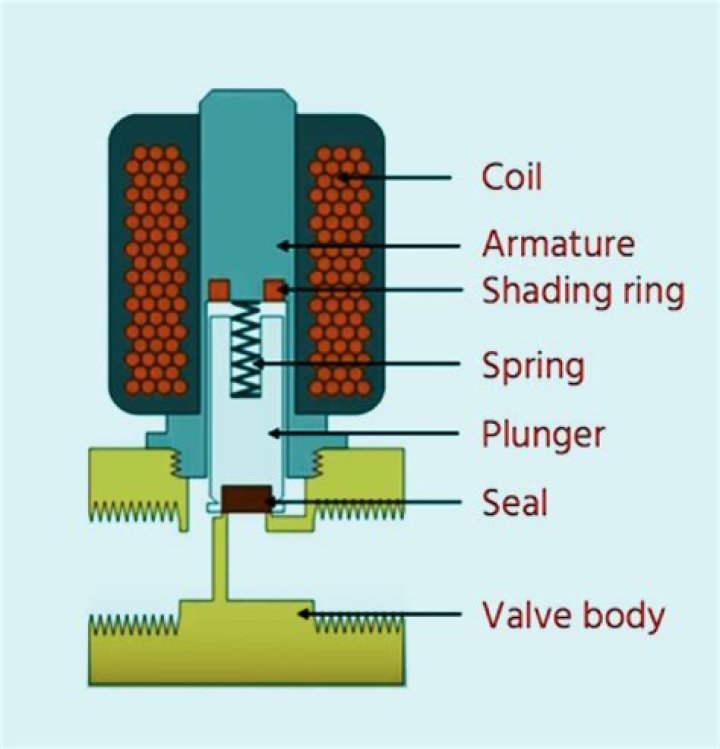

A solenoid plunger is the moving part of a solenoid that transfers linear motion from the solenoid to the component that it is designed to operate. The plunger is typically a ferrous metal bar of square or round cross-section designed to fit into the solenoid coil pocket.

What are solenoids used for?

Solenoids are most commonly used as electromagnets, and all the examples so far are that kind of solenoid. But there are some other uses. They can be used to slow the flow of electricity in a circuit, making them an example of an inductor, or an impedance device.

How do push pull solenoids work?

Like other linear solenoids, push-pull solenoids are on/off type actuators that develop force in one direction when energized. The return force must be provided externally, by a return spring for example.

What does a solenoid do in a water pump?

Solenoid pumps are a class of positive displacement pump which use a diaphragm and solenoid assembly to displace the fluid into the discharge line. The solenoid assembly consists of an electromagnet and spring. When current is applied to a solenoid the electromagnetic core moves a diaphragm into the discharge position.

What is plunger movement?

Rotary piston and plunger pumps use a crank mechanism to create a reciprocating motion along an axis, which then builds pressure in a cylinder or working barrel to force gas or fluid through the pump. The pressure in the chamber actuates the valves at both the suction and discharge points.

What does a solenoid look like?

A solenoid is a coil of wire in a corkscrew shape wrapped around a piston, often made of iron. … Like all magnets, the magnetic field of an activated solenoid has positive and negative poles that will attract or repel material sensitive to magnets.

Is a solenoid a motor?

Solenoids are a type of electric motor. They are commonly used in cars as heavy duty relays. The technical definition of a solenoid is a device or motor that can produce back and forth, or linear, motion when a force is applied. Solenoids will respond to hydraulic, pneumatic or electrical force.

What do mean by solenoid?

Definition of solenoid : a coil of wire usually in cylindrical form that when carrying a current acts like a magnet so that a movable core is drawn into the coil when a current flows and that is used especially as a switch or control for a mechanical device (such as a valve)

Is solenoid a coil?

A solenoid is a long coil containing a large number of close turns of insulated copper wire. Its shape is somewhat like a spiral loop of wire. It may be regarded as a circular coil with very large number of turns.

Why does a plunger move in a solenoid?

When we energise the coil, the plunger moves from its position due to magnetic attraction and when we cut the power to coil, the plunger comes back to its original position with the help of a spring. As soon as the plunger comes in the path of the flowing fluid, its flow stops.

Article first time published on

How strong is solenoid?

A linear solenoid can provide up to 30 pounds of force from a unit less than 2-1⁄4 inches long. A rotary solenoid can provide well over 100 lb-in of torque from a unit also less than 2-1⁄4 inches long.

What is a push solenoid?

push. ◆ A push solenoid is a pull solenoid with an added shaft that extends. out the bottom of the solenoid plunger to provide a pushing function. ◆ The attachment end of the moving plunger is always at the end. providing the movement.

What is the function of the plunger?

The plunger displaces the available volume through its own volume and increases the pressure of the fluid to be pumped. The suction valve closes and the pressure valve opens the way into the process area for the pressurized fluid.

What is difference between piston and plunger?

Similar to plunger pumps, piston pumps use reciprocating pistons to pressurize water and force it through the outlet valve. The difference between a piston and plunger pumps is the high-pressure seal. … Because of this, piston pump seals wear out faster and cannot handle as much pressure compared to plunger pumps.

What is a plunger dial?

The dial indicator or the Plunger dial gauge is one of the simplest and the most widely used mechanical comparator. First of all the use of plunger dial gauge used to compare work-pieces against a master.

How much does a solenoid cost?

TypeCost RangeSingle$15 to $100Pack$50 to $300Labor$120 to $400Total (Pack)$250 to $600

Whats the difference between a solenoid and a motor?

Basically an electric motor is a mechanical device that switches electric energy into mechanical energy by passing an electric current through a wire loop contained within a magnetic field. … If a iron or steel core, called a solenoid, is shaped to fit this path, it will then direct the flow of magnetism through it.

Can a bad solenoid drain your battery?

Once a car starts the starter does not use any battery power, the same for when the engine is switched off, the starter is always connected to the battery but it only gets triggered when the ignition switch is turned to the start position, the starter solenoid (part of the starter and bolted onto the starter) can …

Are solenoids AC or DC?

Solenoids are the most important components used in solenoid valves to control the flow of liquids and gases. Solenoids are electromechanical devices that convert AC or DC electrical energy into linear motion.

Is a solenoid a relay?

Solenoids are a type of relay engineered to remotely switch a heavier current. … The terms solenoid and relay can often be used interchangeably; however, in the Automotive market, the term solenoid generally refers to a “metal can” type, whereas a relay typically refers to the standard “cube” style relay.

What is the difference between a coil and solenoid?

The inductance can even be made variable. Number of turns of coil and nature of core decide the inductance. A solenoid also has a coil with a core. Tge basic purpose of solenoid is to create a magnetic field for doing some work.

Are solenoid and coil the same?

A coil and a solenoid are the same thing. A large number of close turns of insulated copper wire are contained in a long coil. Its shape is similar to a loop of wire. It is thought to be a circular coil with a large number of turns.

What does a solenoid do on a motorcycle?

What Does a Starter Solenoid Do? A starter solenoid is basically a switch that creates a contact point between the battery and the starter. When the starter button is pressed, it energizes the coil, which pushes a contactor to complete the circuit. This transfers DC current from the battery to the starter.

What happens when solenoid valve goes bad?

A malfunctioning VVT solenoid can prevent the valve timing from advancing or retarding as needed. As a result, the engine may exhibit performance problems, such as rough running and poor acceleration.

How do I know if my solenoid is bad?

When the starter motor solenoid engages, you should hear a clicking sound. If you hear a clicking sound but the starter motor isn’t moving, the solenoid could be engaging but not receiving enough battery power. If there’s no sound, the starter solenoid is likely malfunctioning or you might have a dead car battery.

Can you manually open a solenoid valve?

The Magnet is the ideal tool for the service and maintenance engineer who requires a solenoid valve to be operated manually during installation, commissioning or decommissioning or when power is not available. …

What is solenoid How does it behave like a magnet?

Solenoid behaves like a magnet as it has a soft iron core with insulated copper wire over it. When a current is passed through the solenoid, magnetic field is produced around it. The magnetic field produced is similar to the magnetic field of a bar magnet.

How does a solenoid behave like a magnet?

A solenoid behaves like a bar magnet when a current is passed through it. It’s one end of behaves as Magnetic North Pole and the other end as Magnetic South Pole. Like in a bar magnet, the field lines emerge from one end and merge into another. … If the magnet is repelled, the end is north end of the solenoid.

Is a solenoid plunger magnetic?

The conventional solenoid uses a long loop of wire wrapped around a metallic core (plunger), and it produces a magnetic field to generate the linear motion of the plunge when an electric current is passed through the wire coil.

How do you increase the force of a solenoid?

1. increasing the number of turns on the coil.
2. increasing the current.
3. placing an iron core inside the solenoid.

What force causes the plunger to return to its at rest position?

Magnetic Field Produced by a Solenoid Coil When the supply current is turned “OFF” (de-energised) the electromagnetic field generated previously by the coil collapses and the energy stored in the compressed spring forces the plunger back out to its original rest position.
