What is a meter manifold?

The M19 Meter Manifold is a three- or five-valve manifold specifically designed for use with orifice meters. The 3-valve manifold is used when the orifice meter is mounted adjacent to the orifice flange and the two process block valves provide convenient closure.

Where are gas meter manifolds found?

The meter/manifold shall not be located within 3 feet of any door or under and/or within 3 feet of any window or vent that opens. g. There MUST be at least 3 feet of clear and level working space maintained in front of the meter.

What is a gas manifold?

A cylinder manifold is a group of large gas cylinders, commonly used to supply gases via a pipeline to a building such as a hospital. Gas manifolds should be stored in an area separate from the main building. It should not be exposed to the environment and should be well ventilated.

What is standard gas pressure?

NIST uses a temperature of 20 °C (293.15 K, 68 °F) and an absolute pressure of 1 atm (14.696 psi, 101.325 kPa). This standard is also called normal temperature and pressure (abbreviated as NTP).

Is it illegal to move your gas meter?

No, moving gas meters is a difficult process, so it’s not something you can do yourself. It’s illegal for anyone but a qualified, licensed professional – such as a Gas Safe engineer – to change the meter’s position.

Can a meter be installed on a manifold?

For multiple meter installations, meters are installed on a manifold when practical. Multiple gas piping runs must be labeled by the Customer in a manner satisfactory to the Administrative Authority and CoServ Gas. The marking information must include the authorized suite, street number, designated building or part of the building being served.

How is a water meter fitted to a multiport manifold?

Water service pipe is connected to the inlet at the back of the manifold and the water supply is channelled to each of the outlets Each outlet has its own stopcock headworks and meter carrier so that a 1.1/2″ concentric water meter to BS EN ISO 4064 can be fitted

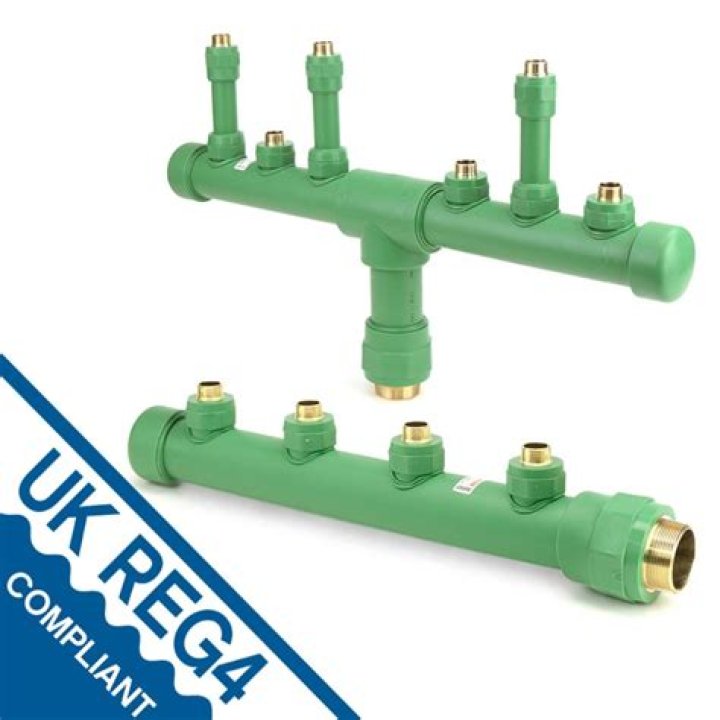

How many outlets does a multiport manifold need?

Our multiport manifolds are supplied with 4 or 6 outlets as standard. The 6 way manifold is designed to fit inside a 600mm x 450mm pit section. Working pressure 16bar. Our 4 and 6 outlet manifolds can be linked together and supplied with variations up to a maximum of 14 outlets. Working pressure 16bar.

When do you need multiple water meter fittings?

Ideal when single buildings require multiple water meters or when there are a number of dwellings built close together All critical parts are 100% tested for leakage before assembly to ensure you receive a quality product
