1 Answer. 1. JC : J From the word “Jod” – It means “Iodine” in German and indicates that it is a Halogen lamp. C From the word “Cine” Indicates that the primary application for lamp is Cinema but can include Optics & Projection & Other Markets.

What does JC mean in bulbs?

1 Answer. 1. JC : J From the word “Jod” – It means “Iodine” in German and indicates that it is a Halogen lamp. C From the word “Cine” Indicates that the primary application for lamp is Cinema but can include Optics & Projection & Other Markets.

What do the letters mean on light bulbs?

Bulb Shapes and Sizes The code number of a bulb consists of a letter or letters followed by a number. The letter indicates the shape of the bulb and the number relates to the diameter of the bulb in eighths of an inch. … The bulb is “A” type and the diameter would be 23/8″. A 65BR40 is a 65 watt reflector 5″ in diameter.

What is J type halogen?

The J type halogen bulb is a rod-shaped double-ended bulb with a voltage ranging from 12 volts to 270 volts. They come in small to medium sizes with lengths ranging from 3 inches to 16 inches. The J type halogen bulbs are commonly used to light up appliances like microwaves and ovens.

How do I know what type of halogen bulb I have?

If your bi-pin bulb measures 4 millimeters between pins, you have a G4 base bulb which comes in 6, 12, or 24 Volts. If your measurement is just a hair wider than 6 millimeters, you have a bulb with a G6. 35 base, which comes in 12, 24, or 120 Volts.

What is a G8 light bulb?

G8 and GY8 light bulbs are bi-pin bulbs with a gap of 8mm (millimeters) between the pin. … G8 Bulbs – pin length is 8 mm, where the GY8 pin is 8.5mm. The pin thickness is the same as 1 mm for both G8 and GY8 bulbs. For most applications, the pin length will not make a difference and you can use either G8 or GY8 bulb.

What does RSC base mean?

R: Reflector. RSC: a bulb base design used in halogen work lights such as the rightmost bulb shown in the photos above. The bulb shown is a 100-Watt 120-Volt lamp used in work lights and in outdoor security lights. SB: Silver bowl, which indicates that the bottom of the lamp is opaque and reflects the light upward.

How do I know what type of light bulb I need?

If you used to buy 100 watt bulbs, look for a bulb with 1600 lumens. If you used to buy 75 watt bulbs, look for a bulb with 1100 lumens. If you used to buy 60 watt bulbs, look for a bulb with 800 lumens. If you used to buy 40 watt bulbs, look for a bulb with 450 lumens.

Are t type and J type bulbs the same?

Both are halogen bulbs, and both produce pure white light. While the T-type is tubular and can act as a single unit, the J-type is double-ended and produces 300-watt power. T-type is more suitable as indicator lights and can endure for a longer period while J-type can be used for household utensils.

How do I know what kind of lightbulb I have?

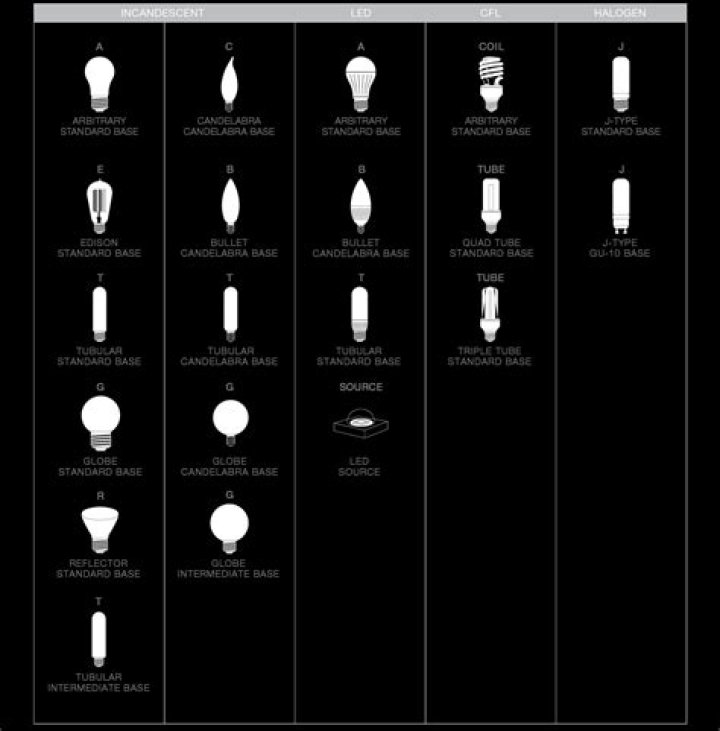

Bulbs shapes have an alphanumeric code. The letter tells you the general shape of the bulb and number tells you the width or diameter of the largest part of the bulb in eighths of an inch. For example, the common and well-known standard light bulb for a table lamp is also referred to as an “A19”.

Article first time published on

What are the codes for light bulbs?

• The A Group: A15, A19, A21, and A25.
• The G group: G11, G14, G16/G50, G60, G25/G80, G30.
• The B and C groups: B10, C7, C9, C15, CA10.
• The BR group: BR20/R20, BR30, BR40.

What is a Type S bulb?

Type S Light Bulb Type S doesn’t refer to the mount; rather, it indicates the shape. Type S light bulbs are shorter, rounder-shaped bulbs and can use the same mount as a Type A or Type B light bulb.

Is RSC base same as r7?

Short answer, Yes. Double Ended Recessed Contact (RSC Base) Halogen Light Bulbs comes with R7S base in 5 different sizes (lenghts) and T3 shape (tubular shape). Do not be confused, the “J” type and “T” type designation are one and the same. Hope it helps!

What does B stand for in light bulbs?

Dmitrii_Guzhanin / Getty Images. B can indicate one of three different shapes. When it is used by itself, though, it stands for bullet. A bullet light bulb is a cylinder with a rounded end, like a tubular incandescent bulb, but with a base that is smaller than the glass cylinder. A BR bulb is a bulged reflector bulb.

What is J Type T3 bulb?

T3 and J-type are just different characteristics of the same bulb-type. T3 stands for a tubular bulb that is 3/8th of an inch in diameter. J-type stands for a double ended halogen bulb. A complete description for such light bulbs should therefore read “T3 J-Type” plus the length in mm.

What is G9 bulb?

G9 halogen bulbs are light bulbs that have looped metal prongs instead of screw-in bases. … A G9 halogen bulb uses a two-looped prong base rather than an Edison screw socket.

Can you use a G4 bulb in place of a G9?

The compact, tapered design of Integral LED’s new G4 and G9 lamps allow them to fit easily into any existing G4 and G9 fittings, where earlier, bulkier LED lamps might have fit awkwardly or looked unsightly.

Are T4 and G8 bulbs interchangeable?

Answer: T4 is bulb size i.e. length and maybe diameter- 1.77″long (44.95mm). G8 is the base dimension – it has two pins, 1mm in diameter, and about 13mm or 13.5mm long (very close to 1/2 inch) and 8mm apart. … A T4 bulb may or MAY NOT HAVE a G8 base.

How long is a T3 light bulb?

These versatile halogen light bulbs are used in desk lamps, wall sconces, torchiers, security lighting, etc and are 78mm or 3 1/8″ long.

What is T4 bulb?

T4 tubes have a diameter of 13mm. They’re compact and easy to install making them perfect for illuminating kitchen counters and worktops as well as under cabinet lighting. These tubes will generally use between six and eight times less energy. This will save you money and help save the environment.

What is a 60 t bulb?

Special FeatureDimmableLight TypeIncandescentIndoor/Outdoor UsageIndoorWattage60 wattsLight ColorWarm White

What is the best light bulb wattage?

For a room with decent natural light, that should be around 60 watts. For a room with few/no windows, balance the 60 watt desk light with ambient overhead lights or bump that number up to 75 watts.

Does Watts matter when replacing a bulb?

Watts do matter when it comes to paying your electric bill. That’s because a watt is a unit of power. … Watts also matter when you’re choosing a light bulb to use in a fixture that has a maximum wattage limit or when you’re replacing one of the bulbs in a multi-bulb string, such as your Christmas tree lights.

What are the 4 types of light?

• Ambient lighting.
• Task lighting.
• Accent lighting.
• Decorative lighting.

What type of light bulbs are considered decorative?

Vintage & Decorative Light Bulbs Also known as Edison light bulbs, they are distinguished by the antique-style filament in the center. These types of light bulbs come in a variety of sizes and shapes. Other decorative light bulbs include candelabra bulbs that complement chandeliers, sconces and ceiling fans.

Can I use a type A bulb in a Type B fixture?

Thanks for your electrical question Ryan. The Type A Bulb is the most standard size, that being a larger base than a Type B. … That being the case, there are socket adapters to allow a Type B Lamp to be used in a Type A Socket, but not for a Type A bulb to be used in a Type B Socket.

What is a Type B light tube?

Type B LED tubes are fluorescent ballast bypass LED linear lamps. Type B lamps are also known as line voltage lamps. These tubes have an internal driver built into the lamp and are intended to be directly wired to the power source bypassing the ballast.

What is an rs7 bulb?

Double Ended R7 Halogen Light Bulbs. … These R7 halogen lights are versatile, long-lasting and can be used for a wide variety of lighting applications, including those that use timers to control lights. Choose from different sizes, including 3-1/8, 4-11/16, 7-1/2 and 10-1/6-inch options.

What does a type B light bulb look like?

What Type B Bulbs Look Like. Sometimes known as “candelabra bulbs,” Type B bulbs are bullet or flame-shaped, smaller in size and carry less wattage than other bulbs. Some Type B bulbs buldge at the base and get thinner as they reach the tip, while others retain the same narrow shape from bottom to top.

What size is a Type B light bulb?

Type B Series Light Bulbs. Length: 1.5 in. – Height: 4.33 in. – Width: 1.5 in.

What is E12 Type B bulb?

With an E12 base, they can fit into most types of lighting fixtures. Ideal for pendant lighting, wall sconces, indoor or outdoor decoration. Bulb Type: Incandescent. Total Number of Bulbs: 6. Bulb Base: E12/Candelabra.
