electrical fittings means electric lines, fittings, apparatus and appliances de- signed for use by consumers of electricity for lighting, heating, motive power and other purposes for which electricity can be used; Sample 1.

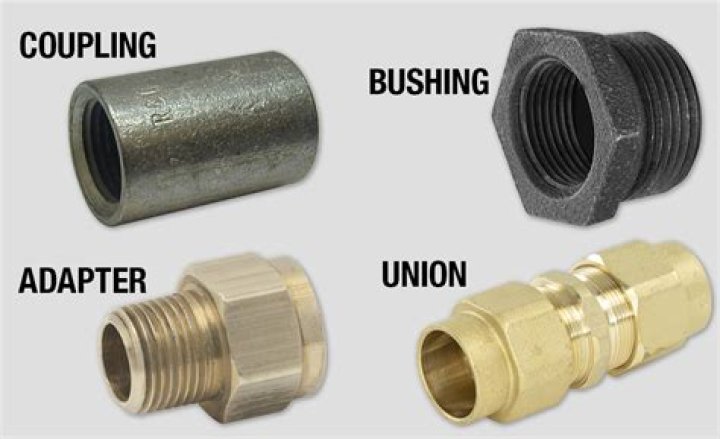

What are the types of electrical fittings?

• Conduit Bodies. These are tubular units with openings at each end for admitting conduits, and providing access to the wires. …
• Bends. …
• Coupling. …
• Drains. …
• Bushings and Locknuts. …
• Unions. …
• Nipples and Hubs. …
• Reducers and Reducing Washers.

What fitting is used between 2 conduits?

Couplers are used to join two lengths of non-flexible conduit together. Use a metallic coupler with metal conduit. Metallic couplers are available in both set screw and compression styles.

Which of the following is used in electrical fittings?

Explanation: Bakelite is a thermosetting plastic which is used for making electical fittings.

What are electrical fittings and accessories?

“The items used in domestic and industrial electrical wiring are called electrical accessories, e.g., switch, holder, socket, plug-top, ceiling rose, fuse cut-out etc. A switch is used to make a circuit ON and OFF. A holder is used with a lamp, a ceiling rose is used with a ceiling fan, tube light or a pendant lamp.

Why is earthing necessary?

Earthing is used to protect you from an electric shock. It does this by providing a path (a protective conductor) for a fault current to flow to earth. It also causes the protective device (either a circuit-breaker or fuse) to switch off the electric current to the circuit that has the fault.

Why do we use conduit?

Conduits are used to provide extra protection for electrical wires. Conduit protects both humans and the electrical wiring to prevent wires from pulling loose and creating shock hazards. It’s important to use conduit even for buried wires to prevent damage to wiring from digging and moisture.

Are conduit fittings necessary?

Certain conduit fittings may be required at various points in an electrical system for grounding or service access. Tip: Consult local building and electrical codes when considering applications. Regulations may require you to use specific types of conduit fittings. A permit may also be necessary to begin work.

What material is used to hold connections inside the box?

Rat Tail or Pig Tail – kind of joint is commonly used to join two or more conductors inside the junction box. It is suitable for service where there is no mechanical stress when wires are to be connected in an outlet box, switch, or conduit fitting.

What are EMT fittings?

EMT fittings are zinc plated and made from SAE 1006 steel and contain nylon insulating bushings. EMT fittings are similar to conventional EMT fittings both using either set-screw or compression rings to secure EMT pipes. … Compression type is concrete-tight while set screw is concrete-tight when properly taped.

Article first time published on

How many wires can be in a plastic conduit?

Size and Type of Conduit14 AWG Wire12 AWG Wire3/4-inch PVC—Sch 4021151-inch PVC—Sch 4034251 1/2-inch PVC—Sch 4082591/2-inch PVC—Sch 8096

What does LL conduit stand for?

If the removable cover is on top or on the back of the conduit body, it is an LB, with the “B” standing for “back.” If the cover is on the left side of the conduit body, then it is an “LL,” the “L” standing for “left.” If the cover is on the right side of the conduit body, then it is an “LR,” with the “R” standing for …

What are the various accessories and part of installation in electrical installation?

• Switch. We know that we can on and off an electrical supply with the help of a switch, which makes it one of the most common and important electrical accessory. …
• Main switch. …
• Sockets and plugs. …
• Lamp holder. …
• Fuse. …
• Circuit breaker.

What is conduit installation?

An electrical conduit is a tube used to protect and route electrical wiring in a building or structure. … Most conduit is rigid, but flexible conduit is used for some purposes. Conduit is generally installed by electricians at the site of installation of electrical equipment.

Can I use PVC as electrical conduit?

Yes, technically, PVC pipe can be used as a conduit. In fact, grey PVC pipe is manufactured precisely for this purpose. You could use PVC made for water since it’s basically the same thing but with a different gauge (thickness). It might not pass an electrical inspection but would work.

What are electrical clamps?

In electrical and electronic engineering, a current clamp, also known as current probe, is an electrical device with jaws which open to allow clamping around an electrical conductor. … Hall effect and vane type clamps can also measure direct current (DC).

Which type of earthing is best?

Plate earthing is the best earthing.

What is double earthing?

Why Double Earthing? … The two points earthing provides two parallel path for earth fault current. The two parallel path is connected to two separate earth points. Thus the equivalent resistance of the two parallel path gets reduced and it offers low resistance path to the fault current.

What happens if an appliance is not earthed?

Earthing. Without the earth wire, if a fault occurs and the live wire becomes loose, there is a danger that it will touch the case. The next person who uses the appliance could get electrocuted . … As a result, the casing cannot give an electric shock, even if the wires inside become loose.

What are the 5 electrical supplies?

• Electrical Conduit and Conduit Fitting. Electrical Conduit is a tube that carries electrical wire for power or communications. …
• Electrical Wire and Cable. …
• Explosion Proof Enclosures. …
• Circuit Breakers. …
• Electrical Connectors. …
• Electrical Box. …
• Lugs. …
• Motor Control.

What are the most commonly used electrical supplies and materials?

• Fish tape. …
• Tape measure. …
• Voltmeter or testing unit. …
• Hammer. …
• Wire strippers. …
• Non-contact voltage detector.

Which tool is used to attach connectors to wires?

Crimp-on connectors are attached by inserting the stripped end of a stranded wire into a portion of the connector, which is then mechanically deformed by compressing (crimping) it tightly around the wire. The crimping is usually accomplished with special crimping tool such as crimping pliers.

When should I use conduit electrical wiring?

Conduit typically is used only where circuit wires are exposed (or surface-mounted or buried) and therefore need protection from damage or moisture. Conduit offers protection to electrical wires that run in exposed locations.

How do you hold conduit in place?

Large slip-joint pliers are all you need to hold conduit firmly in place while you cut it. Clamp the conduit to a workbench, sawhorse or even a wooden ladder step with pliers. Then mount a sharp, 32-tooth-per-inch hacksaw blade in your hacksaw frame and cut the conduit.

How do you connect PVC electrical conduit to metal conduit?

When joining metal and PVC conduit, use a male threaded fitting on the PVC and threaded female coupling on the steel. I prefer to thread plastic into metal to prevent cracks in the plastic.

How do I attach conduit to my house?

Attach the conduit onto the side of the house with a drill, the appropriate screwdriver bit and self-tapping screws. Use PVC straps placed at 24-inch intervals. Both boxes and the conduit will shield the wiring from the elements for the life of your house.

What's the difference between a connector and a coupling?

What’s the difference between a coupling and a connector? … Couplings use offsets. B. Connectors are used to join conduit to a box.

Is a compression connector a wire connector?

Compression Connectors are connectors which are “attached” to conductors with the use of compression tools and dies. Other attachment options are solder,mechanical capture, and pin-connection. … Generally, they force dies to reduce the containing space of conductor and cable toward homogeneity.

How many cables can you fit in a 25mm conduit?

Depends on the percentage fill factor of the conduit, but 25mm conduit has an internal area of 490sqmm and 2.5sqmm conduit wire has an area of 11.2sqmm so as a simple calculation of area, that equates to 43 cables, but Selection & Erection Guide will give a more definitive guide.

How many cables can you fit in a 20mm conduit?

Table 4.16 – Conduit factors (terms)Length of run between boxes (m)16mm1779720mm28615925mm514292

What type of wire can I run in conduit?

The most common type of cable used in home wiring is non-metallic (NM), or Romex, cable. While NM cable can be run inside a conduit, this is seldom done. The types of wire most commonly installed inside of conduit are THHN and THWN. THHN/THWN wires are individual, insulated, and color-coded wires.
