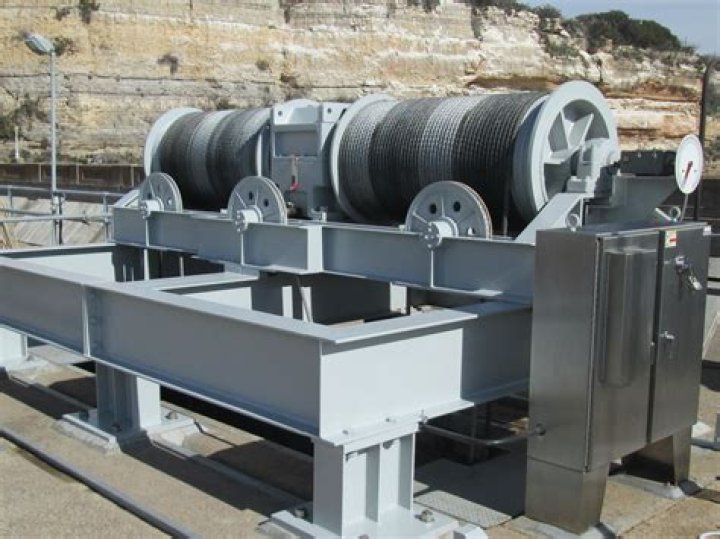

Drum hoists are the most common type of hoist used in North America, South Africa and South America. … Drum hoists are mounted on concrete slabs within a hoistroom, the hoisting ropes run from the drum, up to the top of the headframe, over a sheave wheel and down where they connect to the conveyance (cage or skip).

What does the hoist do?

A hoist is a device used to lift or move material. The lifting force is provided by a drum (or wheel) on which wraps a rope (wire or fibre) or a chain. There are different types of hoists – Electro-hydraulic, manual or lever operated, base mounted, or pendant cranes.

What is a chippy hoist?

Chippy – The hoist used for men and materials, rather than ore. Collar – The point at which a shaft intersects the surface or underground haulage level. Crosscut – A level tunnel driven across the mineral vein. … Face – The end of the drift, crosscut, or tunnel, generally where the miners work.

What is a hoist in a mine?

MINE HOIST TYPES There are two basic types of mine hoists available in the world today: the drum hoist, on which the hoist rope is actually stored during the hoisting cycle, and the friction (Koepe) hoist, which merely passes the rope over the wheel during the hoisting process.

What is a load hoist?

A hoist is a device used for lifting or lowering a load by means of a drum or lift-wheel around which rope or chain wraps. It may be manually operated, electrically or pneumatically driven and may use chain, fiber or wire rope as its lifting medium. … Most hoists couple to their loads using a lifting hook.

How do construction hoists work?

Traction hoists work with suspended scaffolding to raise and lower the scaffolding. These are smaller and can be easily moved around the job site for use in different areas. They are created in varying sizes with different weight capacities.

How does electric hoist work?

Electric chain hoists use a load chain as the lifting medium. The load chain is pulled by a motor that converts electrical energy to mechanical energy used to lift the load. … A hook is attached to the end of the load chain that grabs the object. To commence the lifting operation, the worker switches on the hoist motor.

What are two parts of lift that go down a mine called?

The two parts of lift that go down a mine are called Hoist cable and Sheave wheel. … A sheave wheel is also called a pulley wheel.

How fast must the cage and skip travel?

This distance is as little as 40 cm, and the conveyances travel at a speed of 55 km/h. The skip, cage and the 33-tonne counterweight are of ABB´s well proven design. The skip, with a payload capacity of 21.5 tonnes, is designed to ensure fast, automatic loading and dumping.

What is the most expensive mining method?

Underground mines are more expensive and are often used to reach deeper deposits. Surface mines are typically used for more shallow and less valuable deposits. Placer mining is used to sift out valuable metals from sediments in river channels, beach sands, or other environments.

Article first time published on

What does a headgear of a mine do?

Mine headgear constructions support wheel mechanisms for suspending winding cables that transport workers and ore up and down deep level shafts. These strange anthropomorphic structures have become the iconic symbol for mining.

What is the difference between two mine winches?

So what are the differences between the two? The biggest difference is that a hoist is designed to both lift and lower a load, whereas a winch is designed to pull a load – and depending on design, hold it in place.

What are mine winches?

Mine winch is specifically designed for mining operations. It is mainly used to lift or haul coal, copper, silver, iron, zinc and other minerals. … This machine can be installed in or outside the mine to perform winching operations. The equipment can also be custom designed and built to meet your diverse needs.

What's the difference between a hoist and a crane?

The main one is their range of movement. Hoists can only move loads up and down, while cranes can move loads up and down and side to side. In the latter, a hoist serves as the component that provides vertical movement, while a trolley and bridge serve as the components that enable horizontal movement.

What is the main difference between a hoist and a crane?

A hoist is a device used for lifting and lowering loads while a crane is a device used for moving loads in different directions. 2. A hoist is a simple device while a crane is a more complex device.

What is a trolley hoist?

The trolley is the mechanism that moves the hoist along the bridge girder of a crane. The hoist is moved horizontally along the top or underside of the bridge girder to position it above a load (Figure 1, Motion 2). There are three types of trolleys: low headroom, normal headroom and double girder trolley.

What are the different types of hoists?

• Pool hoists.
• Bath hoists.
• Hoist slings.
• Ceiling hoists.
• Mobile hoists.

What are some examples of different types of hoists?

• Hand Chain Hoists. …
• Lever Hoists or Ratchet Hoists. …
• Lineman’s Hoist. …
• Electric Chain Hoists. …
• Electric Wire Rope Hoists. …
• Air Chain Hoists. …
• Air Wire Rope Hoists. …
• Hook-Mounted Hoist Suspension Systems.

How do overhead hoists work?

A hoist is a device that can consist either of a static or a mobile frame. This frame is composed by a lifting mechanism powered by battery, which reduces the need of lifting a person manually. It can be used to lift people, help them to stand and move, and transfer them in and out of bed, bath, or chair.

What does hoist sail mean?

DEFINITIONS1. to raise a flag or sail to its highest position on a pole.

At what height do you need a manlift?

Construction Safety Order §1630 requires employers to install and operate CPHs during construction of buildings which are 60 feet high or 48 feet deep. The primary purpose of the hoist is to reduce the amount of climbing for workers and provide easier access for medical emergencies.

What is the problem of mining headgear?

The shaft goes straight down into the ground under the wheels of the headgear, sometimes kilometres deep. One of the problems with mining is that eventually the ore, or metal, will run out. When this happens to a very big mine, what is left are many kilometres of underground tunnels.

What is a steel headgear?

A steel headgear consisting of two heavy plate A-frames, set astride the shaft mouth. They are braced together and carry the heavy girders that support the winding sheaves platform. A number of these headgears have been erected in the Republic of South Africa. …

What is the difference between steel headgear and concrete headgear?

Concrete headframes provide an enclosure upon construction, whereas steel headframes require cladding and insulation to protect from weather. Concrete headframes are less susceptible to vibrations and sway less during high winds.

What has been used to stop the head frame from being pulled over by the winch?

The left “legs” of the head frame slope towards the hoist. This is due to the tension in the cable pulling the whole frame in that direction. The sloping legs prevent the head frame from toppling or falling over.

What happens in the winding house of a mine grade 8?

Part 1: The winch or hoist is in a winding house. This part of the system is used to wind or unwind the steel cable. … The mine cage and the skips are lowered into the mine when a steel cable unwinds from the winch. The mine cage and skips are raised when the steel cable winds up again.

Do you think I beams are a good thing to use for head frame supports Why?

I beams are the choice shape for structural steel builds because of their high functionality. The shape of I beams makes them excellent for unidirectional bending parallel to the web. The horizontal flanges resist the bending movement, while the web resists the shear stress.

What is the hardest ore to get?

What is the hardest ore to find in the world? Scientists have calculated that wurtzite boron nitride and lonsdaleite (hexagonal diamond) both have greater indentation strengths than diamond. Source: English Wikipedia. (PhysOrg.com) — Currently, diamond is regarded to be the hardest known material in the world.

What is the hardest ore to mine?

Diamond is the hardest natural material known, where hardness is defined as resistance to scratching and is graded between 1 (softest) and 10 (hardest) using the Mohs scale of mineral hardness.

What is the rarest ore to mine?

Emerald Ore is the rarest ore to date in Minecraft (25 times more so than Diamond Ore, while almost always spawning in only one-block veins). When mined (with an Iron Pickaxe or higher), it drops an Emerald; the only implemented use of Emeralds to date is for trading with Villagers.

What is the top of a mine shaft called?

The most visible feature of a traditionally-built mine shaft is the headframe (or winding tower, poppet head or pit head) which stands above the shaft. Depending on the type of hoist used, the top of the headframe will either house a hoist motor or a sheave wheel (with the hoist motor mounted on the ground).
