What is a coupler on a hot water heater?

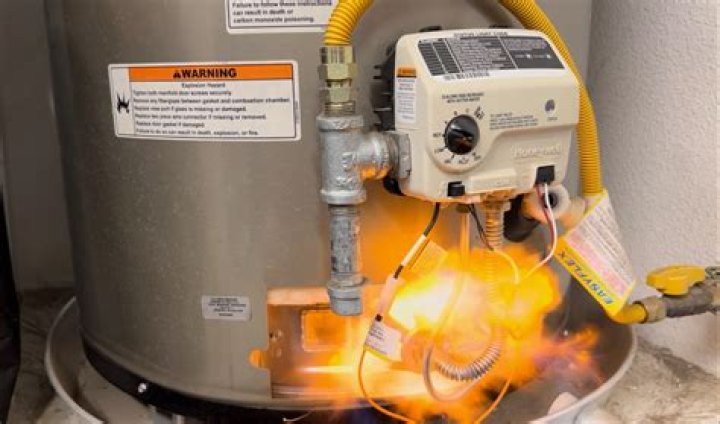

The thermocouple is part of the pilot burner assembly and connects to the gas control valve on the outside of the water heater. It is a simple device that converts the heat from a burning flame into a small electrical current, allowing it to work like a switch to control the flow of gas from the gas supply valve.

Are thermal couplers for water heaters universal?

Universal Thermocouples. Universal thermocouples, as the name implies work on most water heaters. They are available online and in home supply stores for a reasonable cost. The length and the thread type are the two concerns when purchasing one.

How do I know what thermocouple I need?

After about a minute, when you’re sure the probe has gotten hot, place one lead on the shaft of the thermocouple and the other lead on the connector. If the reading is less than 25 millivolts, the thermocouple is bad and needs to be replaced.

How does a thermocouple work on a water heater?

Can you change the thermostat on an electric water heater?

Replacing the thermostat of an electric water heater isn’t rocket science, in fact, it’s very easy. But one thing you should always keep in mind that, switch off the power supply before starting replacement to avoid adverse circumstances. If you want the extra hot water then you are advised to change both thermostats even if only one is damaged.

Where is the thermostat on a hot water heater?

One is at the top and the other is at the bottom. Both of them control their respective heating elements. The upper thermostat must be damaged if your water heater is giving cold water after turning on the hot water tap and if the outlet water is getting cold after some time then the lower thermostat is damaged.

How does a capillary thermostat work in a water heater?

Bulb thermostats are also referred to as ‘capillary thermostats’. They operate through the use of expanding liquid. This liquid is contained in the bulb and it increases in volume, thereby, causing the heat to be produced by the heating elements. Bulb thermostats are known to be just as reliable and precise as stem thermostats.

How do you replace a water heater thermocouple?

Then detach the thermocouple from the burner and take it with you to the home center or hardware store to ensure you buy the right replacement. First, shut off the gas valve on the water heater and the gas valve on the gas line near the heater. Then unfasten the three nuts that hold the thermocouple and the two gas tubes to the valve.

Can a bad thermocouple cause a water heater not to burn?

It is, therefore, a key safety element of your water heater system. Often a bad thermocouple is the reason why a water heater pilot does not ignite or a burner does not stay lit. Continue to 2 of 8 below. The type of ignition system you have in your water heater will determine how you replace the thermocouple.

Can a single thermostat be used on a water heater?

Alternatively, you can adjust the upper element to a lower temperature thereby allowing the one underneath to activate first. For water heaters that have smaller tanks (a maximum of 30 gallons), a single thermostat and heating element handle temperature control.

How to change the thermostat on an RV water heater?

A quick how to on changing the thermostat on the RV water heater. Most RV water heaters are set at 140 degrees … a tad too hot. Category Autos & Vehicles.
