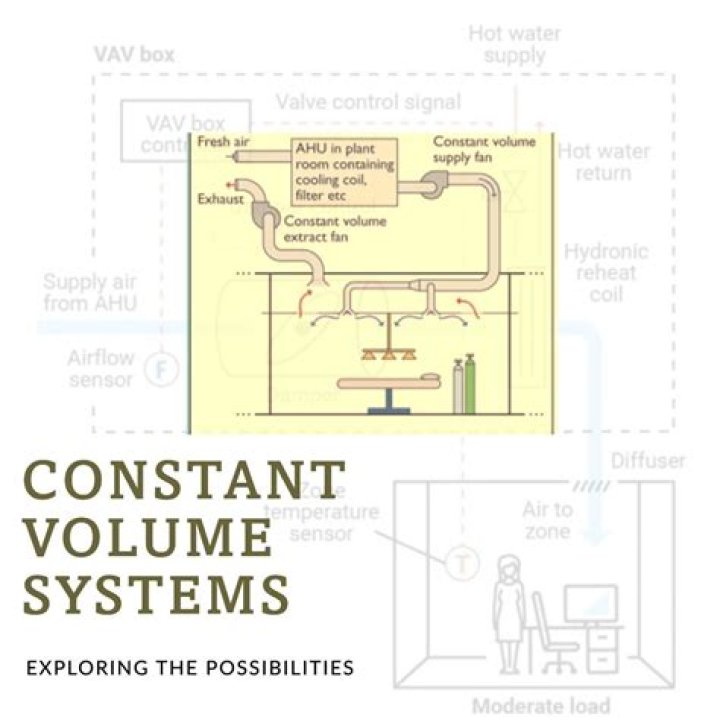

Constant air volume (CAV) is a type of heating, ventilating, and air-conditioning (HVAC) system. In a simple CAV system, the supply air flow rate is constant, but the supply air temperature is varied to meet the thermal loads of a space.

What is a constant volume VAV box?

$0.00. EB Air VAV box is a twofold operation HVAC system, CAV (constant Air Volume) which supply a constant airflow at a variable temperature whereas VAV (Variable Air Volume) system varies the airflow at a constant temperature.

What is CAV and VAV in HVAC?

From Wikipedia, the free encyclopedia. Variable air volume (VAV) is a type of heating, ventilating, and/or air-conditioning (HVAC) system. Unlike constant air volume (CAV) systems, which supply a constant airflow at a variable temperature, VAV systems vary the airflow at a constant temperature.

What is difference between VAV and CAV?

HVAC engineers can choose between CAV and VAV systems depending on the application. While a CAV system uses variable air temperature and constant airflow, a VAV system keeps constant temperature and variable airflow.

How a CAV box works?

A CAV unit operates the fan and compressor at full capacity until the temperature drops to a specified setting, then the compressor turns off. The on/off cycling is not efficient at keeping the space at a constant temperature. CAV systems are small and serve a single thermal zone.

What does VAV stand for?

Variable Air Volume (VAV) is a type of heating, ventilating, and/or air-conditioning (HVAC) system. The simplest VAV system incorporates one supply duct that, when in cooling mode, distributes approximately 55 °F (13 °C) supply air.

What is a VAV box used for?

The VAV box regulates the volume of the air to the zone by opening or closing a damper, therefore controlling the volume of air in a specific zone.

Do VAV systems use water?

Advantages of VAV systems include the following points: VAV systems are very cost effective from a chilled-water and heating-water-pumping perspective. … This is because there is no chilled water coil at the VAV terminal and, where non-fan powered VAV terminal are used, there is no filter at the unit.

What is the difference between VAV and VFD?

VAV boxes, which adjust airflow for individual zones using dampers. Fan speed controls. Variable-frequency drives (VFD) are normally used for fan motors above 1 hp, while electronically commutated motors (ECM) offer built-in speed control in fractional horsepower applications.

Why is VAV more energy efficient?

Most buildings operate the majority of time in turndown and it is during turndown that VAV systems save energy because they match the reduced loads – both the exterior loads, such as temperature and solar, and the interior loads of occupancy, plugs, and lighting. Also the energy penalty of reheat is during turndown.

Article first time published on

What are the different types of VAV boxes?

There are two primary types of VAV systems—single-duct and dual-duct.

Do VAV boxes have fans?

The fan-powered VAV is built the same as the traditional, but it also contains a fan which is triggered when the area reaches optimal temperature or the damper is 50% closed. Also called a parallel fan-powered terminal unit, it provides additional air circulation when there is less demand for conditioned air.

Do VAV boxes have filters?

Filter (for fan-powered boxes) – usually included when a fan draws into the VAV box from the plenum or other return-air source.

Where is CAV system used?

Typical Uses CAV systems are usually used in spaces with large open areas, few windows and uniform loads. Examples of theses types of spaces include lobbies, department stores, theaters, auditoriums and exhibition halls.

What is a dump zone in a zoned air system?

Dump zone – a room or rooms where the duct does not have a damper and will receive air flow any time the hvac system is running.

Does a VAV box need power?

POWER SUPPLY IS INSTALLED ARE NOT REQUIRED WHEN THE ENCLOSURE & BACKPLATE LOCATION(S). NUMBER OF BOXES & MECHANICAL CONTRACTOR FOR SUPPLY(S). COORDINATE WITH SUPPLY & INSTALL POWER MECHANICAL CONTRACTOR TO VAV BOX 24V POWER SUPPLY(S).

What is a series VAV box?

In a series fan-powered variable air volume (VAV) system, each zone is conditioned by a box with a small fan that draws-in plenum return air and mixes it with supply air from a primary system. The primary system is similar to variable air volume (VAV), with the primary air supplied at a fixed temperature.

What is VAV terminal load?

Variable air volume (VAV) systems control the dry bulb temperature inside a zone by varying the supply air volume instead of the air temperature. At full cooling the VAV terminal unit damper is fully open supplying the specified maximum design air flow rate.

What is HVAC VFD?

The most common HVAC definition of a Variable Frequency Drive describes it as an electrical device used as a fan accessory to increase and decrease the rotations per minute (RPM) of an alternating current (AC) motor. The VFD adjusts the electrical power frequency supplied to the motor to vary system airflow.

How low can you run a VFD?

Generally speaking, TEFC motors are not designed to operate at less than a 4:1 speed range, while some manufacturers make a 10:1 or 20:1 range motor. Most often, operating the motor slower than this requires an auxiliary cooling system. This threshold can be higher depending on the torque the motor is providing.

How do VAV units work?

VAV stands for Variable Air Volume. In its simplest form, VAV systems use varying airflow at a constant temperature to heat and cool buildings. This is opposite of a CAV (or Constant Air Volume) system, which supplies consistent air flow at varying temperatures to heat or cool a space.

What is night purge ventilation?

What is night cooling or passive cooling? Also called night purge ventilation or night flushing, it uses the building’s thermal mass as a sink during the day as it absorbs heat gains from occupants, equipment, and the sun.

Is a fan coil unit a VAV?

VAV fan coil units operate differently. Rather than use an AC motor, the fan is driven from an electronically commutated (EC) motor so its speed can be varied simply by adjusting the voltage. This is the key to the energy savings, because the power required by the fan changes as a cube of the flow induced by it.

How long does it take to install a VAV box?

The estimated installation rate is 3.5 man-hours17.

What control strategy saves energy in a VAV system?

The optimal start strategy reduces the number of system operating hours and saves energy by avoiding the need to maintain the indoor temperature at occupied setpoint even though the building is unoccupied. A related strategy is optimal stop.

How energy saving is achieved in the variable air volume system?

A Variable Air Volume system is a type of air-handling system that changes the amount of airflow in response to changes in the heating and cooling load. … Conversely, when warming is required the damper closes to lower cool airflow into the space and reduce air handler fan power to save energy.

What is the difference between a parallel and series VAV box?

Recall that in the series unit configuration, the central system needs only to move air to the unit. With a parallel configuration, the central system must now move the air not just to the unit, but all the way through to the room outlets.

How many types of Ahu are there?

There are three basic types of an air handling unit. When trying to decide on the purchase of custom air products, Houston residents should choose from the following: Terminal units: Include only an air filter, coil and blower. Simple terminal units are often called fan coil units or blower coils.

What is the primary temperature you would expect to find on a VAV air conditioning system?

The main duct for a typical VAV system provides cooling only (at approximately 55°F). This is called primary air. Room thermostats control the amount of primary air delivered to each zone through modulating dampers for each zone.

What is the terminal reheat system?

A type of air handling system commonly integrated with CAV and VAV systems that maintains comfort in a building by cooling the air at the air handling unit and then reheating the air near its point of use.

What is the purpose of the hot and cold decks on a multizone system?

What is the purpose of the hot and cold deck on a multi zone system? They provide simultaneous, hot and cold air. Can he and cool at the same time using a single air handler? By transferring heat between the ventilation, air and exhaust air.
