Bond beams are a horizontal feature embedded in a wall to add support to the structure. The bond beam is made up of specialized blocks that are filled with grout to hold a sturdy steel bar in place. They add steel reinforcement to structures that might need more than just traditional CMUs to hold it up sufficiently.

What is a bond beam concrete block used for?

Bond beams are courses of block constructed with special units designed to receive horizontal reinforcement and grout. These units are used to integrate the horizontal reinforcement with vertical reinforcement bars in a reinforced masonry wall.

What is a CMU structure?

A concrete masonry unit (CMU) is a standard-size rectangular block used in building construction. CMUs are some of the most versatile building products available because of the wide variety of appearances that can be achieved using them.

What is a bond block?

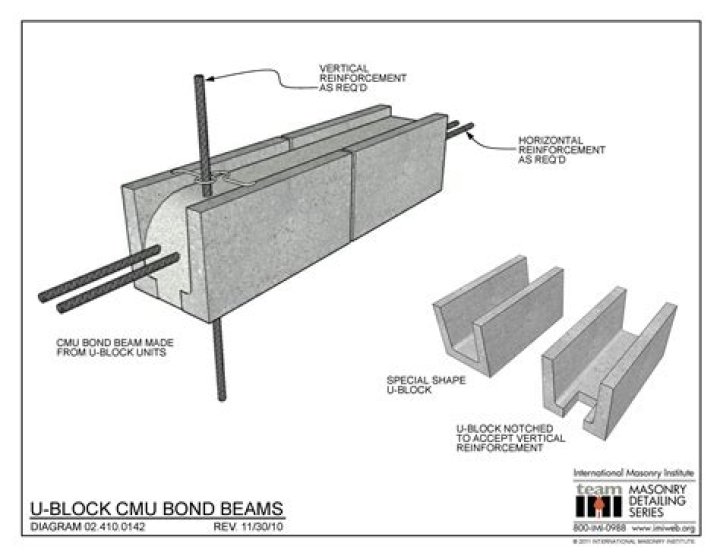

Bond beam blocks are horizontal concrete masonry units in which the web portion have cuts or holes to access vertical reinforcement. They may be U-shaped or sometimes they may come up with knockout sections which can be removed while using. Bond beams are placed in courses in masonry walls to construct a bond beam.

When would you use a CMU bond beam?

You can often find bond beams at the top of a freestanding wall or as anchorage on a floor or roof. They can help distribute the weight evenly across the wall and protect against strong winds, earthquakes and more. Pools, garages and barns also make frequent use of CMU bond beam blocks.

How far can a bond beam span?

BUILDING WIDTH (FT)BOND BEAM 8″ THICK WALL1, 2, 4MAXIMUM ALLOWABLE CLEAR SPAN (FT-IN)54310-813-4128-810-8246-07-4

How often do you need bond beams?

Bond beams are sometimes arbitrarily placed in walls as a stiffening or tie element, and are recommended at tops of walls, floor connections, and top of foundation walls. Intermediate bond beams are normally not necessary unless required to resist shear stresses or to fulfill minimum seismic reinforcement requirements.

What is the tie beam?

What Is Tie Beam? The beam which connects two or more columns or rafters in a roof or roof truss or in any height above floor level to make the whole structure more stiff and stable at the foundation level is called tie beam. Tie beams are mainly provided at roof truss and floor level and a plinth.

What is bond beam elevation?

A raised bond beam, or RBB, is a wall on your pool that extends above the surface of the water. It usually ranges from 6 inches to 3 feet in height. Not only does it add depth and dimension to your pool and yard, but it also supports the pools integrity with reinforced rebar.

What is a bond beam lintel?

Lintel blocks The Bond beam blocks are the horizontal concrete masonry units. Lintel block is a structural horizontal block which is provided on the opening between the two vertical supports. 2. Bond beam blocks are useful in areas with high seismic activities.

Article first time published on

What is lintel beam?

A lintel or lintol is a type of beam (a horizontal structural element) that spans openings such as portals, doors, windows and fireplaces. It can be a decorative architectural element, or a combined ornamented structural item.

What is a bond beam pool?

A bond beam is a thick course of concrete that fills in the space along the top of the pool, all the way around the perimeter. It creates a barrier between the pool and the surrounding dirt. The bond beam is quite thick – at least a foot or more wide – and it is reinforced with rebar and other materials.

Is Brick a CMU?

Concrete Masonry Unit (CMU) Specifications Concrete brick is made from concrete similar to concrete block, but concrete bricks are fabricated in sizes that match traditional clay bricks (i.e. 2 2/3″ tall). The weight of concrete masonry units varies depending on the density of concrete mix used.

How high can you build a CMU wall?

It is not uncommon to create designs with an h/t from 32 to 50. That could produce wall heights of up to 33 feet for walls built with 8-inch concrete masonry units (CMU), 41 feet for 10-inch CMU, and 50 feet for 12-inch CMU. Regionally, 14- and 16-inch CMU are available, which extend possible wall heights even further.

Is CMU a good insulator?

CMUs are a good sound-proofing material. Insulated CMUs provide an R-value compliant with climate zones 1-5, according to the ASHRAE 90.1, which reduces energy use, saves money, and is good for the environment.

What is a concrete grade beam?

A grade beam or grade beam footing is a component of a building’s foundation. It consists of a reinforced concrete beam that transmits the load from a bearing wall into spaced foundations such as pile caps or caissons.

What is mortar workability?

WHAT IS WORKABILITY? To obtain a workable mix, the laborer needs to add enough water to produce mortar that is “fat” and “sticky” and will resist the removal of substantial amounts of mixing water by the suction of the units. Workable mortar is easy to fluff up with peaks like whipped cream.

How much rebar is in a bond beam?

The bond beam consists of a block with a channel in the top of the block, similar to the one shown in Figure 6-1. The rebar is placed in the channel, and the cells of the blocks are grouted solid. A typical bond beam consists of two #4 bars.

What is a jamb block?

A concrete masonry unit which has an end slot (rabbet) for use at an opening to receive a jamb.

What is 4 bar bond beam?

4. Bond Beam / Raised Bond Beam. The bond beam is the very top, horizontal element along the perimeter of an inground pool. Typically, it’s about 12 inches wide and reinforced with extra steel rebar, because the top sections of a pool require extra support.

What is the side of a pool called?

If an in-ground swimming pool is constructed of concrete, it will need coping, which is a cap for the edge of the pool. Besides simply being necessary, the coping provides an opportunity for a decorative accent, which can greatly enhance the appearance of the pool.

What comes after pool rebar?

Rebar is once again, added for extra strength, it is actually dowelled into the gunite shell at points around the pool perimeter. Depending on your choice of decking (plain, exposed aggregate, pavers or stamped, sundek, stone, travertine etc.) the concrete must be poured into place first.

What is the difference between beam and tie beam?

The main thing that makes these two different is that the plinth beam is constructed at the plinth level and the tie beam is constructed at the elevation or above the plinth level. The construction procedure for these both is same. Both are designed according to the project requirements.

What is difference between tie beam and plinth beam?

The beam which connects two or more columns/rafters in a roof/roof truss or in any height above floor level is called tie beam. … The beam which is provided at the plinth level is called plinth beam. In farmed structure, this beam is the first beam constructed after foundation.

What is the difference between tie beam and strap beam?

Tie beam is provided when the two footings are in the same line. Strap Beam(inclined beam) is similar to tie beam but it connects two footings at a certain angle. Strap beam is laid when two footings are in different levels. Tie beam/ Strap beam are specifically located between pile caps and shallow foundations.

Are lintel and beam same?

Both lintel and beam are an example of the same. … Though both the lintel and beam are horizontal or flexural member, yet they both are different from each other according to their structural behaviour, load carrying mechanism and the purpose for which they are used.

Can we remove lintel beam?

Lintels are the only horizontal frames available in the building which has the capacity to resist any vibrations. This will be absent if we remove the lintel and replace it with a steel beam separately at the roof level.

What is door beam?

The door intrusion beam is located in the door shell and behind the door skin. The door intrusion beam is important because it provides occupant protection in a side-impact collision. If the intrusion beam is damaged in any way, it must be replaced.

How thick should a concrete slab be for a pool?

To be structurally sound, a concrete pool shell should generally be 6 inches thick. Depending on the engineer and the soil condition, it may be more. (On top of that, the plaster interior finish should be at least ⅜ inch thick.)

What is the concrete area around a pool called?

The hardscape area around your swimming pool is called a surround, deck, or decking, even though it isn’t always made of wood or composite, like traditional outdoor decks with which we most often associate the words. Traditionally, most in-ground swimming pool decks are made of concrete.

Is CMU the same as cinder block?

Concrete masonry units are colloquially known by many names, most predominately “concrete block”, “cinder block”, “CMU”, or simply “block”. … The reality, however, is that these masonry units are essentially the same product produced with the same three basic constituent materials: water, cement, and aggregate.
