In aeronautics and aeronautical engineering, camber is the asymmetry between the two acting surfaces of an airfoil, with the top surface of a wing (or correspondingly the front surface of a propeller blade) commonly being more convex (positive camber). An airfoil that is not cambered is called a symmetric airfoil.

What is a cambered aerofoil?

Camber is defined as the convexity of the curve of an aerofoil from the leading edge to the trailing edge.

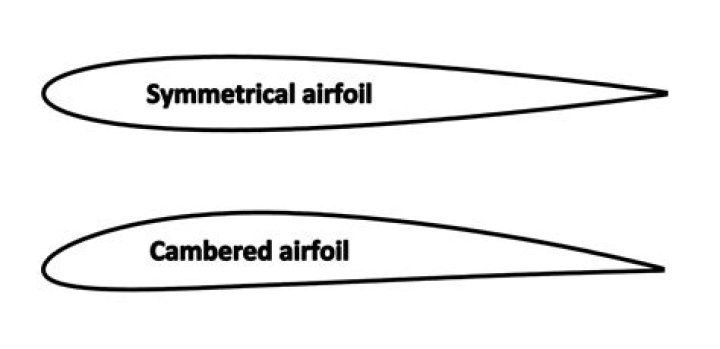

What is the difference between a symmetric and cambered asymmetric airplane wing?

In a cambered airfoil, the aerodynamic center and center of pressure are not at the same place, so the lift created also generates a moment at the aerodynamic center. In a symmetric airfoil, the aerodynamic center and the center of pressure are at the same place, so you do not have a pitching moment.

What is the role of camber on lift?

The effect of increasing the airfoil camber causes a greater differential change in momentum of the flow around the airfoil, which causes differences in the pressure difference, thus increasing lift. However, the trade-off is that an increase in the camber of the flat plate also increases drag (form drag).

What are the two types of airfoil?

There are generally two kinds of airfoils: laminar flow and conventional. Laminar flow airfoils were originally developed to make an airplane fly faster.

What is camber in construction?

To camber means to slightly curve or bend. The word camber is typically used in describing a type of arch, truss or beam. In construction, there are many different types of arches and beams. … Cambers are used in windows, doorways and interior structural devices such as trusses and arches.

Where can I find camber of an airfoil?

Find vertical distance between the camber line and chord line at all points. Out of all such distances CnMn, find the maximum distance (CnMn)max. This is your maximum camber c. Now, camber percent chord = 100*c/L, and thickness percent chord = 100*t/L.

What is airfoil in wind turbine?

Introduction. An airfoil is the foundation of wind turbine blade design, and accordingly, optimizing its design plays a key role in improving aerodynamic performance, noise control, and structural robustness of a rotor blade.

How does airfoil affect lift?

The airfoil shape and wing size will both affect the amount of lift. The ratio of the wing span to the wing area also affects the amount of lift generated by a wing. … The lift then depends on the velocity of the air and how the object is inclined to the flow. Air: Lift depends on the mass of the flow.

What is flat bottom airfoil?

The airfoil has a thickness of 11.7 percent and is flat on the lower surface aft of 30 percent of chord. The flat bottom simplifies angle measurements on propellers, and makes for easy construction of wings.

Article first time published on

What is asymmetrical airfoil?

An aerofoil whose shape on either side of the chord is not the same.

What is the difference between a symmetric and a cambered airfoil in terms of the chord and camber lines?

The chord line cuts the airfoil into an upper surface and a lower surface. … For a symmetric airfoil (upper surface the same shape as the lower surface) the mean camber line will fall on top of the chord line. But in most cases, these are two separate lines.

What is an airfoil shape?

An airfoil (American English) or aerofoil (British English) is the cross-sectional shape of an object whose motion through a gas is capable of generating significant lift, such as a wing, a sail, or the blades of propeller, rotor, or turbine. A solid body moving through a fluid produces an aerodynamic force.

What are cambered wings used for?

Camber is usually designed into an airfoil to maximize its lift coefficient. This minimizes the stalling speed of aircraft using the airfoil. An aircraft with cambered wings will have a lower stalling speed than an aircraft with a similar wing loading and symmetric airfoil wings.

What do you mean by double cambered airfoil?

Explanation: Pressure on the upper surface of an airfoil is lower than that of the lower surface. This will provide pressure difference which will generate lift force. … However, if both surfaces are curved then, it is called a double cambered airfoil.

What is airfoil and its types?

There are essentially two types of aerofoils– symmetrical and non-symmetrical. … Non-symmetrical aerofoil, also known as cambered aerofoil, has different upper and lower surfaces such that the chord line happens to be placed above with large curvature. Furthermore, their chord line and chamber line are different.

How do you get camber?

Divide the horizontal measurement by the vertical one with a calculator then take the inverse tangent (usually denoted by “Tan” with a small “-1,” or by “Arctan” or “Atan”). Make sure the calculator is in degree mode and not radian mode. The result is the camber angle.

How camber is provided?

Method of Providing Camber in Road Normally, the camber is provided on the straight roads by raising the center of the carriageway with respect to these edges, forming a crown or highest point on the center-line. … Camber can be expressed in percentage. If the camber is n%, the cross slope is n in 100.

What is a mean camber line?

The mean line or camber line is the locus of the mid-points between the upper and lower surfaces when measured perpendicular to the camber line.

What is camber in concrete beams?

Camber is inherent in all prestressed precast products. It is the upward deflection created by the prestressed forces in the strands located below the center of gravity. This is required to resist design loads and in the hollowcore plank it compresses the bottom more than the top.

What is camber and its types?

The following 4 types of camber are generally provided to the road surface. Composite camber. Sloped or Straight camber. Two straight line camber. Barrel camber.

What is a cambered ceiling?

During production, trusses improve on traditional rafter design by forcing an upward bend into the chords of trusses. This is referred to as a ‘camber’. A camber helps to resist loads. For example, the amount of bend is calculated to help resist the load of tiles and ceiling lining.

Is the fuselage an airfoil?

One of the earliest aircraft using this design approach is Burnelli CBY-3, which fuselage was airfoil shaped to produce lift.

What is airfoil stall?

Definition. Stall is defined as a sudden reduction in the lift generated by an aerofoil when the critical angle of attack is reached or exceeded.

How does a airfoil work?

airfoil, also spelled Aerofoil, shaped surface, such as an airplane wing, tail, or propeller blade, that produces lift and drag when moved through the air. An airfoil produces a lifting force that acts at right angles to the airstream and a dragging force that acts in the same direction as the airstream.

How are airfoils designed?

An airfoil is constructed in such a way that its shape takes advantage of the air’s response to certain physical laws. This develops two actions from the air mass: a positive pressure lifting action from the air mass below the wing, and a negative pressure lifting action from lowered pressure above the wing.

Which theory is used to model the wind turbine?

Which theory is used to model the wind turbine? Explanation: Blade momentum theory is used to for aerodynamic modelling due to its simplicity.

What is the basic job of the rotor blades of the turbine?

Wind turbine rotor blades are the most highly stressed and vital component of any wind turbine. Their job is to absorb the kinetic power of the wind and convert this energy into a rotary motion around a central hub.

What is the most common airfoil?

Possibly the most widely used airfoil of all time, the NACA 23012 combined high lift, low drag, mild pitching moments, and even a bit of laminar flow on its lower surface. It was designed in 1935 by NACA Langley researcher Eastman Jacobs.

What airfoil should I use?

If the plane is to be a precision aerobat then a symmetrical airfoil is most appropriate because it flies the same in any given attitude. If the plane is to fly slowly or carry a load but is not intended to do aerobatics then a flat-bottom or under-cambered airfoil should be considered.

What are the parts of an airfoil?

An airfoil has a leading edge, a trailing edge, a chord, and camber. The leading edge is the “front” of the airfoil—the portion that meets the air first.
