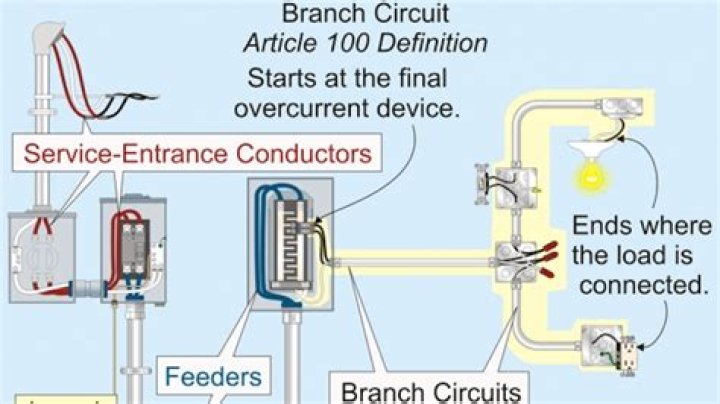

A branch circuit is defined as, the circuit conductors between the final overcurrent device protecting the circuit and the outlet(s). … The conductors on the load side of the final branch circuit overcurrent device are branch circuit conductors, not feeder conductors, no matter how large the circuit rating.

What is the purpose of a branch circuit?

General purpose branch circuits are 120 volts circuits used for supplying lighting fixtures and receptacle outlets for most small portable appliances. There are usually a number of general purpose branch circuits supplying lights and outlets in different rooms around a residence or commercial or industrial building.

What is a branch circuit components?

A branch circuit consists of the conductors between the final overcurrent protection device and the outlet(s). … It consists of the conductors between the final overcurrent protection device (OCPD) and the receptacle outlets, lighting outlets, or other outlets [Art.

What does individual branch circuit mean?

An individual branch circuit is a circuit that supplies only one piece of utilization equipment (e.g., one range, one space heater, one motor). … An individual branch circuit supplies only one single receptacle for the connection of a single attachment plug.

Which system is used in branch circuit instead of fuse?

A UL1077 and UL489 circuit breaker serves as a circuit protective device similar to a fuse. Circuit breakers have been around for over 100 years and their purpose is to make sure an electrical overload doesn’t damage your equipment, wiring, or worse yet burn your building down.

What is branch circuit protection?

As a branch circuit protection device, UL 489 circuit breakers are tasked with protection of the circuit wiring. Their purpose is to help prevent electric shock and fire, and to provide a means for electrical isolation during maintenance periods.

What are the different types of branch circuit?

• Dedicated appliance circuits.
• Lighting circuits.
• Outlet circuits.
• Room circuits.

How do you identify a branch circuit?

Because the load is continuous, multiply 600 volt-amperes by 125 percent (600 x 125 percent = 750 volt-amperes). A 20-ampere, 120-volt branch circuit will carry 2,400 volt-amperes (20 x 120 = 2,400). The maximum number permitted on a 20-ampere branch circuit is three (2,400 ÷ 750 = 3.2 = 3).

What is the difference between a branch circuit and a feeder?

Branch circuits are not feeders. A branch circuit is defined as, the circuit conductors between the final overcurrent device protecting the circuit and the outlet(s). … So, feeder conductors are conductors that are not service conductors and not branch circuit conductors.

What is the purpose of the equipment grounding conductor?

The Equipment Grounding Conductor (EGC) is designed to allow unwanted fault-current to travel back to its source by way of a low-impedance (unobstructed) electrical path.

Article first time published on

What is branch in electrical engineering?

Branch – Branches are the connections between nodes. A branch is an element (resistor, capacitor, source, etc.). The number of branches in a circuit is equal to the number of elements.

What is a branch fuse?

Branch fusing means that each element circuit is separately fused. There are two cartidge type fuses in a fuse holder for each element circuit. We fuse right before the power contactor. This requirement also coincides with the use of direct wiring of the kiln.

How many branch circuits are required in a home?

As mentioned in June, a minimum of two small-appliance branch circuits are required in kitchens. [210.52(B)(1)] Kitchen countertop surfaces have the same requirement. At least two small-appliance branch circuits are required to feed the receptacles that serve countertop surfaces in a kitchen. (See Figure 1.)

Can fuse be replaced by MCB?

With MCB, it is very simple to resume the supply But in case of a fuse, the entire fuse wire needs to be replaced.

Where does a branch circuit start?

A branch circuit is defined as that part of an electric circuit extending beyond the last circuit breaker or fuse. The branch circuits start at the breaker box and extend to the electrical devices connected to the service. Branch circuits are the last part of the circuit supplying electrical devices.

How do you measure conductors in a branch circuit?

Branch-circuit conductors shall have an ampacity not less than the maximum load to be served. Conductors shall be sized to carry not less than the larger of 210.19(A)(1)(a) or (b). For branch circuits not more than 600 volts, conductors shall have an ampacity not less than the maximum load to be served.

What provides branch circuit protection and where is it located?

Fuses and circuit breakers are usually installed on motor circuits to protect the motor branch-circuit conductors, the motor control apparatus and the motors against overcurrent due to short circuits or ground faults.

What is the maximum allowable branch circuit protection for a power supply?

A 15- or 20-ampere branch circuit shall be permitted to supply lighting units, or other utilization equipment, or a combination of both. The rating of any one cord-and-plug-connected utilization equipment not fastened in place shall not exceed 80 percent of the branch-circuit ampere rating.

What is a branch circuit UL?

UL 508A – Branch and Feeder Branch Circuit: Any circuit that extends beyond the final overcurrent protective device is called a branch circuit. This includes circuits servicing single motors (individual) and circuits serving many lights and receptacles (multiwire).

Can feeders and branch circuits in same conduit?

Correct, if they’re feeder conductors then they can occupy the same raceway as branch circuit conductors.

Is a control circuit considered a branch circuit?

According to the NEC, a common (tapped) control circuit is considered a branch circuit.

How many receptacles can be on a branch circuit?

Technically, you can have as many outlets on a 15 amp circuit breaker as you want. However, a good rule of thumb is 1 outlet per 1.5 amps, up to 80% of the capacity of the circuit breaker. Therefore, we would suggest a maximum of 8 outlets for a 15 amp circuit.

What is the difference between a grounded conductor and a grounding conductor?

Grounded vs. Sometimes the neutral wire is referred to as a grounded wire. It is most correctly referred to as a “grounded neutral conductor,” but most times referred to as “the neutral” or “the ground wire”. … A “grounding” wire on the other hand is a safety wire that has intentionally been connected to earth.

What is never permitted to be used as an equipment grounding conductor?

“(B) Metal Frame of Building or Structure. The structural metal frame of a building or structure shall not be used as an equipment grounding conductor.”

What is the goal of a grounded system when a short circuit occurs on a branch circuit or feeder?

The EGC extends the ground connection to various points in the electrical system because it is generally installed with feeders or branch circuits. The role of grounding is to place a conductive object (equipment) at or as close to earth (ground) potential as possible.

What are the 3 main branches of electrical engineering?

• Power engineering.
• Control engineering.
• Electronic engineering.
• Microelectronics.
• Signal processing.
• Telecommunications engineering.
• Instrumentation engineering.
• Computer engineering.

What are the 6 types of engineers?

Through the years, the number of engineering degrees and career paths has expanded significantly. Today, there are now six major branches of engineering: mechanical, chemical, civil, electrical, management and geotechnical, and hundreds of different subcategories of engineering under each branch.

Do electrical engineers get paid well?

Electrical engineering jobs are among the most profitable jobs out there, an electrical engineer salary can exceed $254,000 per year. An Electrical Engineer tends to earn more than the national average salary, and this is expected to continue. … On average, an Electrical Engineer earns a salary of $71,000 per year.

Can you put a refrigerator and a freezer on the same circuit?

You can plug a freezer and a refrigerator into the same outlet if their total draw doesn’t exceed the capacity of the circuit. But again, if they start at the same time, their total draw will spike significantly, tripping the breaker in the process.

Can you put outlets and lights on the same circuit?

My short answer to the question is that “Yes, lights and power outlets (a.k.a AC receptacles) can be on the same circuit controlled by a circuit breaker, especially in a single family residential house”.

Can you mix lights and outlets on the same circuit?

Basic answer to your question of can a mixture of lights and receptacles be installed on a single circuit is yes.
