If you miswired the GFCI it may not prevent personal injury or death due to a ground fault (electrical shock). If you mistakenly connect the LINE wires to the LOAD terminals, the GFCI will not reset and will not provide power to either the GFCI receptacle face or any receptacles fed from the GFCI.

Will a GFCI work if the line and load are reversed?

Here’s what happens when somebody wires a GFCI receptacle with the load and line wires reversed: The GFCI will work, in the sense that you can plug in a hair dryer and the hair dryer will blow hot air. … If the load and line wiring gets messed up, a ground fault (radio in the tub) won’t trip the GFCI.

Will GFCI work if polarity is reversed?

When the polarity is reversed, there is no current distributed to the ground so the GFCI won’t trip via your tester.

Will GFCI work if hot and neutral are reversed?

The neutral went to the hot terminal, and the hot wire went to the neutral terminal. Many GFCIs have features that prevent them from tripping if they are miswired. Because reverse polarity is caused by incorrect wiring, your GFCI is unlikely to work.

Does it matter how you wire a GFCI?

You can always replace a standard receptacle with a GFCI receptacle. You wiring it up exactly the same. … GFCI receptacle – The LOAD terminals are only used if you are passing power through the GFCI to protect additional receptacles downstream.

Can a GFCI work without a neutral?

On 2P 15A to 50A the GFI breaker will work with or without a load neutral wire. However, if there is no load neutral wire the breaker neutral (white curly wire) must still be connected to the panel neutral.

What happens if you install outlet backwards?

But here’s the catch: If you connect the circuit wires to the wrong terminals on an outlet, the outlet will still work but the polarity will be backward. When this happens, a lamp, for example, will have its bulb socket sleeve energized rather than the little tab inside the socket.

Where does the hot wire go on a GFCI?

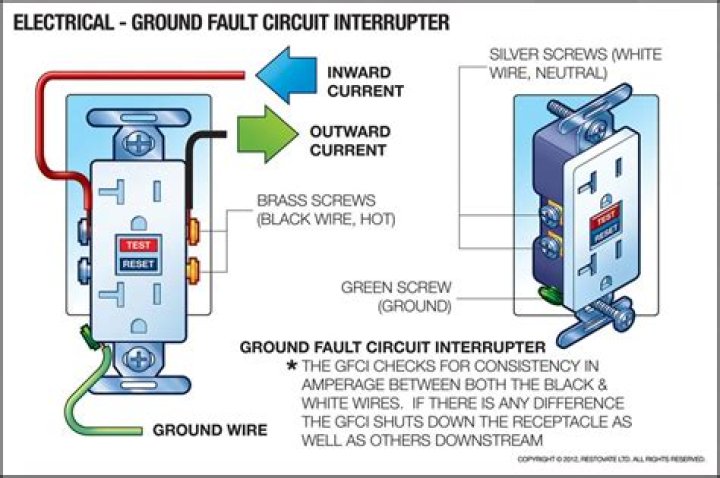

The line connection is used for all GFCI outlet installations. The circuit’s hot wire (typically colored black or red) connects to the black or brass-colored screw terminal marked LINE. The white neutral wire connects to the silver-colored screw terminal marked LINE.

What does Hot neutral reverse mean?

One common issue with electrical outlets is reverse polarity, also known as “hot-neutral reversed.” In this condition, the outlet has been wired incorrectly, altering the flow of electricity. While the outlet will still be able to provide power to your electrical items, it is also present a greater shock hazard.

What happens if you wire live and neutral wrong?

If your outlet’s polarity is reversed, it means that the neutral wire is connected to where the hot wire is supposed to be. This may not sound like a terrible thing, but it is. There is always electricity flowing out of an outlet with reversed polarity, even if an appliance is supposed to be off.

Article first time published on

Why can't I reset my GFCI outlet?

A GFCI or GFI outlet may not reset because there’s a ground fault occurring at a regular outlet that’s not working, or somewhere else downstream of the GFI. … Chances are, there’s a ground-fault at one or more downstream wires, receptacles, or electrical devices. An incorrectly installed GFI may be problematic too.

Does power go to line or load on GFCI?

The “line” wires are the incoming power from the breaker box and the “load” wires are the outgoing power that travels down the circuit to the next outlet.

Can a GFCI be at the end of a circuit?

In most cases, you have to open and inspect the individual outlets. Even if you can successfully add a GFCI to the end of a circuit, GFCIs can only protect downstream. They cannot provide protection upstream. A GFCI at the end of the circuit can only protect that one outlet.

Can you wire two GFCI outlets together?

When you need to wire multiple GFCI outlets such as in a kitchen or bathroom you have a couple of options. To save money, you can put in a single GFCI and then wire additional standard outlets to the “LOAD” output from the single GFCI. This provides the same protection as having a GFCI at each location.

Is reverse polarity easy to fix?

What is reverse polarity? Reverse polarity is one of the easiest issues in electrical wiring to correct. Basically there are two wires connected to the outlet that need to be reversed to correct the problem. It takes only a couple of minutes.

What would cause reverse polarity?

This happens when the hot and neutral wires get flipped around at an outlet, or upstream from an outlet. Reversed polarity creates a potential shock hazard, but it’s usually an easy repair.

What happens if you wire light backwards?

Tip. The fixture still works if you reverse the wires, but the socket sleeve will be hot, and anyone who touches it while changing a bulb can get a shock. When wired correctly, the socket sleeve is neutral and only the small metal tab at the base of the socket is hot.

What happens if you cross hot and neutral wires?

In North America, switching the hot and neutral wires on the AC breaker will cause a potential shock hazard with the polarized electrical outlets and lighting fixtures connected to that breaker. At the breaker, neutrals are supposed to be connected to earth ground. Hopefully you would blow a breaker.

What happens if you mix up hot and neutral wires?

This happens when the hot and neutral wires get flipped around at an outlet, or upstream from an outlet. Reversed polarity creates a potential shock hazard, but it’s usually an easy repair. Any $5 electrical tester will alert you to this condition, assuming you have a properly grounded three-prong outlet.

Does a 2 pole GFCI need a neutral?

It doesn’t make any difference if the load is pure 240-volt (with two hots and no neutral) or 120/240-volt (with two hots and a neutral) — you use the same double-pole GFCI breaker. You even install it the same. … There will be no connection to the breaker neutral, so just ignore it.

Does a 240-volt GFCI need a neutral?

Any 120V or 120/240V equipment must be supplied with a neutral conductor. In a 240V-only circuit, there is no neutral, and the ground can be either insulated or uninsulated.

Do hot tubs need a neutral?

Hot tubs with mixed voltage components (such as 120V ozonator and 240V heater) require 4-wire systems. This means they require an electrical circuit providing (2) hot wires, (1) neutral, and (1) ground wire. … Both 3-wire and 4-wire spas must be GFCI protected.

Why would an outlet have 2 hot wires?

The reason for multiple hot/neutral wires for one outlet is that the outlets are daisy-chained together. This means hot/neutral is only coming from one of the wires and it is being sent to the other wire.

Can you connect 2 hot wires together?

Connect all your hots together, and all your negatives, you increase amps. The same can be done with two power supplies, connecting hots together and negatives together increases amps.

Can reverse polarity damage electronics?

Reverse polarity can easily damage your electronics when plugged into an outlet wired incorrectly. If your electronics do not have any mechanism to protect against reverse polarity built into the circuitry, it is only a matter of time before they are damaged.

How do you fix reverse polarity on a car battery?

After some time, the battery will be discharged entirely. But in order to have a negative charge, you will need to hook it up backward and charge it again. So, the only way for a positive-charged battery to reverse itself is to discharge completely, and then reversed charged.

What side of a wall outlet is hot?

As you can see, the neutral and hot wires are connected to the two vertical prongs at the top of the receptacle (neutral on the left, hot on the right) and the ground wire is connected to the round prong at the bottom of the receptacle.

Can you wire a GFCI to a switch?

Is the proper way to wire this: Place the switch in the hot wire going to the “line” side of the GFCI outlet. Run the neutral wire uninterrupted to the “line” side of the GFCI outlet. Connect ground wires as usual, switch and outlet.

Why is my GFCI light red?

GREEN LIGHT indicates the device has passed the self-test and is providing power. RED means the device needs attention. … If the GFCI will NOT reset or the solid or blinking red light continues, the device has somehow been compromised and must be replaced. NO LED means the device is in the tripped state.

What does yellow light on GFCI mean?

GFCI or AFCI Outlet Power Has Tripped Off Joe, from what you have described the outlet with yellow light indicates that it has tripped and turned itself off. Therefore the outlet needs to be reset. To reset the outlet push the RESET button which is located in the center of the outlet.

Can GFCI outlets be wired in series?

You only need 1 GFCI outlet per circuit (assuming it’s at the beginning of the line and the rest of the outlets are loads). They are correctly wired in parallel – if they were in series, you wouldn’t get the correct voltage at the other outlets when there is any type of load present.
