The cable must have a wire gauge sufficient to the amperage of the subpanel—a 100-amp subpanel requires #4 copper wires or, more commonly, #2 aluminum wires, for example. (Aluminum is often used for feeder cables because the cost is typically much lower than that of copper wires.)

What wire gauge do I need for a 100 amp subpanel at the end of a 60 wire run?

A 100 amp sub panel wiring size requirement is #4 for copper wires and #2 for aluminum wires.

What size wire do I need to run 100 amp Service 150 feet?

What is the right wire size for 100 Amp service 150 feet distance? You should get 2/0 AWG Copper wire or 4/0 AWG Aluminum wire for single-phase circuits. And, 1/0 AWG Copper wire or 3/0 AWG Aluminum wire if you have three-phase circuits. For these wires, the average voltage drop should be 3%.

What size wire do I need for 100 amp service?

When it comes to the lines connecting master and secondary panels, where the line will carry as much as a full 100 amps, use a 2-gauge non-metallic sheathed electrical cable. The cable must contain one or two hot wires depending on your needs, one neutral wire, and one ground wire. Each wire should be 2-gauge in size.

Can you run a 100 amp sub panel off a 200 amp main panel?

2 Answers. Can you add a 100 amp breaker to your main panel? Yes you have 12 slots the double pole breaker will only take 2 slots.

Can you use 6 gauge wire for 100 amp service?

You can feed as many 100A subpanels as you want with #6 wire, as long as the wire is supplied from 60A breakers. Breakers protect wires.

What wire size do I need to go 100 feet for a 60 amp service to a workshop?

For 60 amps #6 wire is the right size. Use RHW or THHN type insulation.

Can a 60 amp breaker feed a 100 amp sub panel?

You can feed a 100 Amp panel with a 60 Amp breaker. Keep in mind that the sub panel needs to be rated above the breaker size.

What is #2 aluminum wire rated for?

Conductor Size (AWG/KCMIL)60°C (140°F) TW, UF90°C (194°F) TBS, SA, SIS, FEP, FEPB, MI, RHH, RHW-2, THHN, THHW, THW-2, THWN-2, XHH, XHHW, XHHW-2, USE-2, ZW365852751001851151/0100135

What size wire do I need for a 100 amp underground 100 ft run?

For a 100 ampere circuit, the conductors will likely be required to be 3 AWG copper or 1 AWG aluminum.

Article first time published on

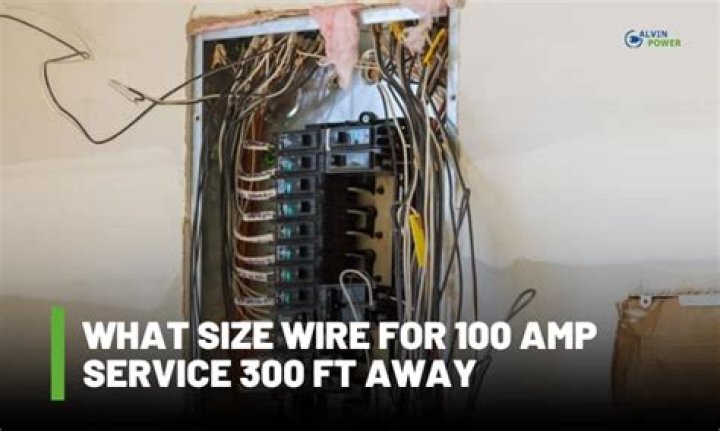

What size wire do I need for a 100 amp underground 300 ft run?

for 300 feet for 100 amp rated service I would use Aluminum direct burial 1/0-1/0-1/0-1/0, the forth can be as low as #4 for the ground (but also in conduit, even if in conduit must still be rated underground wire and required by code also) Also note the size wire the breaker can handle, cannot cut strands to make fit, …

How many amps is #4 wire good for?

How many amps can a 4 gauge wire handle? It has a rated ampacity of 85 amps at 75°C. This means that, for average use, the 4 gauge wire can handle up to 85 amps safely.

How much load can a 100 amp panel handle?

As stated, the 100 Amp service x 240 Volts can supply a maximum of 24,000 Watts. If an 80 percent safety factor is used for your main breakers, then you would have a maximum safe continuous load of 19,200 Watts.

Can a 100 amp main panel feed a 100 amp sub panel?

First the panels you are looking at that are rated 100A simply means you can use them for any application up to 100A. You can for example add a 60A breaker to your existing panel and protect the new subpanel with a 100A rating.

Can a main panel be used as a subpanel?

There’s no problem with having a main breaker in a subpanel. It’s required if your panel is in a separate building and has more than six breakers, but there’s nothing prohibiting it in any other case.

How many amps is #6 wire good for?

NM, TW, & UF WIRE (Copper Conductor)SE CABLE (Copper Conductor)12 AWG – 20 AMPS6 AWG – 65 AMPS10 AWG – 30 AMPS4 AWG – 85 AMPS8 AWG – 40 AMPS2 AWG – 115 AMPS6 AWG – 55 AMPS1 AWG – 130 AMPS

How long can I run 12 gauge wire?

You can run 50′ on a 12 gauge wire.

How far can you run 6 gauge wire?

14 AWG100 feet10 AWG128 feet8 AWG152 feet6 AWG188 feet

Can you feed a 100 amp sub panel with a 50 amp breaker?

As the panel is rated at 100 amps the 50 amp breaker can be used for any circuit in the panel. However, everything on the circuit would then need to be rated for 50 amps or better. Few circuits require 50 amps and most of the equipment in your house is not rated for it.

What gauge wire do I need?

To determine what gauge wire you need, consider the carrying capacity and the amount of current the wire needs to conduct (measured in amperage or amps). Wire gauge is directly related to how many amps you need to run through it. The distance you need the wire to go can also impact the gauge of wire you need.

What does URD stand for in electrical wire?

Underground residential distribution wire (URD) is a specialty aluminum wire intended for use in residential construction and light to medium duty commercial applications.

What is 8 gauge wire rated for?

#8 Gauge THHN Copper Stranded Wire is the most popular single conductor copper wire we carry and is RATED FOR 55 AMPS @ 90°C.

What is the 6 throw rule?

The “six breaker throw rule” was a requirement in the National Electrical Code that a service must have have a main disconnect that shuts off all power and it cannot take more than six switch throws to do it, and the main disconnect(s) also must be clearly marked, as in the photo above.

How much can you run off 60 amps?

Newer homes have 100 to 200. The amount of power that each circuit can handle is the number of volts (usually 120) times the number of amps. Therefore, that 60 amp circuit can handle 7200 watts.

What size breaker do I need to run a sub panel?

Based on your question, since you will be having a subpanel, you want the breaker feeding the subpanel to be sized for the subpanel or slightly smaller. So if you purchase and install a 200A subpanel, then the breaker should be 200A. If you use a 125A subpanel, then use a 125A breaker.

How far can you run #2 copper wire?

Example calcuation 2 – Copper Wire, 3 Phase power Cable run: 400 ft. 1 conductor per phase utilizing a 750 kcmil Aluminum conductor installed Direct Buried will limit the voltage drop to 2.64% or less when supplying 194 amps for 400.0 feet on a 240 volt 3 phase system.

How far can you run a 10 gauge wire?

How Far Can You Run 10 Gauge Wire? You can run a 10 gauge wire up to 85 feet on a 20 amp circuit. If you opt to use this type of wire on a 15 amp circuit, it can run up to 115 feet. After these distances, the circuit will go over the recommended 3% voltage drop.

What wire size do I need to go 200 feet for a 60 amp service to a workshop?

2 Answers. 6AWG copper wire would be the minimum for a 60A subpanel but with a 105ft distance you have too much voltage drop and need to go up to 4AWG copper to keep the voltage drop within acceptable limits (usually 5%).

What is 10 2 Romex used for?

Wire Gauge or TypeRated AmperageCommon Uses10-2 Romex30 AElectric water heater, baseboard heaters10-3 Romex30 AElectric Clothes Dryer6/3 Cu Range Cable50 ARange, Heatpump, On-Demand Electric Water heater2 Gauge Copper100 ACentral Electric Heat

How many amps can a 6'4 wire handle?

In this regard, the appropriate size wire for breakers with a 60 amps capacity is between the 6 and 4 American Wire Gauge (AWG). Though the size wire is dependent on multiple factors, these are the generally accepted size wires for 60 amp breakers.

What is the difference between 4 0 and 4 AWG?

This can be very complex but I will try to simplify #4 awg wire is quite a bit smaller than 4/0 wire. The difference is in the size, (circular Mils) and the amount of current that the wire is able to safely carry.
