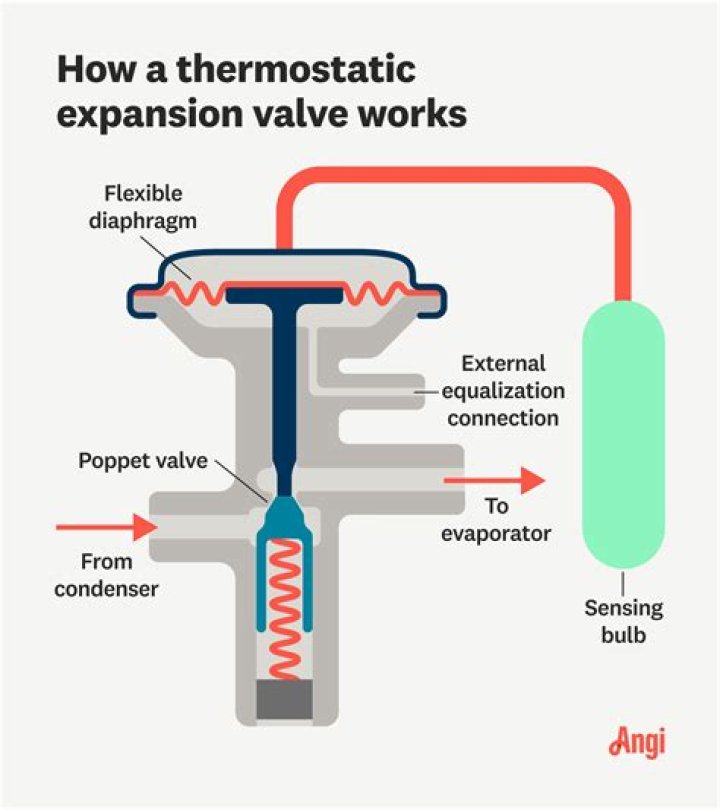

An expansion valve with an MOP-type power element is designed to limit the evaporator pressure from rising above a predetermined value. … Since the bulb pressure is the opening force of a TXV, the port within the valve will essentially close, preventing any further increase in the evaporator pressure.

What is a pressure limiting TXV used for?

Liquid refrigerant enters the valve under high pressure via the system’s liquid line, but its pressure is reduced when the TXV limits the amount of this liquid refrigerant entering the evaporator. The thermostatic expansion valve controls one thing only: the rate of flow of liquid refrigerant into the evaporator.

What does adjusting the TXV do?

Turning the adjustment stem counterclockwise will decrease spring pressure reducing superheat. When an operating refrigeration system stops working, the TXV may have lost its power head charge or it may have become restricted, but it’s not likely that it came out of adjustment.

What are the symptoms of a restricted expansion valve?

• Low evaporator (suction) pressure;
• High evaporator and compressor superheats;
• Low compressor amp draw;
• Short-cycling on the low-pressure control;
• Somewhat high discharge temperature;
• Low condensing (head) pressure;
• Low condenser split; and.

What happens when TXV valve goes bad?

The symptoms are low suction, normal subcooling, and high superheat when a TXV fails “shut,” but there are some other issues to watch for that can actually result in overfeeding the coil.…

What happens if the TXV bulb loses its charge?

Usually when a TXV bulb looses its bulb charge, it looses it slowly. … When the bulb pressure pushes down on the head of the TXV, it opens the orifice inside the TXV a bit and allows more refrigerant into the evaporator.

How does the receiver ensure that only 100 liquid?

How does the receiver ensure that only 100% liquid refrigerant enters the liquid line? By means of a dip tube.

What happens if expansion valve is stuck open?

If the expansion valve is stuck open or clogged, the AC system will not cool properly. A clogged valve will lead to too little refrigerant, increasing the pressure in the system and causing the AC compressor to overheat.

Will a bad TXV cause low suction pressure?

A TXV being restricted will cause the evaporator, compressor, and condenser to be starved of refrigerant. This will cause low suction pressures, high superheats, low amp draws, and low head pressures. … Even the receiver may overfill if too much refrigerant is added.

What happens if superheat is too high?

Too high of a superheat can cause the heat of compression to increase, causing the temperature at the discharge valves to increase. If the temperature increases beyond its safe operating temperature, it will cause damage to the compressor.

Article first time published on

Does adding refrigerant increase superheat?

4. Add refrigerant to lower the suction superheat. Recover refrigerant to increase the suction superheat. Note that you should never add refrigerant if the superheat is already 5F or less, even if the charging chart shows 0°F.

What does high superheat mean?

Excessive or high superheat is an indication of insufficient refrigerant in the evaporator coil for the heat load present. This could mean that not enough refrigerant is entering the coil or this could also indicate an excessive amount of heat load on the evaporator coil.

Will a bad TXV cause high suction pressure?

Normal-to-high superheats — Because of the reduced refrigerant flow through the system, the TXV may not be getting the refrigerant flow rate it needs. High superheat may be the result. However, the superheat may be normal if the valve problem is not severe. … The results are high suction pressures.

Will a bad TXV cause high head pressure?

TXV (or in some texts TEV) – Thermostatic Expansion Valve – improperly set, iced, contaminated, or clogged or crimpled capillary tube, or having lost power to a TXV power head can cause high pressure and can also cause valve damage by flooding the compressor if instead the valve sticks wide open.

How do you know if you have a bad TXV valve?

Check the subcooling, superheat and pressures again. Another test is to put the sensing bulb in ice water and checking the pressures superheat, and subcooling again. If they don’t change, it’s a bad TXV.

What is a one time relief valve constructed with?

One-Time. A one-time relief valve, sometimes called a “fusible plug,” is normally constructed from a fitting with a drilled hole filled in with a low-temperature, solder. At a specific temperature the solder will soften and pressure within the vessel will cause the solder plug to “blow out.”

What are some typical problems on the liquid side of a liquid cooling evaporator?

Moisture from the air freezes onto the evaporator coils (the cooling coils in the freezer) and forms an insulating barrier to heat transfer. Airflow also decreases as the passages narrow due to ice buildup. Each evaporator has a defrost cycle to melt frost/ice that has built up on the evaporator coils.

What are two forces that control the EPR valve?

The EPR valve’s spring pressure and inlet pressure are two of the two forces that control it.

What causes a TXV to ice up?

If clogged debris is reducing pressure and flow within the TXV, the temperature will drop and cause ice to form on your evaporator coil. And when you see ice, you need to call in the pros to help.

How do you unclog a TXV valve?

Suction pressure should drop, and superheat should rise. If TXV does not respond to the cold or hot water, keep the bulb in the water for a minimum of one minute at a time. This may force the expansion valve to open or close accordingly. Continue to switch the bulb from the hot water to the cold water.

Will a bad TXV cause coil to freeze?

Bad Thermal Expansion Valve Another reason for frozen lines in an AC unit is due to a faulty thermal expansion valve, also known as a TXV. This controls the flow of refrigerant through your AC unit. If this malfunctions then not enough refrigerant will pass through the system and the coils. That will cause a freeze up.

What is a common symptom of a severely restricted filter drier?

A starved evaporator from the liquid line (filter drier) restriction will cause high superheats. High compression ratios from the low evaporator pressure will cause high heat of compression, thus high discharge temperatures. This is assuming there’s still some mass flow rate of refrigerant through the system.

What causes high head pressure and low suction pressure?

The main reasons your compressor will have simultaneously low head pressure and high suction pressure is due to: Bad or leaky compressor valves. Worn compressor piston rings. Leaky oil separator return line.

What causes low suction pressure and normal head pressure?

Apart from refrigerant leaks causing loss of critical charge, the most common problem associated with low suction pressure is: LOW LOAD, i.e., not enough warm, moisture laden airflow across the evaporator coil. Classic causes: Undersized duct or poorly designed and/or poorly installed air distribution system.

How do you fix high head pressure?

Plugged up condenser coils is another big problem commonly encountered with high head pressure. That is also probably the easiest one to solve, provided you have a water hose nearby. A little coil cleaner and spraying water (from the inside out) will solve that problem and drop the head pressure to normal levels.

How do you fix high discharge pressure?

One of the causes that have been established in relation to high compressor discharge pressure is the presence of air in the system. When this takes place, your best solution is to recharge the system. Another is a clogged condenser in which case you will need to clean the condenser so that it will function properly.

What would the symptoms of reduced air flow be at the evaporator?

Anytime the evaporator coil sees reduced airflow across its face, there will be a reduced heat load on the coil. No airflow will cause a lot of the refrigerant in the coil to remain a liquid and not vaporize. … This would frost or ice the evaporator coil, causing flooding or slugging of the compressor.

What causes expansion valve to clog?

Problem. As the expansion valve operates under high pressures and is temperature sensitive, improper working conditions, as well as impurities inside the loop, can cause its deregulation and malfunction.

Why is superheat bad?

A heat pump that is operating at low superheat does not have enough heat load for the excess amount of refrigerant that is available in the coils of the evaporator resulting in liquid refrigerant entering the compressor valves and causing damage to the compressor and other mechanical components of the refrigeration …

What is ideal superheat?

Superheat for most systems should be approximately 10F measured at the evaporator; 20°F to 25°F near the compressor. If the suction pressure is 45 psi, (which converts to 22°F) and the suction temp is 32°F, the system still has 10°F of superheat.

What happens if subcooling is too low?

A reminder why subcooling is important: Among other things, if the subcooling is too low, the condenser will “run out of” refrigerant prematurely at higher load conditions, overheating the compressor and reducing performance and efficiency.
