A blend door actuator controls the temperature and the flow of the air in a car. If your vehicle is only releasing cold air, or if you are not able to change the airflow, it may be because of a malfunctioning actuator.

What are the symptoms of a bad blend door actuator?

• Knocking. Knocking sounds can almost always be attributed to a failing blend door actuator. …
• Clicking. …
• Any Other Strange Noises. …
• Inconsistent Airflow. …
• Inconsistent Temperature. …
• Wrong Temperature.

Can I drive without blend door actuator?

However, it’s actually quite an important part of your car’s air-conditioning system. Once the blend door actuator fails, you will notice symptoms with your car. Blend door actuator problems won’t prohibit you from driving, but they can make life inside the car uncomfortable.

What does a bad blend door actuator do?

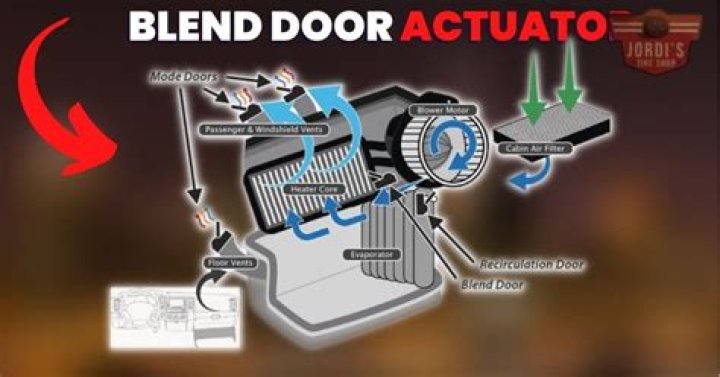

Temperature control is obtained by routing air towards or away from the heater core using the blend door. A faulty actuator can cause the blend door to be stuck in one position or another, resulting in an outlet temperature that’s hotter or colder than the desired setting.

Can a bad blend door actuator drain battery?

The door lock actuator has a battery drain. … The battery runs down when the interior lights stay on longer than normal. … It’s a bad actuator if it doesn’t work 100 percent of the time.

How do you test a blend door actuator?

Here’s how. Consult the repair manual to identify which actuators control the defrost-vent-floor “mode door” and the temperature-regulating “blend door.” Then peer under the dash and locate the suspect actuator on the heater box. Have a friend switch between modes or temperatures while you watch the actuator.

Where is the blend door actuator located?

Blend Door Actuator: The blend door actuator is typically located closer to the heater core and evaporator than the mode door.

Can a bad blend door actuator cause no heat?

If the motor fails when the door is closed, that could cause a no heat in car condition. During air conditioning season, a bum blend door actuator can fail in a full or partially open position.

Why am I blowing hot air out the drivers side and cold out of the pass side?

You have a dual zone system in your vehicle. There will be separate temperature controls for each side and there may be a separate control for the rear seat passengers. Simply match both sets of controls, right and left sides, and you should be getting the same temperature air out both sides of the dash.

How long does it take to change a blend door actuator?

Expect the replacement work to take one to two hours, including testing.

Article first time published on

Do I need to disconnect battery to change blend door actuator?

It is advisable to disconnect the battery to avoid electrical shocks. New HVAC blend door actuators are put in place. The battery is re-connected and your vehicle is started to conduct the air flow temperature test to ensure the new actuators are fully operational.

What does the actuator do on a car?

Actuators work behind the scenes in vehicles to convert energy into a physical action or force. They perform a variety of performance and convenience functions, from controlling the throttle to directing airflow in the climate control system, and operating power seats and liftgates.

Why do Impalas click?

If You hear a clicking noise under the dash of Your Chevy Impala that is most commonly a problem with a component in the HVAC system for the car. It could be a blend door actuator, or the blower motor itself having a problem.

Can a bad battery cause door lock problems?

One common cause of car door locks failing to respond to the remote key is a weak battery in the key. Simply replacing the battery will fix the issue. But the problem you described is most likely to do with a faulty central lock/alarm control unit.

What is a door lock actuator in a car?

The behind-the-scenes mechanism that locks and unlocks your vehicle’s doors with the push of a button is the power door-lock actuator. Mounted inside the door, it includes an electric motor, gears and linkage, or a cable that extends or retracts to operate the lock.

What is the difference between a mode door actuator and a blend door actuator?

blend door controls the temp by moving a door allowing more or less air to blow through the heater core. mode door controls which vents the air blows through.

How many actuators does a car have?

The different HVAC actuators and their importance These are the four key actuators that are part of the climate control system in most cars these days: Mode actuator – determines where the air will blow out of, such as the floor vents, the top vents, or the defrosting vents that blow onto your windows and windshield.

Does the blend door actuator control hot and cold?

A blend door actuator controls the temperature and the flow of the air in a car. If your vehicle is only releasing cold air, or if you are not able to change the airflow, it may be because of a malfunctioning actuator.

Does blend door actuator have a fuse?

The blend door actuator fuse in Your 2010 Ford F-150 can be found in the fuse panel that is located in the passenger’s footwell. The panel can be found behind a plastic door that has fuse written on it. … The blend door actuator controls the blend door’s position.

Why is my AC cold on one side and not the other?

Due to the design of dual AC systems, low refrigerant is the leading cause of drastic temperature difference from one side of the dash to the other. … In most cases after the proper charge of Freon is in the car, the temp will blow equally as cold like it should on BOTH sides!

Can I add Freon to my car myself?

You’ve likely run low on refrigerant in your A/C system. Over time, tiny amounts of refrigerant leak from the lines, degrading A/C performance. … Recharging your air conditioner yourself is inexpensive and can be completed in just a few minutes.

Why is my AC colder on passenger side?

The most common reason is that the AC equipment that cools the air is under the dashboard in the center and right side of the vehicle (because the steering column get’s in the way). So, the air to the driver’s side has to go farther. That allows it to heat a little more.

Why does my AC only work on one side?

Blend door actuators are the most common reason for the car air conditioning to blow cold air on one side and hot air on the other. They can be diagnosed with an advanced scan tool. … If it does not move with the adjustments and commands, there is a problem with the blend door actuator and it will need to be replaced.

How many actuators does a Chevy Impala have?

The Impala is equipped with dual climate control and up to three actuators. When they malfunction, drivers witness loud “clacking” or “clicking” noises from under the dash.

What is the loud clicking noise in dash?

The most common source of a clicking noise on the driver’s side dash is the turn signal flasher but, it should only make noise when the turn signal is on or the emergency flasher is on. A rock(s) stuck in the tire tread can make clicking noises.
