What does the black wire mean on a thermostat?
Sarah Marsh What does the black wire mean on a thermostat?
Common wire
Blue or Black – C – Common wire, may be unused by your existing thermostat. Enables continuous power flow from the Red wire. Red – Rc – 24VAC (dedicated to cooling call) Green – G – Fan. White – W – Heat.
Why does my thermostat go black?
If your thermostat wall does not have a c-wire, or common wire, your thermostat most likely is not hooked up to your HVAC system for its power and needs batteries. When your screen is blank, it could indicate you need to replace the batteries. Most thermostats display a low-battery symbol when the juice is running low.
What do the wires on my thermostat mean?
Between the thermostat and the heating or cooling equipment is a set of low-voltage wires that are run from the thermostat control terminals to the. These strips of terminals have markings on them to signify the heating connection, the cooling connection, the fan connection, and heat pump connection, as applicable.
Why does my thermostat shut off?
1. The Circuit Breaker Tripped. Some thermostats are on the same breaker as other devices that draw too much power (like a hair dryer for example). If the circuit breaker trips, it may shut off the power to your thermostat, clearing the screen.
What is black wire thermostat?
The black wire may be linked to the C terminal, which controls the transformer. This is most often seen in electronic thermostats where only 24 volts are required. C terminals are connected to the common wire, which is most often black, but can also be other colors.
Where does the Red Wire come from on a thermostat?
The red wire should always come from the hot side of the 24-volt transformer. Consequently, the common wire (sometimes black in color) should come from the common side of the transformer. Most noteworthy, the wire colors on the transformer will be different than the thermostat wires.
What are the different types of thermostat wiring?
There are, after all, many different types of thermostats with different wiring out there: Honeywell thermostat wiring, nest wiring, old thermostats, and so on. We will cover the most common thermostat wirings for 2 wire, 3 wire, 4 wire, and 5 wire thermostats.
What’s the color of the W2 thermostat wire?
A majority of the time, the HVAC wiring color is brown for this particular terminal. However, an installer may have used any color when installing the wire to the W2 terminal. A cooling system with two compressors or a two-stage compressor need a Y2 terminal, so the thermostat is able to control the second stage of cooling.
What do the wires on the thermostat mean?
Thermostat wire connects the thermostat to the air handler or furnace allowing for communications between the two. Older wires will have only 2 or 4 strands but the 5 strand will provide that extra wire known as the c wire.
How do you wire a thermostat?
Twist the wires to the connectors on the back of the thermostat or follow the directions provided with the manufacturer’s instructions. Attach the thermostat face to the new wall plate. Push all wires back into the wall, and slide the plate onto the wall plate.
What does the Orange Wire on a thermostat mean?
Normally the orange wire is for “O” in the thermostat, this orange wire energises the reversing valve on a heat pump system.

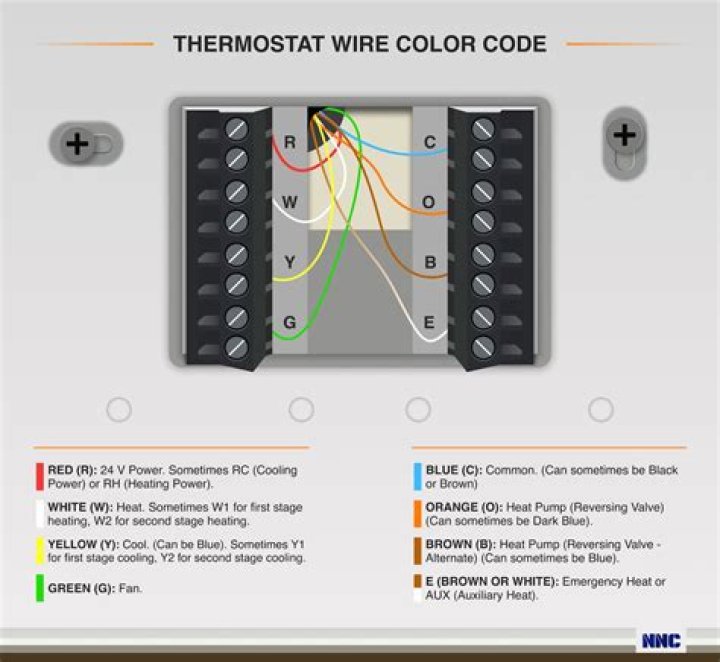

What is the color code for a thermostat?
Color codes for 24V thermostat wires are divided into two groups: The 5 universal base colors for thermostat wires which are, in order of frequency of use, red, white, green, yellow, and black. These colors are used as follows: i. Red for the common hot side of the heating transformer. ii.
