If the furnace failure code indicates an “open limit” or “open high temperature switch” or “open rollout switch”, it is probable that the furnace has overheated. Limit switches turn off the burner and turn on the circulating fan if there is a high temperature condition in the furnace.

Should a limit switch be open or closed?

The limit switch is a normally closed switch in series with the sail switch and the thermostat. Being temperature actuated, it is designed to “snap open” when an over temperature condition occurs. Thus the switch is normally opening under full load conditions and that causes arcing of the contacts.

How much does it cost to replace a limit switch on a furnace?

Average Cost of a New Furnace Limit Switch Depending on who your OEM is, this component could roughly cost you anywhere from $4 to $25.

How do I know if my limit switch is bad?

The most common sign of a malfunctioning limit switch is the continuous operation of your furnace’s blower. Just as the limit switch won’t allow the fan to turn on until the warm air has reached the right temperature, the limit switch also shuts down when the air cools to a certain temperature.

What causes high limit switch trip?

The high limit switch has a flame sensor rod that detects air temperatures in the plenum of the furnace. If it is dirty, it cannot properly detect temperatures, which is one reason why the furnace high limit switch trips.

Can a furnace high limit switch go bad?

Like any other part in your HVAC system, the high limit switch can wear out over time. One of the most common issues that happens when a high limit switch goes bad is that it fails to signal the blower fan to turn off. … High limit switches can also weaken over time so that they begin tripping at a lower temperature.

What does a limit switch do on a gas furnace?

A furnace limit switch is a component of a forced-air furnace that is responsible for turning on the furnace blower once the desired heat has been met inside the furnace. Without a functioning furnace limit switch, a furnace would not be able to regulate the temperature in conjunction with a thermostat.

What is an open limit device on a furnace?

Also known as the fan limit switch or simply the limit switch, it has two functions in the furnace’s operation: It turns the fan on and off during the normal heating cycles of the furnace, and it senses heat and shuts down the furnace if the interior temperature gets too high.

What is a limit switch?

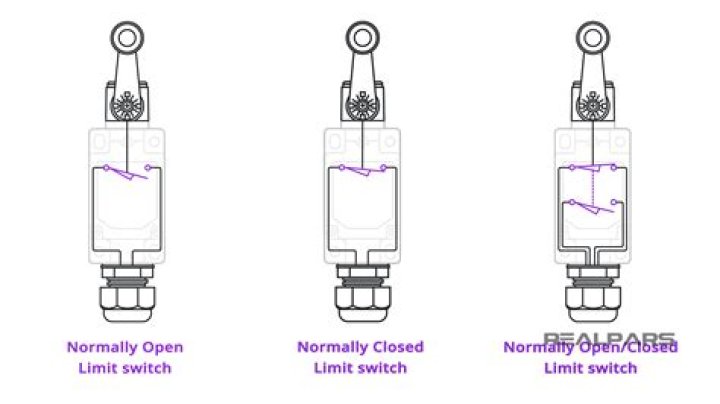

A limit switch is an electromechanical device operated by a physical force applied to it by an object. Limit switches are used to detect the presence or absence of an object. These switches were originally used to define the limit of travel of an object, and as a result, they were named Limit Switch.

What is a manual reset limit switch?

Senasys’ manual reset limit switches are a temperature sensing device with normally closed contacts. … Manual reset limit switches are commonly found in areas where temperature should not increase and needs to be looked at before returning back to normal before the equipment or appliance can work again.

Article first time published on

What does a limit switch do on an actuator?

In most cases, a limit switch begins operating when a moving machine or a moving component of a machine makes contact with an actuator or operating lever that activates the switch. The limit switch then regulates the electrical circuit that controls the machine and its moving parts.

Should my furnace switch be on or off?

If it’s a natural gas furnace that uses a standing pilot light to ignite the burners, then we recommend you shut it all the way off by turning off the gas to it. … You need electricity no matter what, so there’s no reason to shut down an electric furnace. Simply stop using it.

Is limit switch a sensor?

Limit switches are a type of sensor that detect presence and absence. Specifically, mechanical limit switches are switches that are mechanically activated, meaning that they have some sort of arm, lever, knob, plunger, etc., which is physically—or mechanically—activated by making contact with another object.

What is limit switch in control valve?

A limit switch is a device that is used to prove the open or closed position of a valve.

What does open high limit on a Goodman furnace mean?

It means that the filter was probably neglected and the furnace locked out on safety. Since the high limit us a soft lockout (self resetting), you can clear the code and reset the furnace by disconnecting and reconnecting power. If the high limit repeatedly tripped, it’s possible that it’s stuck open.

What does a limit switch do on a golf cart?

The E-Z-GO Limit Switch is used on 21-current E-Z-GO Gas Vehicles as a mechanical device that enables the operation of the forward and reverse directions of the vehicle.

What is the difference between proximity switch and limit switch?

Proximity sensors are non-contact switches with a long life and are suitable for passing objects. Limit switches are contact switches. Due to the internal contacts, the working life is relatively shorter. Limit switches are used for position detection in one direction.

Are limit switches available that Cannot be used outdoors Why?

A Limit Switch used outdoors may not release due to icing and may not satisfy specified standards. Carefully determine the position and shape of the dog or cam so that the actuator will not abruptly snap back, thus causing shock.
