The use of Electronic Chart Display and Information Systems (ECDIS) on board ships contributes significantly to the safety of navigation.

What are the main functions of ECDIS?

1.1 The primary function of the ECDIS is to contribute to safe navigation. 1.2 ECDIS with adequate back-up arrangements may be accepted as complying with the up-to-date charts required by regulations V/19 and V/27 of the 1974 SOLAS Convention, as amended.

What replaces ECDIS?

The purpose of ECDIS is to replace paper charts altogether and make them obsolete. ECDIS works in conjunction with rugged Marines displays and other technologies including GPS (Global Positioning Systems) and in compliance with the SOLAS Convention to enhance overall navigational safety procedures.

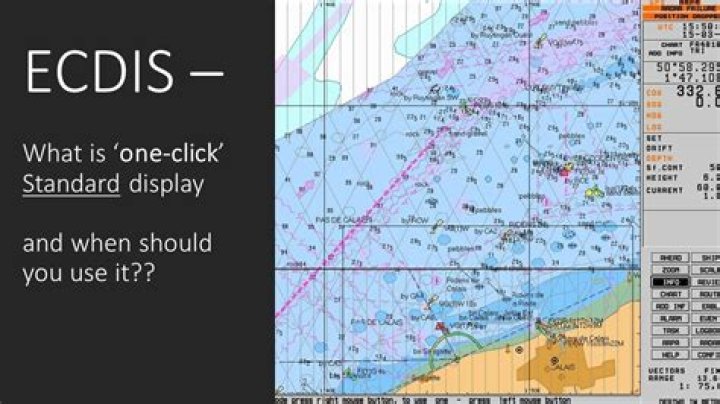

What is ECDIS and how does it work?

The ECDIS utilises the feature of the Global Positioning System (GPS) to successfully pinpoint the navigational points. … ECDIS is basically a navigational information system, interfaced with other navigational equipment such as the GPS, Gyro, RADAR, ARPA, Echo Sounder etc.

Is ECDIS mandatory?

Recognizing the advantages of ECDIS for navigation, in 2009, IMO adopted further amendments to regulation V/19, to make mandatory the carriage of ECDIS. The amendments entered into force on 1 January 2011, making ECDIS mandatory for new ships built after set dates and also phasing-in the requirement for existing ships.

What are the advantages in using the ECDIS?

“Ecdis can improve the safety of navigation. For example, it has significantly improved the accuracy and reliability of navigation charts,” he explained. Corrections and updates, such as wreck and cable positions, used to be added manually on paper charts.

What is the advantages of ECDIS?

Advantages of ECDIS over conventional Paper Charts: If two position fixing system are available, the discrepancy in two systems can be identified. Charts can be corrected with help of CD/Online. Passage planning can be done on ECDIS without referring to other publications. Various alarms can be set on ECDIS.

What is the biggest disadvantage of Ecdis?

Over-Reliance. With an equipment which is seemingly fool-proof, there is a tendency for navigators to over rely on it. Too much information on screen may cause clutter and can be distracting. The navigator may lose critical minutes on non-important items while decisions should be taken.

What is the main disadvantage of Ecdis?

System Lag: Modern ECDIS software can have a lot of data to display. And with various equipment interfaced with the ECDIS, the system can slow down very easily leading to system lag. The hardware needs to keep up with the software and frequent upgrades are necessary.

What are risks of over reliance on Ecdis?

Bridge crews should not become over-reliant on electronic chart display and information systems (ecdis) for safe navigation. There are cases where the improper use of ecdis and rel…

Article first time published on

What are the three 3 mandatory sensors of ECDIS?

Guidance (1) General: (i) ECDIS shall be supplied by an emergency source of electrical power; (ii) ECDIS is required to connect to Radar (video and ARPA information) and AIS as well as gyro compass, speed log and GPS receiver. This requirement is recommended to ECDIS for existing ships as far as practicable.

What is the back-up arrangement for ECDIS?

The function of a back-up system is to enable safe takeover of the ECDIS functions (to ensure that an ECDIS failure does not develop into a critical situation), and to provide means of safe navigation for the remaining part of the voyage.

What are the 4 stages of voyage planning?

There are four stages of Voyage Planning that are, Appraisal, Planning, Execution and Monitoring that logically follow each other.

What is the difference between ECDIS and ECS?

A genuine ECDIS is a high quality ECS that meets the requirement of the IMO performance standard and has been tested by an independent type -approval authority. Only type-approved ECS can legitimately be called ECDIS and only they are considered by the regulatory authorities to meet the requirements of SOLAS.

Can we navigate safely by ECDIS alone?

So, what is the solution? Mariners should understand that the ECDIS is a useful tool. However, the ECDIS alone cannot navigate the ship or correct any mistakes. It can only be used to help operators navigate better and easier.

How can ECDIS error be prevented?

ECDIS check-off cards should be checked to ensure that settings of anti-grounding cone, safety depth, safety contour, velocity vector, units, chart priorities and chart auto-load are correct. Check that both Primary and Secondary position sources are selected and that they are working correctly.

Is there any risk in over reliance on an ARPA?

Therefore, over-reliance on AIS information may cause great risk. All available means should be used to obtain safety related information for col- lision avoidance. ARPA should be used as this takes Radar data from your own ship and therefore is much more reliable.

How do you fix Ecdis?

1. Under the Chart Menu, select Manual Updates. …
2. Select “New” and next select the type of object that is to be added, e.g.: a buoy and select Accept New Object.

How do you set safety contour on Ecdis?

Safety Depth = Maximum Draft(static) + UKC (Company’s Policy) + Squat(Maximum) – Height of Tide. Safety Contour: Is calculated same as per Safety depth AND activates ALARM when depth is less. Deep Contour: Indicates the limit of sea area where shallow water effects occur that can affect a vessel.

Why is ECDIS anti grounding tool?

Anti-grounding function The final layer of safety is the anti- grounding function. This tool allows the ECDIS to scan ahead of the ship to a distance set by the user. It acts as a final layer of safety should a navigational danger be missed by the visual check or route scan.

What is the chart used for ECDIS?

There are two types of electronic charts that an ECDIS can display: Raster Navigational Charts (RNCs) and Electronic Navigational Charts (ENCs,) otherwise known as vector charts.

What are the required waypoint capabilities in ECDIS?

• ECDIS should be capable of displaying information for: …
• The effective size of the chart presentation for route monitoring should be at least 270. …
• The display should be capable of meeting colour and resolution recommendations of.

What is end of sea passage?

Passage (or “sea passage”) is the phase of a voyage between the seaward limits of pilotage waters at the ports or places of departure and destination, usually denoted by “Full away on passage” and “End of passage” entries in a bridge movement book. See more.

What is contingency Anchorage?

contingency anchorage is an safe anchorage place which is available during the voyage.. in other words, a place where a ship can be safely anchored in case of an emergency during the voyage..!!

What happens when an ECDIS performs a route validation or safety check?

Route check is a function of the ECDIS which checks the route and gives all the alarms for which the route is passing through any dangers. The 2nd mate then can check each of these alarms to see if the route needs to be amended. … 2nd Mate needs to check each of these errors one by one to ensure that our route is safe.

What is the difference between ECDIS and Rcds?

Unlike ECDIS where there are no chart boundaries, RCDS is a chart-based system similar to a portfolio of paper charts; Raster navigational chart (RNC) data, itself, will not trigger automatic alarms (e.g. anti-grounding). However, some alarms can be generated by the RCDS from user-inserted information.

What is Scamin in ECDIS?

The SCAMIN value of an object determines the display scale below which the object is no longer visible on an Electronic Chart Display and Information System (ECDIS). The purpose of SCAMIN is to reduce the amount of clutter displayed to the ECDIS user.
