The coil connector receives the low voltage cables from the ECM into one half of its component and the cable that connects directly to the coil into its other half. When these two parts are mated together securely, the connection is made and everything works properly.

What will a faulty ignition coil cause?

If an ignition coil is not working properly, your engine will likely misfire. A misfiring engine results in a jerking or sputtering feel when you are moving at normal speeds. When you stop, a misfire from a bad ignition coil may cause your vehicle to run roughly, vibrate or shake.

How do you tell if a coil is bad?

1. Engine misfires.
2. Rough idle.
3. A decrease in car power, especially in acceleration.
4. Poor fuel economy.
5. Difficulty starting the engine.
6. Check engine light is on.
7. Exhaust backfiring.
8. Increased hydrocarbon emissions.

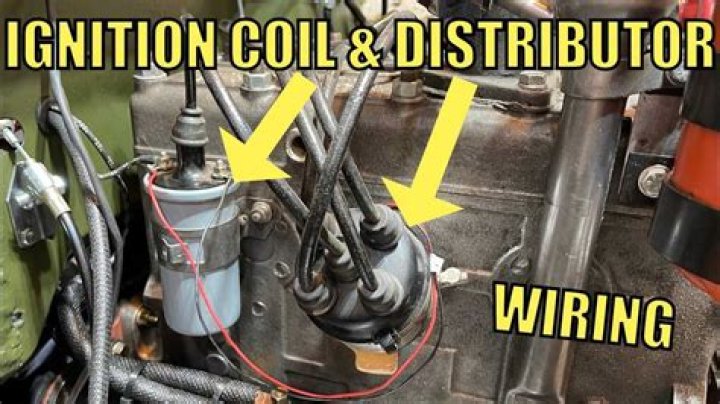

How can you tell if a coil wire is bad?

Symptom 1. If the engine stops and starts erratically while driving, or if it cuts out altogether and refuses to restart, you may have a bad wire between the coil and the distributor. Constant movement, caused by engines vibration and the wire’s tendency to flex slightly, fatigues the wire’s central core.

What are the symptoms of a bad ignition control module?

• Acceleration Issues. The vehicle may shake, vibrate or jerk when the gas pedal is pressed. There may be hesitation or lack of power during increases in speed.
• Temperature Problems. A faulty ignition module can cause a vehicle to overheat. …
• No Power. The engine may turn over without starting.

Will changing ignition coil improve performance?

Will ignition coils increase horsepower? – Quora. No, unless they’re somehow defective as installed. If you’re asking if aftermarket coils installed in a stock engine will increase horsepower, or reduce emissions, or increase gas mileage, or make the engine run smoother, the answer is no.

How can you tell when a spark plug is bad?

1. Your car is a rough starter. …
2. Your car is a rough idler. …
3. Your engine will sometimes misfire. …
4. Your engine surges. …
5. Your fuel consumption is higher than usual. …
6. Your car isn’t accelerating as it should.

Can spark plug wires cause misfire?

Bad spark plug wires can interfere with the electrical current flowing to the engine, making it difficult for the engine to complete the combustion cycle. An incomplete combustion cycle can cause an engine to misfire, which means your car may jerk, stumble, or briefly lose power.

What gives the ignition coil power?

The battery provides low voltage electricity to the ignition coil. The ignition coil converts the low voltage electricity into high voltage power in timed pulses. … That moves other distributor parts that cause the ignition coil to pulse, and sends the electricity down each spark plug wire in order.

Can bad spark plug wires cause stalling?

If there is any issue with the spark plug wires the engine spark can be disturbed, which can result in engine performance issues such as misfires, a reduction in power and acceleration, as well as a reduction in fuel efficiency. In severe cases bad cables may even result in engine stalling.

Article first time published on

Is an ignition coil the same as a spark plug?

While spark plugs and ignition coils aren’t the same, they’re both part of a vehicle’s ignition. Or rather, part of a gasoline-powered vehicle’s ignition system. Diesel engines don’t have spark plugs because diesel ignites via compression, not a spark. … That causes a magnetic field to form in the ignition coil.

Can a bad coil pack cause knocking?

Coil packs have absolutely no moving parts inside them. The only noise they can make is a (usually faint) ticking noise, if the arc is shorting through air straight to ground.

What will a bad ICM do?

A failing ICM may cause stalling because it hinders the engine from getting the spark it needs. However, take note that stalling may also be caused by other faulty engine components. So it’s best to take your vehicle to an auto repair shop for proper diagnosis.

What causes black carbon on spark plugs?

Carbon fouled Black, dry soot on the electrodes and insulator tip indicates a carbon-fouled plug. This can be caused by a dirty air filter, excessive driving at low speeds, too rich of a fuel/air mixture or idling your vehicle for too long.

Are aftermarket ignition coils worth it?

Aftermarket ignition coils are never worth the extra few bucks in savings. In a few cases, you can get away with using a cheap universal aftermarket part as long as it doesn’t affect: The engine’s performance. The vehicle’s safety.

Do new spark plugs make a difference?

Once your vehicle receives new spark plugs, you’ll notice how much better your car feels while driving. … Increased Fuel Economy – Misfiring spark plugs can reduce fuel efficiency by as much as 30%. New plugs that are replaced at regular intervals maximize fuel economy, saving you money.

Do upgraded coil packs do anything?

Whether working with coil packs or traditional canister style coils, the advantage of an upgraded coil makes for a hotter spark. Intensifying the heat makes it easier to burn the fuel and air mixture. This translates to improved performance.

What is a harness connector?

Connectors are the electro-mechanical devices used to form a continuous electronic signal to connect wire harnesses to a power source or circuit. On a basic level, connectors consist of male-ended plugs and female-ended jacks that can be joined together to relay an electronic signal.

What is a car connector?

The connector on the engine control unit has more than 100 wires. Connectors are critical to today’s cars. … Whenever a bundle of wires passes through or attaches to a component of the car that might have to be removed, there must be a connector there to allow for that removal.

How many terminals does a coil have?

Most coils have three or four terminals. Two terminals power the primary coil and the other terminal or terminals provide the high voltage from the secondary coil. The two primary terminals are usually labeled positive and negative.

How does a chainsaw coil work?

Electrical currents run through the ignition coil and transmit electricity to the spark plug. The electricity creates sparks within the spark plug, and the sparks ignite the fuel in the engine, enabling the chain saw to run. Testing the ignition coil at home is simple to do and requires minimal tools.

How do I know if my ignition coil is getting power?

Locate the positive or power wire attached to the engine coil. Check for power using a test light. If this wire has no power, then your ignition coil is not receiving current. You should check the wiring from your ignition switch to the coil for breaks in the wire and repair them.

Does my ignition coil need to be grounded?

Let me disagree with other answers: An Ignition Coil does not need to connect to ground. It needs to be capable of receiving electrical pulses on its input. It is , after all, a transformer and the primary winding is pulsed to make a HV spark on the Secondary winding.

Can cheap spark plug wires cause misfire?

As spark plugs are designed to create Sparks at predetermined intervals, Faulty spark plug wires will not transmit the required spark from the distributor, or ignition could resulting in an engine misfire. … Engine rough idling: Rough idling is a common engine problem that many factors can cause.
