What does a submersible pump control box do?
Daniel Foster What does a submersible pump control box do?

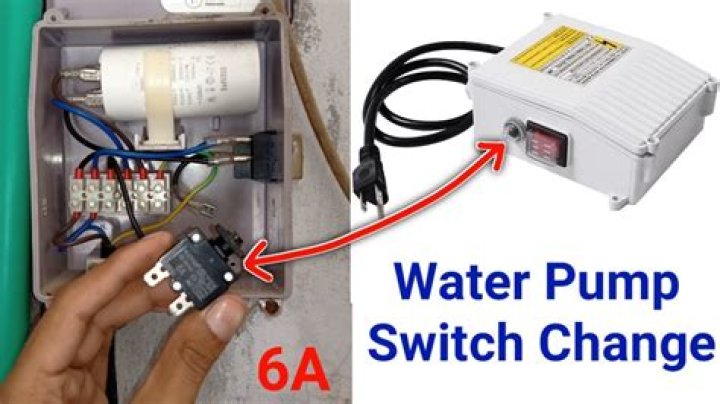

(3) Pump Control Box – protects submersible pumps from low or high voltage, a drop in water level, low yield wells, clogged well screens, malfunctioning pumps and motors, and rapid cycling. Pump control boxes usually have microprocessors that monitor power-line voltage and pump motor power draw.
What is the difference between a 2-wire and a 3-wire deep well pump?
The difference between a 2-wire and 3-wire pump is based on the type of motor that is used. It is called a “3-wire” due to the three “hot” leads, though there are actually four wires when you count the ground wire. The 2-wire motor requires no control box because is does not use a starting capacitor.
How much does it cost to replace a pressure switch on a well pump?
How Much Does it Cost to Replace a Well Pump Pressure Switch?
| Low $25 – $95 | Average Cost $100 – $175 | |
|---|---|---|
| Pro Installer | Pump Contractor | Either |
| Parts Cost | $25 – $40 | $25 – $50 |
| Access | Any | Easy to Moderate |
| Cost of Living | Low – Average | Average |
What happens when you replace a motor run capacitor?
Replacing a Motor Run Capacitor. The reduction in capacitance causes a drop of current in the start winding, which reduces the starting torque at certain rotor positions. This also has a side effect of reducing the power output of the motor, and creates a fluctuating rotating magnetic field within the motor which causes increased operating noise.
When to change the capacitor in a control box?
When the capacitor in the control box is used for years, capacitance will drop below the rated range, near end of life (10% less than rated). That is the time you should change the capacitor. Another reason to replace the start capacitor every 3 years is to prevent capacitor internal leaking that may cause an explosion. What? Explosion?
Can a bad capacitor be used to replace a start cap?
A bad run capacitor deprives the motor of the full voltage it needs to operate correctly. Both start and run capacitors are made the same way, but run capacitors are much more heavy-duty than start capacitors since a run capacitor is always used when the motor is running. For this reason, you cannot use a start capacitor to replace a run capacitor.
What happens when a capacitor is below its rating?
When capacitance is below its rating, the capacitor will supply less current to the motor during each start. This could cause serious problems to the motor due to a longer start process. Longer starts may result in motor burnout or overheating, and damage to the bearings. How do you test a pump capacitor?
When the capacitor in the control box is used for years, capacitance will drop below the rated range, near end of life (10% less than rated). That is the time you should change the capacitor. Another reason to replace the start capacitor every 3 years is to prevent capacitor internal leaking that may cause an explosion. What? Explosion?
A bad run capacitor deprives the motor of the full voltage it needs to operate correctly. Both start and run capacitors are made the same way, but run capacitors are much more heavy-duty than start capacitors since a run capacitor is always used when the motor is running. For this reason, you cannot use a start capacitor to replace a run capacitor.
When do I need to replace my electric motor capacitor?
If the electric motor hums without starting or has trouble starting, but will run if given a push (e.g. a spin of a fan blade – watch out for chopped-off fingers) the start cap is probably bad. If the starting capacitor is bulged, burned, has a hole in it, or has leaked oil, it is shot and needs replacement.
When capacitance is below its rating, the capacitor will supply less current to the motor during each start. This could cause serious problems to the motor due to a longer start process. Longer starts may result in motor burnout or overheating, and damage to the bearings. How do you test a pump capacitor?
