Photogates are a timing device that measure times of the changes in state of an infrared beam that is blocked by a flag of known length, as well as the times the beam is unblocked.

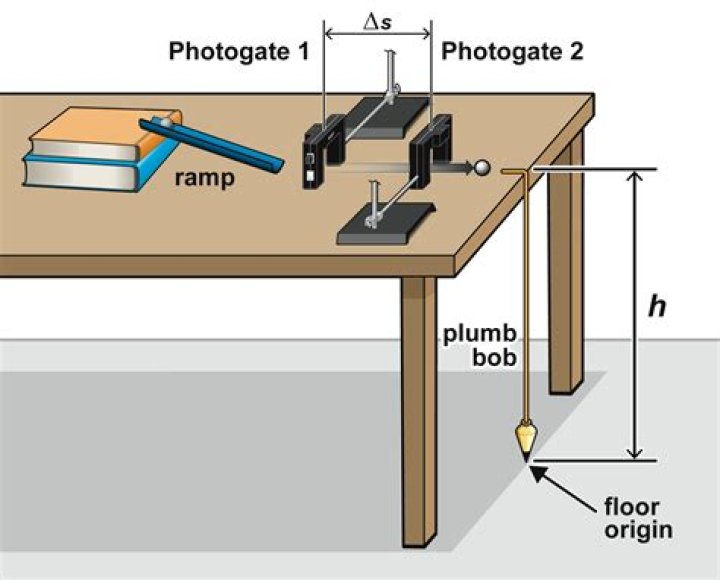

How does a Photogate measure acceleration?

1. Use default Object Velocity sensor channel on both photogates.
2. Collect data using time-based data collection.
3. Use the velocity and time measurements for each photogate to calculate the acceleration (Change in Velocity/Change in Time)

How accurate are Photogates?

Vernier photogates have an electronic timing resolution of 1 microsecond. You will, however, typically get measurements with as much as +/-25 millisecond variation.

How is Photogate used to measure velocity?

In this application a card attached to a moving object breaks the beam of the photogate timer providing the time for the card to pass. The length L of the passing card can then be divided by this time to yield the average velocity (or speed) of the passing object: Vavg = L/t.

Is a Photogate a motion sensor?

Motion Detectors and photogates can both measure motion, but both have advantages for certain experiments. … Depending on the photogate timing mode being used and the object passing through the gate, other measurements such as position, velocity, and acceleration may also be calculated.

How does a Photogate work physics?

The Photogate works by projecting an infrared beam to a sensor. When the beam is blocked the sensor stops sending a signal, which illuminates an LED on the top of the gate as well as triggering the data collection software to display a blocked message in the data collection area.

What is the uncertainty of a Photogate?

This means that the photogate (and software) can distinguish 2 events that occur 0.1 ms apart as separate events. So, suppose that we consider the uncertainty of a photogate event as 0.1 ms.

What does a motion sensor measure?

The Motion Detector is used to measure position, velocity, and acceleration of moving objects. The Motion Detector uses ultrasound to measure the position of carts, balls, people, and other objects.

What is Photogate Wikipedia?

photogate (plural photogates) (physics) A device that measures the time between events that interrupt an infra-red beam.

What value of precision do you record for the position of the Photogates?

The photogates you will be using record time in seconds with a precision of 0.1 millisecond (0.0001 seconds). They can record events up to 19.9999 seconds in length. It is important that you record all digits that appear on the timer for your measurements; don’t round off the displayed value.

Article first time published on

What is the purpose of the phototransistor in your Photogate circuit?

An IR photogate uses a phototransistor to measure the amount of light from an optical beam originating from an IR LED. Infrared light is chosen so as to minimize any signal from ambient light sources often found in our normal working environment.

Is velocity a speed?

Speed is the time rate at which an object is moving along a path, while velocity is the rate and direction of an object’s movement. … For example, 50 km/hr (31 mph) describes the speed at which a car is traveling along a road, while 50 km/hr west describes the velocity at which it is traveling.

How do you determine velocity?

To figure out velocity, you divide the distance by the time it takes to travel that same distance, then you add your direction to it. For example, if you traveled 50 miles in 1 hour going west, then your velocity would be 50 miles/1 hour westwards, or 50 mph westwards.

What is the instantaneous velocity?

The quantity that tells us how fast an object is moving anywhere along its path is the instantaneous velocity, usually called simply velocity. It is the average velocity between two points on the path in the limit that the time (and therefore the displacement) between the two points approaches zero.

What is a light gate?

The Light gate is a digital switch-type sensor most commonly used in timing experiments. The Light Gate has an infrared transmitter and receiver that will detect an object passing through the ‘gate’. They can be used singly or in pairs for time, speed , velocity, acceleration and event monitoring.

How do you set up a Photogate?

1. Tap the Mode box or choose Data Collection from the Sensors menu.
2. Choose the appropriate mode from the drop-down menu.
3. Set the requested distance variable(s) to match the experiment, such as the length of the object or the distance between gates. …
4. Select OK.

What is the energy owned by the ball bearing when it is attached to the free fall adapter?

What is the energy owned by the ball bearing when it is attached to the free fall adapter? Gravitational potential energy.

What is random and systematic error?

Random errors usually result from the experimenter’s inability to take the same measurement in exactly the same way to get exact the same number. Systematic errors, by contrast, are reproducible inaccuracies that are consistently in the same direction.

How do I set up Pasco Photogate?

First select the hardware setup icon. On the icon for the Smart gate, click on port 3 to configure this to be a connected photogate. Next, select the Timer Setup. For the available sensors, make sure the first photogate on the Smart Gate is selected and the second photogate on the Smart Gate is not selected.

What is the average acceleration formula?

Average acceleration is the rate at which velocity changes: –a=ΔvΔt=vf−v0tf−t0, where −a is average acceleration, v is velocity, and t is time.

What is a picket fence in physics?

The Photogate has a beam of infrared light that travels from one side to the other. It can detect whenever this beam is blocked. You will drop a piece of clear plastic with evenly spaced black bars on it, called a Picket Fence.

How does a force probe work?

The force probe measures the force interaction between it and any object pushing or pulling upon it . This is the same as when you put an object on a scale. Like a scale, the force probe cannot “know” the force with which the earth attracts the object. It can only measure how much of a push or pull it experiences.

What is a spark timer?

A spark timer is used to make accurate time and distance measurements for a moving object. It consists of an electronic circuit which creates, at regular intervals, a spark between two external needles. The interval between consecutive sparks can be set at either 1/10 or 1/60 of a second.

Can an object have an increasing velocity and a constant acceleration?

A object undergoing a constant acceleration has a constantly changing velocity. If the acceleration always points in the same direction as the velocity, the trajectory will be no different than if there were no acceleration, but in general acceleration will change the trajectory. Yes it can.

Can a motion sensor measure distance?

An ultrasonic motion sensor uses ultrasounds to detect moving objects. Just like bats, an ultrasonic sensor emits ultrasounds at frequencies from 30khz to 50kHz and then picks up their echo. These sensors can often measure the time a signal takes to return, and from that it can calculate the distance to the object.

Do motion sensors work in the dark?

The short answer is yes. Motion sensors do work in complete darkness, as none of the motion sensors mentioned above are reliant on using images to detect motion. Instead of images, PIR motion sensors detect changes in the level of received infrared. Likewise, ultrasonic motion sensors also do not require images.

Do motion detectors measure velocity?

Ultrasonic motion detectors only measure the position of an object that is directly in front of it, within about 3 meters (10 feet). It is intended to measure the velocity of an object or person moving toward or away from the sensor.

How close a measurement is to its accepted or true value?

Accuracy is a measure of how close a measurement is to the correct or accepted value of the quantity being measured. Precision is a measure of how close a series of measurements are to one another. Precise measurements are highly reproducible, even if the measurements are not near the correct value.

What does constant acceleration look like on a velocity graph?

When an object is moving with a constant velocity, the line on the graph is horizontal. When the horizontal line is at zero velocity, the object is at rest. When an object is undergoing constant acceleration , the line on the graph is straight but sloped.

What is instantaneous acceleration?

Instantaneous acceleration a(t) is a continuous function of time and gives the acceleration at any specific time during the motion. It is calculated from the derivative of the velocity function. Instantaneous acceleration is the slope of the velocity-versus-time graph.

What does a phototransistor measure?

The phototransistor is a semiconductor device that is able to sense light levels and alter the current flowing between emitter and collector according to the level of light it receives.
