The ground-fault circuit interrupter

What is the point of GFCI outlets?

A ground fault circuit interrupter (GFCI) can help prevent electrocution. If a person’s body starts to receive a shock, the GFCI senses this and cuts off the power before he/she can get injured. GFCIs are generally installed where electrical circuits may accidentally come into contact with water.

Are GFCI outlets really necessary?

The NEC requires GFCIs on all exterior and bathroom receptacles (another term for outlets). GFCIs are also required on all receptacles serving kitchen countertops. … In bedrooms, living rooms, and other areas where water fixtures are not found, regular outlets are fine—and they are still installed in today’s new homes.

What is the difference between a GFCI outlet and a regular outlet?

You can tell standard and GFCI outlets apart simply by looking at them, as their appearance differs. Standard outlets are smaller in size versus GFCI outlets. Standard outlets do not have testing buttons on the outlet face as GFCI outlets do.

Can you replace a regular outlet with a GFCI?

You can replace almost any electrical outlet with a GFCI outlet. Correctly wired GFCIs will also protect other outlets on the same circuit. While it’s common to find GFCI outlets in bathrooms and kitchens, there are GFCI outlet requirements.

Do all GFCI outlets have a reset button?

It’s easy! All GFCI outlets have a reset button (typically red) in the upper center of the outlet. Find the GFCI outlet near the outlet that tripped. You will be able to tell the problem outlet because the red reset button will have popped out.

Do all outlets in bathroom need to be GFCI?

Bathrooms – All bathroom receptacles should have GFCI outlets installed. … Any outlets within six feet of this sink (and the dedicated washing machine outlet) should be equipped with GFCI outlets. Outside – All outlets installed outside of your home should be GFCI outlets.

Should I use GFCI for TV?

Ground Fault Circuit Interrupters (GFCIs) are very important for minimizing shock hazards in kitchens, bathrooms, outdoors and other potentially wet areas. … However, it’s also possible for this to happen when a TV is hooked to a cable system because it’s cable shield is connected to Earth ground.

Can a GFCI be used without a ground?

Yes. A GFCI will work without a ground, though an external tester will not work. A GFCI should only be installed without a ground if no ground is available and it should be clearly marked “NO EQUIPMENT GROUND”.

Do kitchens need GFCI?

In kitchens, all outlets that serve countertop surfaces should be equipped with GFCI outlet protection. That would include any outlets on walls, behind wet areas (sinks, etc.) that have features such as countertop breakfast bars (open counter surfaces above sinks used to sit at on the opposite side).

Article first time published on

Do GFCI outlets save lives?

GFCI outlets save lives. In fact, GFCI’s may protect you from lawsuits. … Remember, if a plugged-in hair dryer falls into a wet sink, your child avoids being electrocuted because a GFCI outlet would instantly trip and save their life. They also prevent burns and home fires.

Is it OK to remove a GFCI outlet?

Yes, it can be done. The way it currently is: On the GFCI, power comes into the line terminals. There are two load terminals which let you use the GFCI’s protection on downstream outlets.

Can I install a GFCI outlet myself?

After you have removed the old outlet, you can begin replacing it with the new GFCI outlet. Using your needle nosed pliers or wire cutter, make sure the wires are straight and able to be put into the new GFCI outlet. As you begin, turn the outlet over. … You only want to be rewiring your GFCI outlet into the line screws.

Does a GFCI have to be the first outlet?

GFCI doesn’t have to be the first in line because placing the GFCI first in line will trip whenever something goes wrong with any of the outlets downstream. While placing the GFCI first in line will protect all the other outlets downstream.

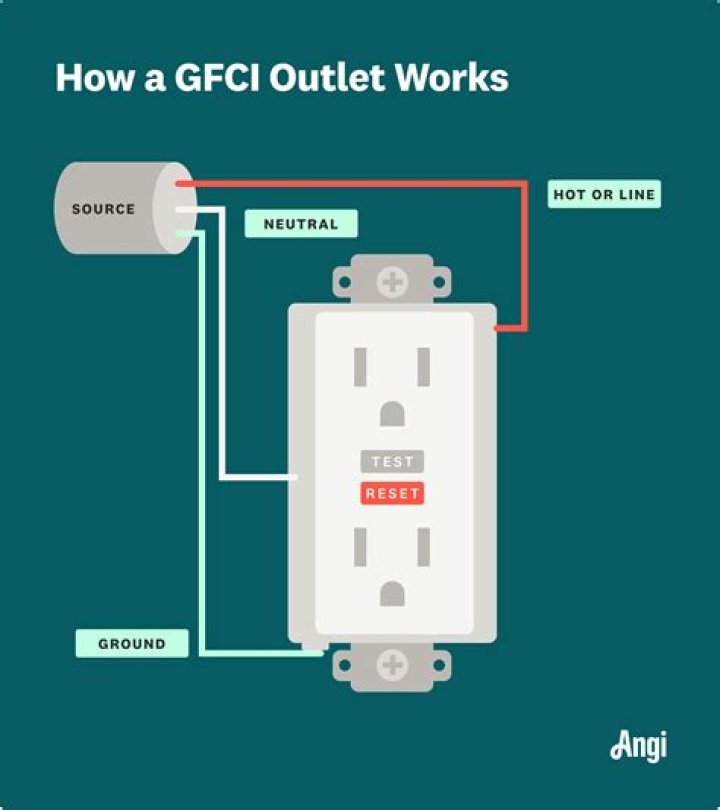

Does power go to line or load on GFCI?

The “line” wires are the incoming power from the breaker box and the “load” wires are the outgoing power that travels down the circuit to the next outlet.

Why do bathrooms need GFCI?

Electricity and water don’t mix Water and electricity are a recipe for disaster. Codes mandate strict guidelines for GFCI outlets throughout the United States. According to the National Electric Code (NEC), it requires a minimum of one GFCI-protected outlet per bathroom.

What is the electrical code for bathrooms?

The NEC requires that all outlet receptacles in a bathroom be GFCI protected. Outlet circuit must be 20 amps: The outlets in a bathroom should be served by a 20-amp circuit, separate from the lighting circuit, to provide power items such as curling irons, razors, and hairdryers.

How many plugs can a GFCI protect?

There’s no limit. A standard GFCI will protect up to 20 amps, drawn from any combination of receptacles, either the built-in one or any number of additional ones connected to its load terminals.

How do I know if a GFCI outlet is tripped?

1. Go to the kitchen, bathroom, garage, crawl spaces, unfinished basement and outdoor outlets and plug in the outlet tester. …
2. Locate the breaker box. …
3. Turn off the breakers one at a time. …
4. Search for any GFCI outlets. …
5. Press the test button to deactivate any outlets loading off the GFCI unit.

What does yellow light on GFCI mean?

GFCI or AFCI Outlet Power Has Tripped Off Joe, from what you have described the outlet with yellow light indicates that it has tripped and turned itself off. Therefore the outlet needs to be reset. To reset the outlet push the RESET button which is located in the center of the outlet.

What happens when a GFCI outlet won't reset?

1. Check if the other outlets are dead.
2. Check for the tripped circuit or a blown fuse.
3. Check the GFCIs.
4. Look for loose or bad connections.
5. Reinstall the connector.

Can I replace a two prong outlet with a GFCI?

Upgrade Two-Prong Outlets to GFCI And this is the only type of three-prong outlet you can replace two-prong outlets with without breaking NEC guidelines. This is because GFCI outlets can still protect against electrical shock, even without the grounding component.

Can an open ground cause a fire?

Is an Ungrounded Outlet Dangerous? … Ungrounded outlets increase the chance of: Electrical fire. Without the ground present, problems with your outlet may cause arcing, sparks, and electrical charge that can spawn fire along walls or on nearby furniture and fixtures.

Is there a difference between GFI and GFCI?

GFCI vs GFI. Ground fault circuit interrupters (GFCI) and ground fault interrupters (GFI) are the exact same device under slightly different names. Though GFCI is more commonly used than GFI, the terms are interchangeable.

Does a refrigerator need to be on an arc fault breaker?

So, the answer is, Yes, circuits that supply outlets for refrigerators do need to be arc-fault protected, with very few exceptions. There are a few rooms where it is not required, if your state still uses NEC-2014, or if your state does not use NEC.

How much does it cost to install a GFCI outlet?

The national average materials cost to install a gfci outlet is $19.71 per receptacle, with a range between $17.68 to $21.74. The total price for labor and materials per receptacle is $154.04, coming in between $140.26 to $167.83.

Does a microwave need a GFCI?

A GFI or GFCI outlet is needed if the microwave is located less than 6 feet from a water source such as the edge of the sink, toilet, shower, etc. It is also needed if located outdoors, garages, kitchen counter tops, near laundry, utility sinks, wet bar sinks and near swimming pools.

Does a stove need to be GFCI protected?

3 Answers. No in any case. Electric range circuits and receptacles do not require GFI protection, and if this is a regular receptacle for a gas range it is behind the range and not serving the counter, so again ,no GFI required.

Does a garage need GFCI outlets?

GFCI protection is required for 125-volt to 250-volt receptacles supplied by single-phase branch circuits rated 150 volts or less to the ground. GFCI receptacles are required in bathrooms, garages, crawl spaces, basements, laundry rooms and areas where a water source is present.

How many lives have been saved by GFCI?

During this time OSHA estimates that between about 650 and 1,100 lives have been saved because of it. GFCI’s can be installed permanently (i.e. GFCI receptacle) or used temporarily to protect workers while performing certain tasks. On a construction site the presence of electrical hazards are very prevalent.

How long does a GFCI outlet last?

Electrical safety check All GFCI outlets have one little-known flaw: their circuitry eventually wears out, usually after about 10 years, at which point they no longer function properly.
