What does 40 60 mean on a pressure switch?

For example on a 40/60 pressure switch (most popular option) a home’s water pressure sits at 60 psi. When someone opens up a faucet, it goes from 60 psi down to 40 psi. The pressure switch senses the drop to 40 psi and that’s when it sends an electrical signal down to the pump to turn on.

What precharge pressure should I have on a 40 60 well switch?

38 psi
If your well tank is on a 40/60 pressure switch, your pressure setting should be 38 psi. This pressure represents the tank empty of any water, as when there is water within the tank, the pressure will increase.

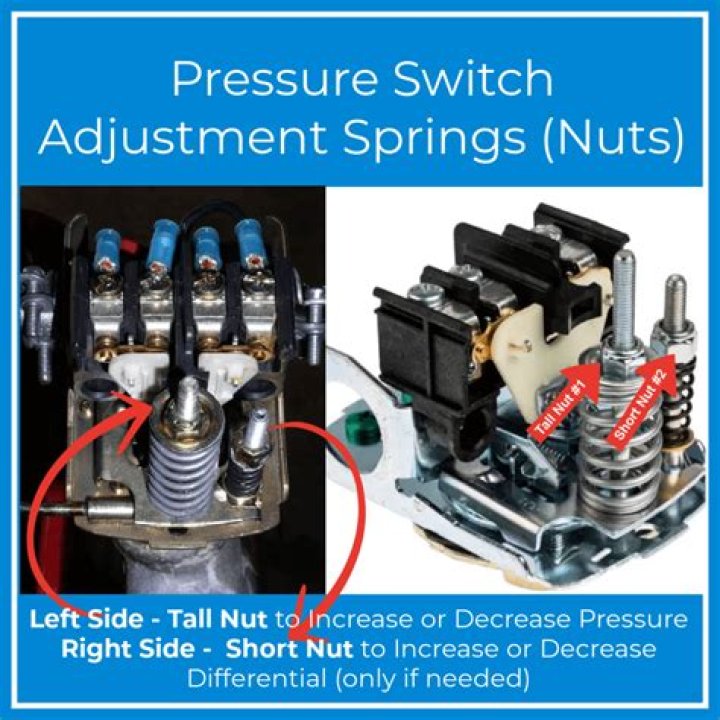

Can you adjust a 40 60 pressure switch?

The cut-on/cut-off is 40/60 psi if that is what the factory setting is on the pressure switch. A 20 psi differential is standard. You can adjust it usually by turning the adjusting nut(s) on the pressure switch clockwise to increase pressure or counter-clockwise to decrease pressure.

Do I want a 30 50 or 40 60 pressure switch?

The choice is more personal preference than anything else. If you are satisfied with your house’s water pressure with a 30/50 pressure switch, there is no reason to change. In some houses with second-floor bathroom fixtures, especially showers, a 40/60 pressure switch may serve better.

Do I need a 30 50 or 40 60 pressure switch?

What PSI should water pressure tank be?

between 40 and 60 psi
Servicing Your Pressure Tank A home’s average water pressure should lie between 40 and 60 psi. For those who need to increase this number: Turn off the circuit dedicated to the well pump. Test the air fill valve with an air pressure gauge and see where your pressure lies.

What’s the pressure on a 40 / 60 pressure switch?

When you open up a faucet the pressure drops. For example on a 40/60 pressure switch (most popular option) a home’s water pressure sits at 60 psi. When someone opens up a faucet, it goes from 60 psi down to 40 psi. The pressure switch senses the drop to 40 psi and that’s when it sends an electrical signal down to the pump to turn on.

When to use the low pressure shut off switch?

This would cause the pressure in your line to drop and your pump to kick on and stay on which could lead to flooding of your home or business. The low cut off pressure switch would turn the pump off if the pressure drops 10 psi below the cut-in pressure (low number). Think of it as a nice piece of protection.

What happens when pressure drops to 40 psi?

The pressure switch senses the drop to 40 psi and that’s when it sends an electrical signal down to the pump to turn on. When you turn the faucet off, the pump will continue to pump until the pressure gets back to 60 psi and that’s when the pressure switch will send a signal to your pump to turn off.

What does the second number on a pressure switch mean?

The second number tells the pressure switch to send a signal down to your pump to turn off. You may hear the terms “cut-in pressure” and “cut-off pressure” = cut-in pressure / cut-off pressure. When you open up a faucet the pressure drops. For example on a 40/60 pressure switch (most popular option) a home’s water pressure sits at 60 psi.

When you open up a faucet the pressure drops. For example on a 40/60 pressure switch (most popular option) a home’s water pressure sits at 60 psi. When someone opens up a faucet, it goes from 60 psi down to 40 psi. The pressure switch senses the drop to 40 psi and that’s when it sends an electrical signal down to the pump to turn on.

What does a low cut off pressure switch do?

A low cut off pressure switch turns the pump off in the event that the water pressure in your lines drops lower than the cut-in pressure (low number). Imagine that there was a leak or break in your water line.

What is the low pressure cut off range?

The adjustable differential range is 15 psi to 30 psi and the cut-out range is 20 psi to 65 psi. The low-pressure cut-off (auto-start-off) operates at approximately 10 psig below the cut-in and will turn off the pump.

The pressure switch senses the drop to 40 psi and that’s when it sends an electrical signal down to the pump to turn on. When you turn the faucet off, the pump will continue to pump until the pressure gets back to 60 psi and that’s when the pressure switch will send a signal to your pump to turn off.
