What causes water heater elements to burn out?

The most common cause of burned out elements on new water heater installations or new element replacements is DRYFIRE. This happens because the installer fails to open a hot water faucet while the heater tank is filling with water and therefore purging or bleeding air from the system.

How often should you replace your electric water heater?

Most systems can last from 15 to 20 years. If a water heater is older than 20 years, it’s usually better to put in a new system, even if the current water heater is working adequately. A decline due to age is going to start soon, and it’s best to get ahead of it with a new water heater.

How do you replace an electric water heater heating element?

Unscrew the heating element from the tank using a heating element socket. Pull the heating element out of the tank. Insert the new heating element in the tank and tighten it firmly. Reconnect the wires to the new heating element and tighten the screws. Reinstall the plastic shield over the thermostat and heating element.

How long does an electric water heater heating element last?

Heating elements typically last around ten years or less depending on the water condition, operating temperature and frequency of use. This video shows detailed step-by-step procedure for how to replace an electrical heating element on an electric hot water heater.

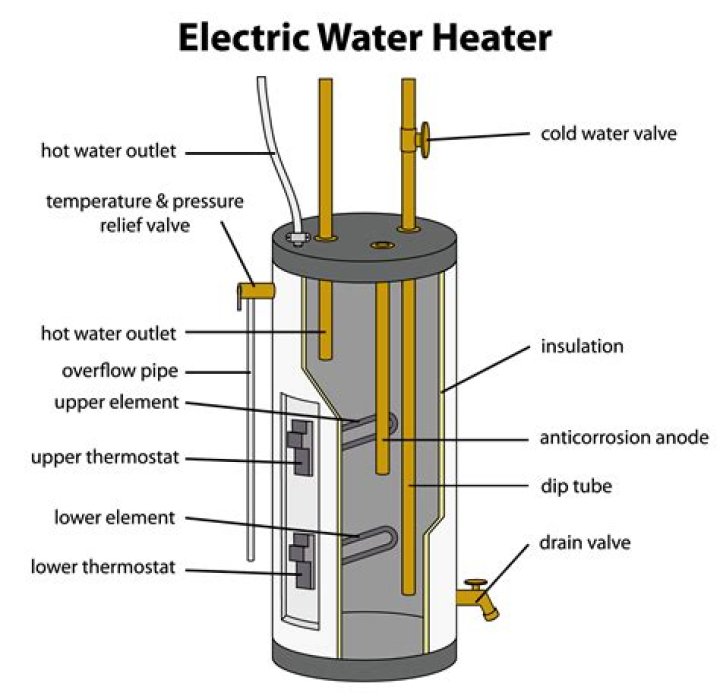

When to use the upper heating element in a water heater?

The upper heating element really only contributes when there is a high hot water demand and only serves to heat water in the upper portion of the tank.

Can you run a water heater with only one element?

So, can you run a water heater with only one element? Yes, a water heater can still run if the bottom element quits. However, the water heater won’t run efficiently and likely won’t produce enough hot water to satisfy your family’s needs running on just the top element.

How do you fix an electric hot water heater?

Open the panel and push the reset button. If the button doesn’t make a clicking sound or you still don’t have power after pressing it, then your high-temperature cutoff is probably bad. Call an electric water heater repair person.

How do you replace the heating element in a hot water heater?

When replacing a water heater element, always replace the rubber gasket to prevent leaks. Insert the gasket over the threads of a screw in element, or around the base of a flange element. With the gasket in place, install the new element by reversing the removal process and turning the element in a clockwise direction.

How much resistance should a hot water heater element have?

Since we know that the hot water electrical circuit feeds 220 VAC to the 16 ampere heating element the resistance of that element is equal to 13.75 ohms. We can round that number up to 14 ohms.

What is the best water heating element?

Obviously, casting aluminium heating element is the best one which could bear the highest water pressure. According to data gathering, it shows their heat efficiency as below: Casting aluminium heating element : 97%. Cooper heating element or stainless steel one (90% ) Glass heating element (98%) Bare wire heating element (98%)
