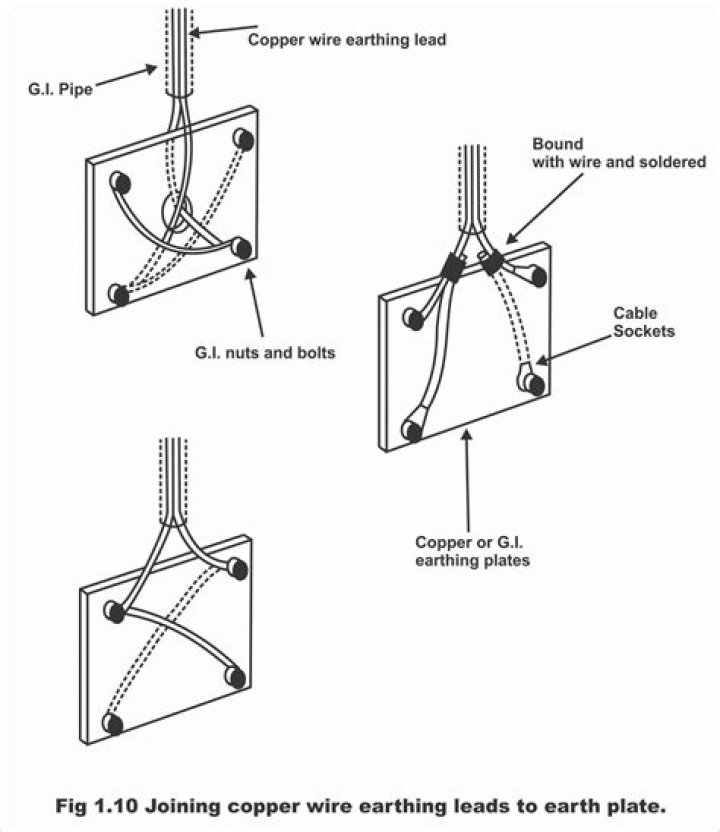

Eventhough copper wires are generally used as earthing lead, copper strips are preferred for high installation as it can carry higher values of fault current due to its wider area.

Can I use 1.5 mm cable for Earth?

Use 2.5mm twin and earth cable for all single and double sockets as 1.5mm cable can only handle 14 to 20 amps at 230 volts.

Which Colour wire is used for earthing?

WireColourLiveBrownNeutralBlueEarthYellow and Green

How do I choose earthing cable size?

MaterialMaterial Constant (k)Aluminium126

What is 10mm cable used for?

10mm earth cable is suitable for fixed wiring of electrical equipment, lighting and household appliances Usually used for grounding wires.

What is the minimum wire gauge for earthing cable?

Generally, the size of the copper wire used as earth continuity conductor is 3 SWG. Earth wires smaller than 14 SWG must not be used. The minimum size of the earth lead should not be smaller than 8 SWG.

What is 16mm cable used for?

16mm 3 Core Armoured Cable is a type of electrical cable used to supply mains voltage electricity for a variety of uses. As this cable is armoured, it is suitable for underground installation as well as being attached to structures or buildings using Cable Cleats.

Which color wire is used for earthing in India?

The standard for electrical wiring color code in India is as follows. According to the old standard, Red is used for live (or line) power conductor, Black for neutral and Green for protective earth or ground.

What is the size of earth wire?

The size of the earth wire is determined by the ampere capacity of the service wires. The minimum size of earth wire for the light circuit is 1 mm square for copper and 1.5 mm square for aluminum.

What is 10mm twin and earth cable used for?

10mm twin and earth cable is often used for shower installations and cooking circuits. It is important that a suitably qualified professional assesses the requirements of the work as choosing the incorrect and wrong size of cable could lead to distressing consequences.

Article first time published on

What is 6mm electric cable used for?

Typically used for supplying internal power to appliances such as electric showers, cooker and induction hobs, 6mm twin and eath cable is flat for easier installation into plaster.

What size is 10mm cable?

CSAOverall DimensionsApprox Measurement acrossbundle of strands (‘diameter’)4mm²11.9mm x 6.25mm2.56mm6mm²13.5mm x 7mm3.13mm10mm²17.1mm x 10mm4.05mm

What diameter is 16mm2 cable?

Nominal Overall Diameter mmApprox Weight Kg/100mt16mm29.12125mm210.63035mm211.64050mm21352

How many kW can 16mm cable take?

“Using the TLC volt-drop calculator, it gives a max of 21Kw for 17metres of 16.0mm XLPE SWA Hope this helps, Dave.” 21 kW divided by 230 V gives ~91.3 A which exceeds the rating of 89 A given for Method C in table 4D4A….

How many amps can 16mm cable take?

The current carrying capacity of 16 sq mm copper cable with PVC insulation is 61 amperes for single phase AC or DC. For XLPE insulated 16 sq mm cable current carrying capacity is 81 amperes.

What is the difference between SWG and AWG?

The main difference between SWG and AWG is where they originated from. SWG was derived from the British Standard Wire Gauge, dropping the British part eventually. … SWG has 50 steps, resulting in a thinnest wire diameter of 0.001 inches. AWG only has 40 steps and the smallest wire diameter under it is 0.003 inches.

How thick should an earth cable be?

1.5 mm is fine. You don’t need to use both of the earth terminals in a normal domestic environment though, it’s only used in situations where ‘high integrity’ earthing is needed, usually where there are lots of computers on the circuit. Great!

How thick does earth wire need to be?

CEI 64–8 (IEC 60364) rules that the earth wire must be of the same size of the power wire, up to 16 sqmm. for wires bigger than 16 sqmm and lower than 35 sqmm, the earth wire must be 16 sqmm. The main reason of giving earthing to a electrical or electronic equipment is to protect human from electrical shock.

What is green cable used for?

Green: The green wires are the grounding/earthing wires in the circuit. The green wire can be connected to another green wire only. The grounding wire is not meant for lights or fans and is used mainly for socket purposes such as in the case of AC’s, geysers and other heavy load appliances.

What is electrical white wire?

The white wire is the “neutral” wire, it takes any unused electricity and current and sends it back to the breaker panel. The green wire (or it can sometimes be uncolored) wire is the “ground” wire, it will take electricity back to the breaker panel, then outside to a rod that’s buried in the ground.

Is the black wire neutral or earth?

Black (neutral) Red (live) Green and yellow (earth)

How many amps will 2.5 mm twin and earth carry?

A 2.5mm cable is capable of supplying around 23-25 amps depending on the method of installation, so is fine, safe and compliant on a 20amp circuit breaker.

How many amps can 1.5 mm twin and earth carry?

Depending on the installation method used, the 1.5mm cable has a maximum rated capacity of between 14 and 20 amps, so its right on the limit.

What is 4mm twin and earth cable used for?

4mm twin & earth is a triple insulated core which contains a bare earth, and a brown live and a blue neutral sheathed conductor. It is commonly used for indoor domestic wiring projects including lighting, low supply hobs and cookers where an increased amount of power is required.

What amps can 10mm cable take?

Cable sizeRating in Amps2.5mm274mm376mm4710mm65

What is a 6m cable?

The Best Electrical Twin & Earth Grey – 6mm is a standard house wiring cable with a grey PVC outer sheath. This type of cable is mainly used for sub mains applications.

What is 2.5 twin and earth cable used for?

2.5mm Twin and Earth is commonly used as indoor domestic cable. The most common use for this type of cable is for circuits that provide power to sockets. It is made up of two cores and an earth core which must be covered with the identifying green and yellow sleeve when installed.

What size cable is twin and earth?

Standard metric twin and earth cable sizes are: 1mm² 1.5mm² & 2.5mm² which have solid (non-stranded) conductors. 4mm², 6mm², 10mm², 16mm² and higher have stranded conductors. 1.5mm² is used typically for domestic wiring circuits and 2.5mm² twin and earth is used in domestic power circuits.

How do I know if my cable is 2.5 mm?

And cables for sockets on a ring or radial main are normally a 2.5mm cable. This measurement is the cross-sectional area of the individual wires within the cable – the actual area of the exposed face of the wire. The size of the cable should be printed on the sheath.

What is 6mm cable rated at?

2 Answers from MyBuilder Electricians. 6mm twin and earth cable (which this almost certainly is) can be backed up by a maximum of a 32a MCB, even lower if other factors are involved. You’ll need that 10mm cable and a 40a MCB unfortunately as your shower is going to draw over 32a.

How thick is 25mm2 cable?

Cable size25.0mm²Max conductor resistance (Ohm/per km)0.85 Ohm/kmOuter Cable diameter (mm)10.35 – 10.65mm²Minimum Insulation Thickness (mm)1.25mmInsulation TypeSoft PVC according IEC 60332-1
