Twisted Pair cables are used in telephone lines to provide data and voice channels. The DSL lines make use of these cables. Local Area Networks (LAN) also make use of twisted pair cables. They can be used for both analog and digital transmission.

What is the purpose of twisted pair cable?

Twisted-pair cable is a type of cabling that is used for telephone communications and most modern Ethernet networks. A pair of wires forms a circuit that can transmit data. The pairs are twisted to provide protection against crosstalk, the noise generated by adjacent pairs.

What are the three advantages of twisted pair cable?

• Twisted-pair cable and Twisted-pair transmission own obvious advantages such as function / price rate.
• The Advantages of the Twisted-pair transmission.
• 1) Long transmission distance, High transmission quality.
• 2) Wiring convenient, high using rate of cable.
• 3) Strong anti-interference ability.

What are the examples of twisted pair cables?

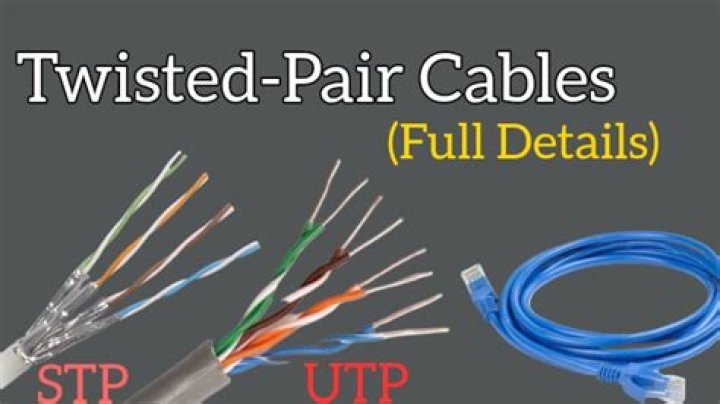

There are two main types of twisted pair cables, unshielded twisted pair (UTP), and shielded twisted pair (STP), which contains each pair of wires within an aluminium foil shield for further isolation.

What is the difference between twisted pair cable and coaxial cable?

The Major Differences Between Coaxial Cable and Twisted Pair Coaxial cables are generally used for cable television and internet connections. … Twisted pair cables are thinner and less expensive. Coaxial cables are better shielded from crosstalk. Twisted pair cables provide high transmission rates.

Why does twisted pair cable reduce noise?

In order to help eliminate this electromagnetic interference, the wire is twisted together to create a canceling effect. By twisting wires that carry an equal and opposite amount of current through them, the interference/noise produced by one wire is effectively canceled by the interference/noise produced by the other.

Does twisting wires reduce inductance?

Reduced inductance L=N2⋅μ⋅Ael by twisting the wires together you are reducing Ae the enclosed area and so the inductance.

What is the main advantage of using a shielded twisted pair cable for a network connection?

Advantages of shielded twisted pair cable (STP): Shielding reduces the chance of crosstalk and provides protection from interference. It offers better electrical characteristics than unshielded cables. It can be easily terminated with a modular connector.

What type of connector do twisted pair cables on computer networks use?

The standard connector for unshielded twisted pair cabling is an RJ-45 connector. This is a plastic connector that looks like a large telephone-style connector (See fig. 2). A slot allows the RJ-45 to be inserted only one way.

What is not a disadvantage of twisted pair cable?

Here are the list of main disadvantages of twisted pair cable: It is incapable carrying a signal over long distances without the use of repeaters only because of high attenuation. It is not suitable for broadband applications only because of its low bandwidth capabilities.

Article first time published on

Can you transmit a video signal over twisted pair wire?

Answer: Video signal can be transmitted over twisted pair wire.

What are advantages of using twisted wire and fiber optic cable?

• Greater Bandwidth. Copper cables were originally designed for voice transmission and have a limited bandwidth. …
• Faster Speeds. …
• Longer Distances. …
• Better Reliability. …
• Thinner and Sturdier. …
• More Flexibility for the Future. …
• Lower Total Cost of Ownership.

What will happen if twisted pair cable is used instead of coaxial cable?

The biggest advantage to twisted pair cabling is in installation, as it is often thinner than coax. However, because they are thinner, they can not support very long runs like coax cables. … These tightly twisted designs cost less than coaxial cables and provide high data transmission rates.

What is twisted pair cable Geeksforgeeks?

Twisted pair cables have two conductors that are generally made up of copper and each conductor has insulation. These two conductors are twisted together, thus giving the name twisted pair cables. One of the conductors is used to carry the signal and the other is used as a ground reference only.

Why is fiber optic better than twisted pair or coaxial cable?

Fiber optic cable transmits data as pulses of light go through tiny tubes of glass, the transmission capacity of which is 26,000 times higher than that of twisted-pair cable. When comparing with coaxial cables, fiber optic cables are lighter and reliable for transmitting data.

When should you twist wires?

To minimize electromagnetic interference and resist external interference, twisting the wires is necessary. By twisting the wires, some part of the noise signals goes in one direction (sending) while the other part goes in the opposite direction (receiving).

Should you twist power cables?

Generally its a good idea to twist the wires and reduce the radiation and susceptibility to noise.

What cables are used for Internet?

Ethernet cables connect computers in a Local Area Network, or LAN, within a small area such as a business, college campus or even your home. The wireless router common in many homes is connected to an Ethernet cable from the internet provider.

Which cable is used in LAN?

CategorySpeedBandwidthCat825/40Gbps2000MHz

Which cable is used in networking?

Different types of network cables, such as coaxial cable, optical fiber cable, and twisted pair cables, are used depending on the network’s physical layer, topology, and size. The devices can be separated by a few meters (e.g. via Ethernet) or nearly unlimited distances (e.g. via the interconnections of the Internet).

What are the advantages and disadvantages of shielded twisted pair cable?

➨It has higher cost per foot of wire. ➨Shield of STP cables must be grounded properly otherwise it acts like an antenna and picks up unwanted signals. ➨There is no improvement in segment length despite its thick and heavier construction. Also refer advantages and disadvantages of UTP cable >>.

What is the benefit of shielded twisted pair cable quizlet?

What is a benefit of using shielded twisted-pair cabling? The shield reduces the potential for electromagnetic interference.

Where is shielded twisted pair cable used?

Techopedia Explains Shielded Twisted Pair (STP) The additional covering in STP cable stops electromagnetic interference from leaking out of or into the cable. STP cables are often used in Ethernet networks, particularly fast-data-rate Ethernets.

What are the color used in twisted cable?

There are five (5) main colours used in twisted pair cables, these are Blue; Orange*; Green*; Brown and Slate.

Which cable type offers the most security?

Shielded twisted-pair is the most secure type of cabling listed. It adds an aluminum sheath around the wires that can help mitigate data emanation. By far, fiber-optic would be the most secure type of cabling because it does not suffer from data emanation because the medium is glass instead of copper.

What does rg59 stand for?

RG (for radio guide) was originally a unit indicator for bulk radio frequency (RF) cable in the U.S. military’s Joint Electronics Type Designation System. The suffix /U means for general utility use. The number 59 was assigned sequentially.
