What are the positions on a sand filter?

The FILTER Position: On sand filters, water enters at the top of the tank, and for DE filters, water enters at the bottom of the tank. After passing through the filter media, the water exits the tank again into the multiport valve, leaving through the “RETURN” port, and back to your pool.

What are the 2 types of sand filters?

There are three main types; rapid (gravity) sand filters, upward flow sand filters and slow sand filters. All three methods are used extensively in the water industry throughout the world.

Do I fill my sand filter with water?

Once the old sand has been removed, hose out the inside of the tank to clean the filter out. Once this water is drained, replace the drain cap and fill the tank 2/3 full of water. This is to protect the lateral assembly while the new sand is added.

Is sand a good filter?

Sand is cheap, plentiful, and when it is a particle, it works well as a filter medium. Sand filters are usually filled, sealed and the sand is forgotten.

Does sand filter reduce TDS?

The two parameters TC and TSS obtained in the filtrate from 0.05 mm slow sand filter were significantly lower (>0.05) than the recommended standards for the filtrate to be used for irrigation. Denitrification process could have contributed to the reduction of TDS to the acceptable level for irrigation.

How full should you fill a sand filter?

Fill tank about 1/2 way full with water to provide a cushion when the sand is poured in. This will help protect the laterals.

How many valve positions does a sand filter have?

If you use a sand filter to maintain your above-ground or in-ground pool, you may have noticed that the handle on the multiport head has either 6 or 7 positions that the filter can be set to.

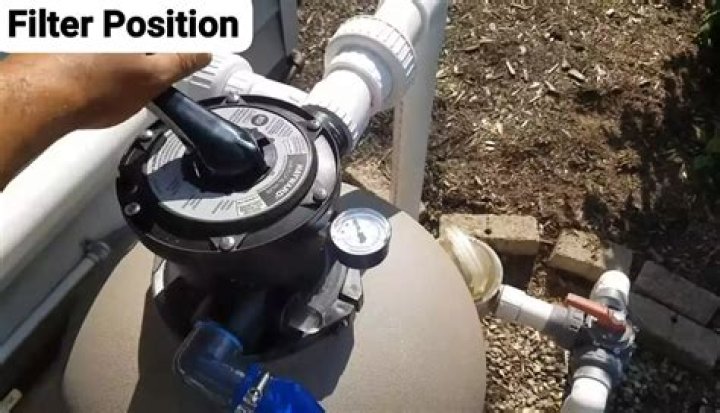

When do you use the filter position setting?

This setting is used to filter the water through the sand. It is the pool filter valve positions setting that your filter will spend most of its life on. Mostly it will be used when the pool pump runs on your timer to keep the water in the pool clean. The filter setting is also the one you will use the most when vacuuming your pool.

Can a de filter be used as a sand filter?

So everything written above also applies to a DE filter system. DE filters are not backwashed as a frequently as sand filters however.

What are the different positions of a pool filter?

You will soon understand what all of the pool filter valve positions mean. There are normally 6 different pool filter settings on a multiport valve which are Filter, Backwash, Waste, Rinse, Recirculate and Closed. Some valves also have an additional 7th position which is Winterize.

If you use a sand filter to maintain your above-ground or in-ground pool, you may have noticed that the handle on the multiport head has either 6 or 7 positions that the filter can be set to.

Where does the water come from in a sand filter?

1.) “Filter” – This setting is the most obvious, since it is the one that the filter operates in 99% of the time. When set in this position on the selector the water comes into the “inlet” directly from the pump via plumbing, or a high pressure hose on an above-ground pool.

When to turn on sand filter in pool?

Run filter more in hot weather or with heavy bather load. As a general rule of thumb, turn your sand filter on 1 hour per 10° F of weather. Please note: Pool calculations below have been rounded off to be used as a quick guide for easy pool maintenance. For exact calculations please use our pool volume calculator.

Which is the least expensive sand filter for a pool?

Sand filters are the least expensive of the three types of filters but only filters particles down to 20 to 40 microns in size. Operating your sand filter would require some knowledge but still one of the easiest ways to keep your pool clean.
