What are the four types of the culvert according to construction?

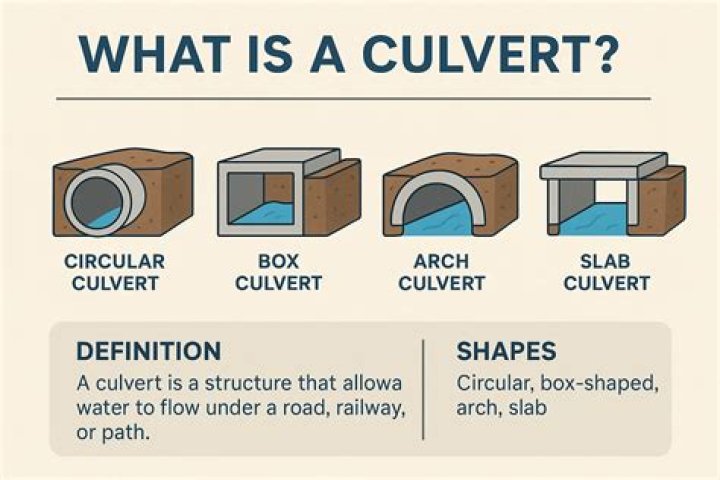

Following are the types of culverts generally used in construction:

• Pipe Culvert (Single or Multiple) Pipe culverts are widely used culverts and rounded in shape.
• Pipe Arch Culvert (Single or Multiple)
• 3. Box Culvert (Single or Multiple)
• Arch Culvert.
• Bridge Culvert.

What type of culvert is best?

Aluminum and galvanized steel are popular culvert building materials. Corrugated metal is strong, reasonably affordable, and can be adapted to resist corrosion through galvanization.

Which foundation is used for culvert?

Box culverts are made up of concrete and especially, RCC (Reinforced Concrete). The most challenging part in constructing a box culvert is that dry surface is needed for installing it. However, due to the strength of the concrete floor, water direction can be changed when a large amount of water is expected.

What is the cost of a culvert?

Most people hire a professional when installing a culvert for their driveway, which, depending on the length and type of pipe required, can cost anywhere between $800 to $8,000. depending on complexity.

How do I choose a culvert size?

Culvert lengths depend on how wide you want your roadway, as well as the diameter of the culvert and the depth of the dirt fill placed on top of the culvert to make the earthen bridge. Culverts should be set perpendicular (90 degrees) to the road’s centerline.

What are the main components of culvert?

Followings are some major components of a culvert:

• Pavement.
• Road Embankment.
• Headwall.
• Wingwall.
• Apron.
• Crown.
• Culvert Pipe.
• Culvert Inlet.

What is the maximum length of slab culvert?

Meaning of Culvert: In case of highway where culverts are constructed to cross the small distributary etc., the span length may be about 4.5 m. Similarly, in case of railway track the maximum span length can be about 6 m and should not exceed this limit.

How much do culverts cost?

What is the purpose of a culvert?

Culverts function primarily as hydraulic conduits, conveying water from one side of a roadway or similar traffic embankment to the other; therefore, culverts serve the dual purposes of functioning as hydraulic structures as well as acting as traffic load bearing structures.

How much does a small culvert cost?

2.7 Culvert costs Culvert costs vary with the location, pipe material and the pipe size. Typical costs would be in the range of $2,500 to $25,000 depending on size and location.

What are the different types of culverts used in construction?

Following are the types of culverts generally used in construction: 1. Pipe Culvert (Single or Multiple) Pipe culverts are widely used culverts and rounded in shape. The culverts may be of single in number or multiple. If single pipe culvert is used then larger diameter culvert is installed.

How big is a single pipe arch culvert?

If single pipe culvert is used then larger diameter culvert is installed. If the width of channel is greater than we will go for multiple pipe culverts. They are suitable for larger flows very well. The diameter of pipe culverts ranges from 1 meter to 6m. These are made of concrete or steel etc.. 2. Pipe Arch Culvert (Single or Multiple)

What are the disadvantages of a culvert pipe?

These pipes can withhold any tensile stresses and compressive stresses. The crossing of water is under the structure. The main disadvantage of pipe culvert is that it can be easily corroded at the crown because of bacteria‘s organic matter and release of harmful gas, which is known as Crown corrosion.

What should the thickness of a culvert be?

The thickness of R.C.C slab should be kept within the range of 1.25 to 2.5 m. These culverts are constructed in the form of one or more rectangular or square openings. The box culverts usually made of precast R.C.C. materials.

What are the different types of culverts used for?

Box Culvert Single or Multiple. Box culverts are used to transmit water during brief runoff periods. Theses are usually used by wildlife because they remain dry most of the year. They can have an artificial floor such as concrete. Box culverts generally provide more room for wildlife passage than large pipe culverts.

What are the features of pipe arch culverts?

The features of pipe arch culverts are: Box culverts are made up of concrete and especially, RCC (Reinforced Concrete). The most challenging part in constructing a box culvert is that dry surface is needed for installing it. However, due to the strength of the concrete floor, water direction can be changed when a large amount of water is expected.

How big is a slab or pipe culvert?

Here I have described Slab Culvert, Box Culvert, Pipe Culvert, Arch Culvert with images to make you better understand. So to get full knowledge please read it carefully one by one. According to NRS 2045, bringing structures of span less than 6m are referred on culverts structure and with span in between 6 to 20 m are referred on the minor bridge.

Is there a minimum velocity for a culvert?

No minimum velocity 3. No minimum pipe slope; 10% max for concrete, 20% max for corrugated metal and thermoplastic pipe 4. The headwater and tailwater conditions determine which equations (nomographs) are used for design 5. Culverts over 20 feet wide are designed as a bridge (see HM 3-3.1.2) and need a backwater and scour analysis 6.
