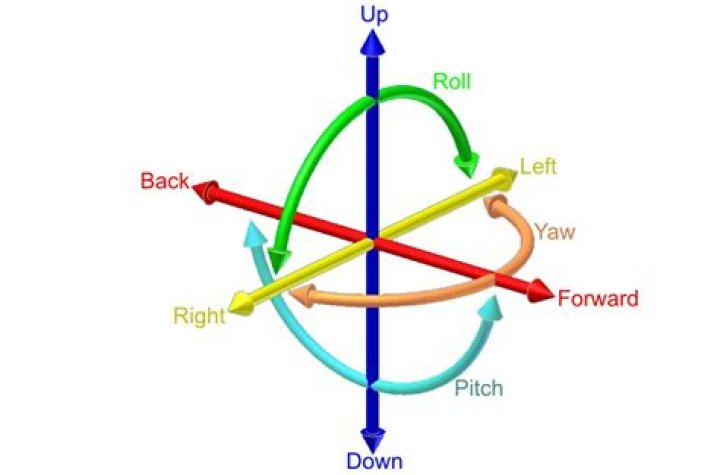

(6 Degrees Of Freedom) The amount of motion supported in a robotics or virtual reality system. Six degrees provides X, Y and Z (horizontal, vertical and depth) and pitch, yaw and roll. Three degrees of freedom (3DOF) provides X, Y and Z only. See pitch-yaw-roll.

What are the six degrees of freedom?

Six degrees of freedom (6DOF) refers to the specific number of axes that a rigid body is able to freely move in three-dimensional space. It defines the number of independent parameters that define the configuration of a mechanical system.

What are degrees of freedom in engineering?

Degrees of freedom, in a mechanics context, are specific, defined modes in which a mechanical device or system can move. The number of degrees of freedom is equal to the total number of independent displacements or aspects of motion. … The term is widely used to define the motion capabilities of robots.

What joint has 6 degrees of freedom?

Six degrees of freedom of the knee joint, which include 3 rotational and 3 translational motions. During routine knee flexion, tibiofemoral motion is a combination of sliding and rolling between the contacting tibia and femoral condyle surfaces (1).

Can you have more than 6 degrees of freedom?

Mechanical systems encountered in biology typically have many more degrees of freedom (DOF) than the 6 DOF required to manipulate a body in space. Even the relatively rigid arthropods and crustaceans have at least 5 DOF in each limb; tentacles and human hands have many more.

What are the 12 degrees of freedom?

The degree of freedom defines as the capability of a body to move. Consider a rectangular box, in space the box is capable of moving in twelve different directions (six rotational and six axial). Each direction of movement is counted as one degree of freedom. i.e. a body in space has twelve degree of freedom.

What are the 7 degrees of freedom?

Bionic arm with 7 degrees of freedom The 7 degrees of freedom of the bionic arm include: shoulder joint with 3 degrees of freedom: front and back flexion, internal and external expansion, internal and external rotation; elbow joint with 1 degrees of freedom: flexion; forearm with 1 degrees of freedom: pronation, …

How many degrees of freedom does a helicopter have?

A helicopter rotor blade is usually mounted on a set of hinges which allow three angular degrees of freedom. A typical arrangement of the hinges is shown in Fig. 1. The flapping motion is defined as an up and down rotation, through an angle β, in a plane which contains both the blade and the shaft.

Why do solids have 6 degrees of freedom?

The solid consists of three axes, x-axis, y-axis, and z-axis, it is also called 3-Dimensional. So each axis represents each movement, it means if a molecule is said to move in only x-axis then the degree of movement is 1. … So in case of solids, the degree of freedom of any body or molecule is 6.

What is degree of freedom in civil engineering?

degree of freedom means the least number of independent displacements recovered to define the deformed shape of a structure.It is the important concept in mechanics.It will be calculated by number independent unknown supports minus number of available equilibrium equations in the structure.

Article first time published on

How do you calculate degrees of freedom in engineering?

1. DOF = 6 x (number of bodies not including ground) – constraints.
2. DOF = (6 x 1) – (2 x 5)
3. DOF = 6 x (number of bodies not including ground) – constraints + redundancies.
4. 1 = (6 x 1) – 10 + redundancies.

How many degree of freedom does a cylindrical pair has?

A cylindrical pair keeps two axes of two rigid bodies aligned. Two rigid bodies that are part of this kind of system will have an independent translational motion along the axis and a relative rotary motion around the axis. Therefore, a cylindrical pair removes four degrees of freedom from spatial mechanism. DOF = 2.

Can you have 9 degrees of freedom?

The only numbers that are free to vary are the first two. You can pick 9 + 10 or 5 + 15, but once you’ve made that decision you must choose a particular number that will give you the mean you are looking for. So degrees of freedom for a set of three numbers is TWO.

What can be the maximum degree of freedom?

The number of variables required define the motion of a body is called degree of freedom. For example consider a body in space, it has rotary and translation in x-direction, similarly y-direction, similarly in z-direction. so any body in space has maximum of 6 degree of freedom.

How many degrees of freedom is in the robotic arm?

Those three degrees of freedom operating together provide a wide range of positions which the robotic arm can achieve, extending the possible orientations in reaching objects. These three degrees of freedom are controlled by three electrical linear actuators each acting on a link and controlling one rotary joint.

What are the types of degree of freedom?

Three types of degrees of freedom exist, those being translational, rotational, and vibrational..

What is degrees of freedom in thermodynamics?

< Statistical Thermodynamics and Rate Theories. Molecular degrees of freedom refer to the number of ways a molecule in the gas phase may move, rotate, or vibrate in space. Three types of degrees of freedom exist, those being translational, rotational, and vibrational.

Why do solid elements have 3 DOF?

Solid elements have 3 degrees of freedom per node. Solids only support translational (DOFs) at each node. Therefore, moments cannot be applied to solids directly. A moment acts on the rotational degrees of freedom.

What is degree of freedom in earthquake engineering?

A degree of freedom is defined as the independent coordinate with which we define the displaced shape of the structure. From: Structural Dynamics of Earthquake Engineering, 2009.

How many degrees of freedom does a particle have?

Any atom or molecule has three degrees of freedom associated with translational motion (kinetic energy) of the center of mass with respect to the x, y, and z axes.

How many degrees of freedom does co2 have?

Carbon Dioxide has a degree of freedom of 6, yet from what I understand, it is a linear molecular shape. Therefore, the number of axis of linear movement is 3 (x,y,z) but there are only two axis of rotational movement since the center of mass essentially does not rotate on one of the axis due to its linear shape.

How many degrees of freedom does o2 have?

Thus, oxygen molecules have 5 translational degrees of freedom and are free to move in space.

What angle are helicopter blades?

A helicopter blade is a wing. Most wings (airfoils) operate at a pitch or Angle of Attack between 7 and 23 degrees.

What is the RPM of helicopter rotor?

Depending on the model and size of the helicopter, a helicopter’s blades, which are between 40-60ft long, spin from about 225 RPM to 500 RPM. Speed is determined by the power of the rotor and the length of the blade.

How many degrees of freedom are there in statistics?

We know that when you have a sample and estimate the mean, you have n – 1 degrees of freedom, where n is the sample size. Consequently, for a 1-sample t test, the degrees of freedom equals n – 1.

What is the degree of freedom of this SS beam?

But for a beam or a frame, each joint can rotate as well as translate. Like each joint can deflect in x, y as well as z direction and it will also rotate about x, y and z direction because of bending. So for a beam in case of a node, each node has 6 degrees of freedom if you consider all the three co-ordinates.

How many degrees of freedom are there in fixed support?

Fixed-support: A fixed support prevents all movements and rotations at the point where it is attached to the structure. The joint with fixed support has no degrees of freedom, and therefore, there are six support reactions applied from the support to the structure.

How many degrees of freedom does a simply supported beam have?

Each end of the beam has one rotational and two translational degrees of freedom.

Why is the degree of freedom n 1?

In the data processing, freedom degree is the number of independent data, but always, there is one dependent data which can obtain from other data. So , freedom degree=n-1.

What does a high degree of freedom mean?

In a calculation, degrees of freedom is the number of values which are free to vary. … Because higher degrees of freedom generally mean larger sample sizes, a higher degree of freedom means more power to reject a false null hypothesis and find a significant result.
