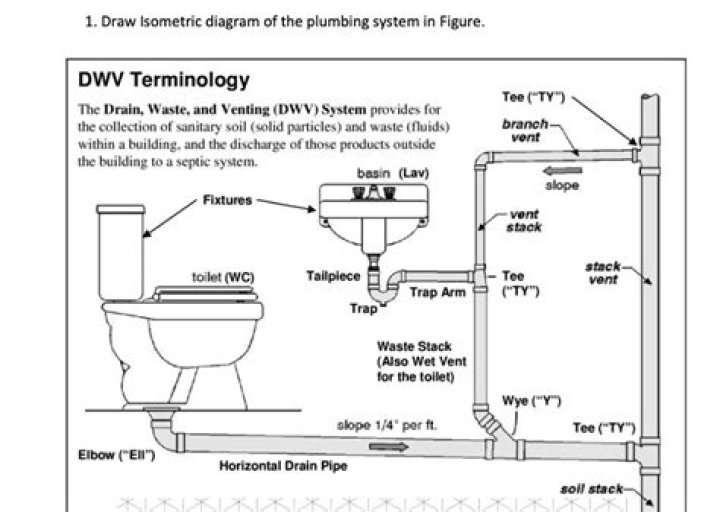

What are the 3 components of the DWV system?

Breaking Down the DWV System As previously mentioned, there are three parts to the DWV system, and the letters spell it out, main drain pipe, waste pipes, and vent pipes.

How is a DWV system set up?

Through traps, all fixtures are connected to waste lines, which in turn take the waste to a “soil stack”, or “soil vent pipe”. At the building drain system’s lowest point, the drain-waste vent is attached, and rises (usually inside a wall) to and out of the roof.

What is the purpose of the stack in the DWV system?

The main piece of a DWV system is the stack, normally a pipe 3 or 4 inches in diameter that runs straight up through the roof. Water travels sliding through the stacks to the main drain line, which leads to the municipal sewage system or to a septic system.

How do you test a DWV system?

Once you’ve tightened all the clean-out plugs except one, remove the cap from the last plug, and insert your air compressor. Fill the pipes to a pressure of 5psi, then turn off the compressor. Watch the air-pressure reading for 15 minutes. If the pressure drops at all, then you have a leak in the pipes.

Is DWV same as PVC?

DWV parts look very similar to standard white schedule 40 PVC pipe and fittings. The only real difference is that DWV PVC is not made to handle pressurized uses like schedule 40 parts are. Instead, DWV pipe and fittings are made to handle a different class of uses – Drain, Waste, and Vent (hence the name DWV).

What DWV means?

DWV stands for Drain-Waste-Vent. Your home’s Drain-Waste-Vent plumbing system is the collection of pipes that rid your home of sewage and water waste from toilets, bathtubs/showers, sinks and appliances like dishwashers and washing machines.

What does DWV stand for?

Drain-Waste-Vent
DWV stands for Drain-Waste-Vent. Your home’s Drain-Waste-Vent plumbing system is the collection of pipes that rid your home of sewage and water waste from toilets, bathtubs/showers, sinks and appliances like dishwashers and washing machines.

Is the DWV?

How do test balls work?

Test ball pipe plugs or pneumatic pipe plugs are used to block sewer pipes during sewer air testing. Some test ball pipe plugs have eye bolts that are used when tethering a hose line. This tether allows for the pipe plug to be raised or lowered with a poly lift line.

How do you check a drain line?

How to Test Drain Pipes

1. Step 1: Put Bungs in the Ends of the Pipe.
2. Step 2: Connect a Pump.
3. Step 3: Pressurize the Pipe.
4. Step 4: Release the Air.
5. Step 1: Seal the Pipe.
6. Step 2: Attach a Vertical Pipe.
7. Step 3: Fill the Pipe With Water.
8. Step 4: Record Changes in Level.

How are vent pipes used in the DWV?

The vent pipes remove or exhaust sewer gases and allow air to enter the system so that the wastewater flows freely. The drainpipes are made of cast iron, galvanized pipe, copper, or plastic. Local building codes that regulate the materials used in the DWV system have changed over the years,…

What makes up the fat pipes in the DWV?

The fat pipes in your house make up the DWV, carrying wastewater to a city sewer line or your private sewer treatment facility (called a septic tank and field). The drainpipes collect the water from sinks, showers, tubs, and appliances. The waste pipes remove water and material from the toilet.

What do DBAs need to know about system architecture?

To propose a new solution or verify an existing architecture, a DBA must have a clear understanding of the system’s requirements. In this tip, I will try to list a few areas DBAs need to cover when they are designing new systems or reviewing proposed solutions.

What does DWV stand for in plumbing category?

The DWV system is for the removal of waste water and material from the building. Inspectors recognize this portion of the plumbing system as a major concern for not only the function of the plumbing but for the protection of the health of the building occupants. © PMA of Georgia 2010 Venting

The vent pipes remove or exhaust sewer gases and allow air to enter the system so that the wastewater flows freely. The drainpipes are made of cast iron, galvanized pipe, copper, or plastic. Local building codes that regulate the materials used in the DWV system have changed over the years,…

The fat pipes in your house make up the DWV, carrying wastewater to a city sewer line or your private sewer treatment facility (called a septic tank and field). The drainpipes collect the water from sinks, showers, tubs, and appliances. The waste pipes remove water and material from the toilet.

What are the requirements for a vent system?

903.1 Required vent extension. The vent system serving each building drain shall have at least one vent pipe that extends to the outdoors. 903.1.1 Installation. The required vent shall be a dry vent that connects to the building drain or an extension of a drain that connects to the building drain.
