What are the 2 distinct plumbing systems in typical residential construction?

There are two basic systems to your home’s plumbing: the one that gets the clean water in and another that takes the dirty water away. Your waste water network is also made of two systems: the pipes that take the water away and the venting pipes that keep sewer gas from getting into your home.

How many fixture units can a 2 inch vent handle?

24 fixture units
The Plumbing Code states that a vent can handle 24 fixture units.

What does DWV stand for in plumbing category?

The DWV system is for the removal of waste water and material from the building. Inspectors recognize this portion of the plumbing system as a major concern for not only the function of the plumbing but for the protection of the health of the building occupants. © PMA of Georgia 2010 Venting

Where are the DWV pipes in a kitchen?

The pipes of the DWV system are usually out of sight, hidden in the walls, beneath the floors, and in the attic. Most kitchens have a fairly simple plumbing setup that includes hot and cold water supply lines to the faucets; a waste line for the sink (s); and, for kitchens with a gas range, a gas supply pipe.

How does drain waste vent ( DWV ) system work?

Like other types of T fittings, it connects two pipes for a main run and one at 90 degrees for a branch run. A little different than a standard tee, it’s designed so waste will flow through it smoothly—the branch run curves toward the perpendicular main run (a similar tee with a long, sweeping curve is called a combination tee).

How to create a residential plumbing and piping plan?

You can also use the symbols from Plumbing library making your plumbing plans with help of all 21 objects necessary for such kind of schematics and you’ll find ConceptDraw DIAGRAM to be the only good enough software for your business. This plumbing and piping plan sample shows the apartment hot and cold water supply and waste removal system.

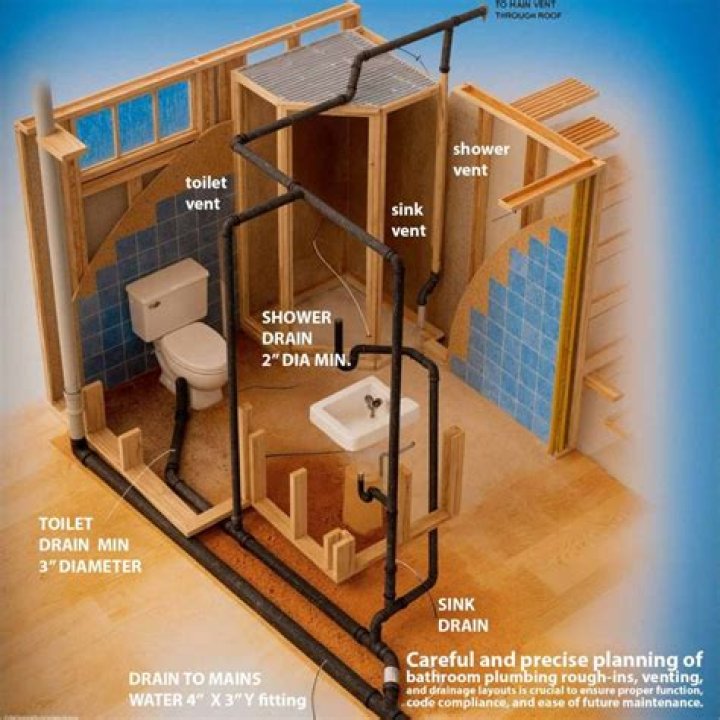

How are vent pipes used in the DWV?

The vent pipes remove or exhaust sewer gases and allow air to enter the system so that the wastewater flows freely. The drainpipes are made of cast iron, galvanized pipe, copper, or plastic. Local building codes that regulate the materials used in the DWV system have changed over the years,…

What to consider when planning a plumbing remodel?

When planning any plumbing addition, you must first consider code restrictions; the limitations of your system’s layout; and, of course, your own abilities. Although it’s usually straightforward to route supply lines to a new location, tying into drain-waste-vent (DWV) pipes is a different story.

What makes up the fat pipes in the DWV?

The fat pipes in your house make up the DWV, carrying wastewater to a city sewer line or your private sewer treatment facility (called a septic tank and field). The drainpipes collect the water from sinks, showers, tubs, and appliances. The waste pipes remove water and material from the toilet.
