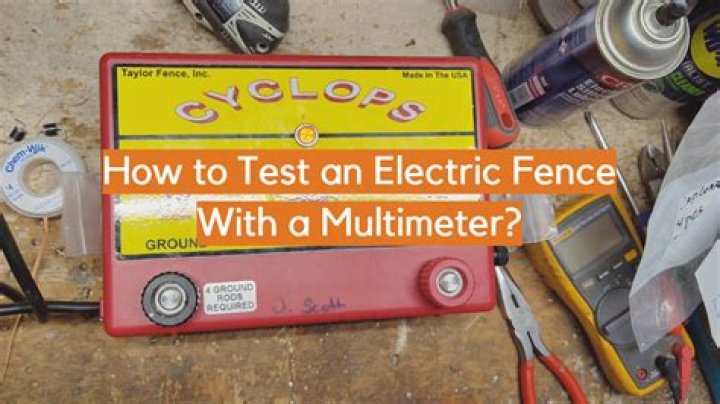

Can I check an electric fence with a multimeter?

When you need to make sure that the fence is working properly, use a voltmeter that is designed for electric fences. The dial or display should read kV, to represent kilovolts, for voltmeter mode. Place the voltmeter on one of the fence wires so that the metal measurement slot makes solid contact with the wire.

How do you test an electric fence?

You can test the fence by attaching one part of the voltmeter to the fence. The other part is connected to the ground. Then you just run the voltmeter along the fence, although not touching it, to receive information about how many volts are passing through the fence.

How many volts should my electric fence have?

In fact, anything between 5,000-9,000 volts is ideal, but your cattle species and temperament will determine the best voltage. I assured Bob that as long as his cattle were respecting the fence, he didn’t need to worry.

How do you troubleshoot an electric fence?

Step 1 – Power: Turn off your power to your charger. Step 2 – Secure: Check both connections (positive-to-fence and negative-to-ground rod) and make sure they are securely attached. If one or more has come loose, reattach, turn your power back on and see if this resolves your issue.

How do I increase the voltage on my electric fence?

Make use of your fence’s cold wires (assuming you have some steel posts) as extra earthing to improve the voltage at the end of your electric fence. Connect them all the way throughout your fence starting from the main energizer earth stake. This means taking an earth wire and a live wire under every gate.

Is electric fence output AC or DC?

A term used to describe electric fence controllers that pulse electricity at regular intervals through a fence, typically at one-second internals. An output capacitor is used to store direct current (DC) electricity between pulses through a fence. Alternating current (AC) can’t be stored using a capacitor.

What is a good electric fence reading?

You should expect readings above 2000 volts for horses and above 4000 volts for all other livestock. If readings are good close to the energizer, move down the line taking readings between every other fence post. You should expect a gradual drop in voltage as you move away from the energizer.

How many volts does a pig fence need?

To safely contain pigs, you need a Zareba® fence charger that maintains a minimum of 2,000 volts on the fence line. Voltage levels are impacted by vegetation on the fence line, length of fence, and type of wire. Tips: With fence wires close to the ground, a low impedance fence charger is recommended to overcome weeds.

Why is my electric fence so weak?

Poor grounding is one of the most common faults in electric fencing systems. If the ground is not completed correctly, the energizer cannot operate at is maximum potential. This could be accomplished by driving three ground rods that are each eight feet long into the ground at least 10 feet apart and attaching them.

How do electric fence testers work?

5 light electric fence testers are a simple and affordable way to determine the voltage of the fence. You stick the ground probe in the soil and the head to the fence. A row of lights with illuminate showing the fence voltage. The tester will blink with the pulse of the fence charger.

Why does my electric fence click?

Clicking is part of normal fence operation when a charger releases energy that travels along the fence. Almost all radio noise generated by electric fences is caused by a spark or arcing of the electrical current across fence hardware.

How do you test an electric fence with a screwdriver?

Choose a metal screwdriver with a thick plastic handle. Make sure you don’t touch any part of the metal with your hand. Touch the screwdriver to each wire on the fence and watch for an electric arc that will leap from the wire to the screwdriver.

How many grounding rods do you need for an electric fence?

Most fences will require two or three grounding rods positioned about 10 ft. apart, near the starting point of the fence. Make sure that your ground rods are far enough away from your utilities, in particular your telephone lines.

How do you test an invisible fence?

Make sure you touch both points on the receiver at the same time when you hear the collar beeping. It will tell you definitively that the fence is or is not working. It is a good thing if when you test your collar at the signal field and it makes continuous “Beep-Beep-Beep” sound.

Can you touch an electric fence with a stick?

Another option is to touch it with a stick or a blade of grass. This is also not recommended. This will dampen the sensation, but again, doesn’t tell you much about how well the system is working.

Can electric fence dead end?

Electric fence does not need to make a complete loop. An electric fence line that dead ends will work just as well as a fence line that is a full loop.

How many kwh does an electric fence use?

The typical Zareba® fence charger uses about 33 watts per day. So, 33 watts multiplied by 31 days is 1,023. Divide that by 1,000 to get 1.023 kilowatt hours per month. The U.S. average cost of a kilowatt hour is 12 cents.

Can you use barbed wire for electric fence?

When converting a barbed wire fence to an electric fence, you’ll want to remove the existing wire. Before tensioning any wire, make sure your posts – especially your corner posts – are solid and firmly set in the ground.

How many volts does a cattle fence need?

To safely contain most beef cattle, you need a fence charger that delivers a minimum of 2,000 – 3,000 volts on the fence line. Voltage levels are impacted by vegetation on the fence line, length of fence, and type of wire.
