1)Place your rechargeable battery in its approved battery charger and allow the device to charge for the period prescribed. 2)Switch your multimeter on and change the measurement dial to measure direct voltage, ensuring that the dial is adjusted to measure at least the full number of volts that the battery can provide.

How can you tell if a rechargeable battery is bad?

If it still has the same charge as before it was initially used, then your rechargeable battery still holds a charge. If not, it needs to be replaced because the energy output is inconsistent and eventually the battery will stop working or become unresponsive to the charger.

How do you measure a rechargeable battery with a multimeter?

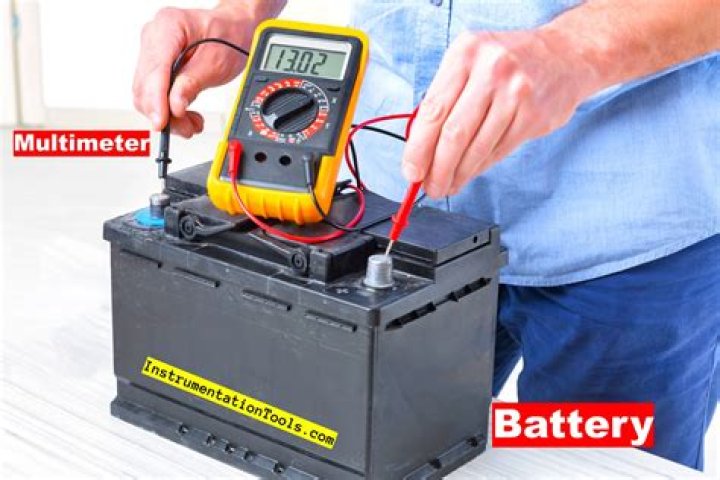

Touch the metal tip of the meter’s black probe wire to the negative (-) end or terminal of your battery, and then touch the metal tip of the meter’s red probe wire to the positive (+) end or terminal of the battery. When touching them to the battery, observe the voltage reading on your multimeter’s display.

Is there a way to test rechargeable batteries?

Test the battery under load after charging. For AA and AAA, use a resistor of about 10 ohms, or a small incandescent flashlight bulb, in parallel with the multimeter. NiCd or NiMH cells should be ~1.4 volts, though different cell chemistries may give a range of ~1.35 to ~1.5 V.

How can you tell if rechargeable AA batteries are still good?

How do I know when my battery’s service life has ended? Battery charge is never completed or takes a large amount of time (guideline: 2 to 3 times longer than normal charging time). When the operating time is noticeably short despite having used the battery only a few times.

Can you revive dead rechargeable batteries?

Rechargeable batteries are a great way to save money — and the environment — but some devices can discharge batteries to the point where they cannot be recharged. This charger can revive them, saving you even more money!Sep 1, 2020

How do you test a lithium battery?

There are many ways to know either your lithium battery is at the end of life or not which are as follows; Remove the battery and put a voltmeter on it and post the voltage you get and then put battery inside. If the battery is dead or at the end of life, then it won’t take charge anymore.

How do I test a lithium battery with a multimeter?

Set your meter to measure in volts. Locate the positive and negative terminals of your lithium ion battery. These will usually be located on the end of your battery that slides first into the device it powers. The terminals are tiny, but they are clearly marked with a positive and negative symbol.

When should you not use rechargeable batteries?

Most alarm manufacturers recommend against using rechargeable batteries to power a smoke alarm. Smoke alarms that are not hard-wired into your home’s electrical system get power in one of two ways: a built-in battery designed to last up to 10 years, or a disposable 9-volt battery that you should replace once a year.

Do rechargeable batteries go bad if not used?

Yes, unused batteries do go bad, meaning that they lose their charge over time. The expiration date on a non-rechargeable battery is typically the date when only 80 percent of the original charge is left. It’s good to know when you can expect your batteries to expire.

Should rechargeable batteries be fully discharged?

It is recommended that you fully charge and discharge the new battery two to four times to allow it to reach its maximum rated capacity. Keep the battery healthy by fully charging and then fully discharging it periodically. Exceptions to the rule are Li-Ion batteries, which do not suffer from the memory effect.

Why do rechargeable batteries stop working?

But according to research by the U.S. Department of Energy, the reason lithium-ion batteries lose their charge over time is because of an undesirable chemical reaction. The more cycles you charge, the more crystals are formed, and the more efficiency and capacity you lose.

Can rechargeable batteries explode?

When the separating part between them fails to do its job, the battery can heat up to dangerous temperatures, hot enough to cause fires and explosions.

How do you revive NIMH rechargeable batteries?

1) Use DVM to measure the total output voltage of the battery pack. Calculation = Total output voltage / the number of cells. If the result is less than 1.0V/cell, then you may to revive the pack. 2) Charge the cell by the 12V DC 0.5Amp AC adaptor with correct polarity for no more than 1 minute as shown in picture 2.

Can a dead lithium battery be recharged?

This allows the cells to be rejuvenated whenever they may seem dead. Can you revive a dead lithium-ion battery? Yes, it is possible to resurrect a dead lithium-ion battery using a few simple and convenient tools. However, these batteries can be very unstable especially when they are handled inappropriately.

Can I replace rechargeable batteries with regular batteries?

You can use regular batteries instead of the rechargeable pack.

Can rechargeable batteries be charged in any charger?

Can Duracell Rechargeable batteries be charged in any battery charger? Yes, in any charger, but Duracell chargers are recommended because they are among the safest in the industry.

How do I test a 12 volt with a multimeter?

You have to set the multimeter to a range that it can measure. For example, 2V measures voltages up to 2 volts, and 20V measures voltages up to 20 volts. So if you’ve measuring a 12V battery, use the 20V setting.

Can you test AA batteries with a multimeter?

To test the battery, turn on your voltmeter, put the voltmeter on DCV and make sure that it is far above the battery voltage, on most voltmeters there is a setting “20” in the DCV area, so switch your voltmeter to that setting. Try to use batteries that have same amount of energy stored in them.

How do you know when rechargeable batteries are fully charged?

For fully charged batteries, a battery tester which measures closed circuit voltage can be used as a general guide to determine if the battery is “good” or “defective”. A voltmeter which measures open circuit voltage is not a reliable method for evaluating rechargeable batteries and is not recommended for this purpose.

Do rechargeable batteries expire?

How long do rechargeable batteries last? Many ready for use rechargeable batteries lose their capacity when not in use. They retain 90% of their capacity after 1 year, 80% after 3 years, and even after 10 years in storage some 70%. Many other ready for use batteries lose their charge rather quickly.
