Hammer: You can apply direct impact to the ferrule itself, causing it to crimp around the metal. Alternatively, you can use a hammer and nail method. Using a thin nail, perforate the ferrule casing in a zig-zag pattern with the cable inserted in the ferrule.

What can I use if I don’t have a crimping tool?

If you are going to try it, use a small flat-head screwdriver to push down the pins into the wires. You will need to push down all 8 pins into the 8 wires. Before pushing down your pins make sure that all of the individual wires are completely pushed to the end of the jack.

How do you crimp a cable without a crimper?

If you don’t have a crimping tool, no problem! Use a pair of scissors or a utility knife to cut away a section of the sheathing at the end of the cable, untwist and arrange the small cables in the right order, put them into the RJ-45 connector, and use a small, flathead screwdriver to press down each of the pins.

What can I use in place of a swaging tool?

Because the entire purpose of a swaging tool involves applying pressure, you can use a hammer. Run the wire through two ends of your aluminum sleeve and hammer them down. Test the wire by pulling on it to see it can quickly come out of the sleeve.

How do you crimp a ferrule and stop without a crimper?

Just crush the thing with any tool you have around. If you can use a big vise to crush them down, that’s probably the most ‘controlled’ way. Otherwise, use pliers, or get a hammer and chisel and dent the sleeve at two or three points with the chisel.

Can you use normal pliers to crimp?

You don’t need a fancy tool, crimps are very soft, you can use pliers.

What is the difference between swaging and crimping?

“In swaging, a machine pushes a fitting and ferrule through a fixed split die bed to reduce the OD of the ferrule, compressing the hose into the stem serrations, while a crimping machine has any number of segment dies that close around the ferrule or sleeve and reducing it to a predetermined OD.

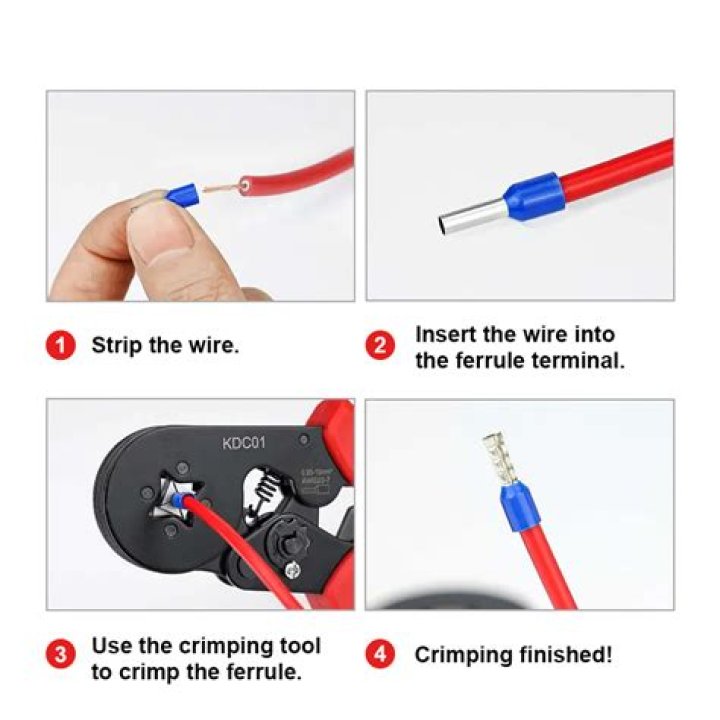

What is a ferrule crimper?

A wire ferrule is crimped to the end of a stripped wire, very similar to a terminal. When it is crimped onto a stranded wire, it protects the fine strands from fraying. They are then inserted into the terminal compartment to be crimped onto the wire.

Are ferrules necessary?

In addition to providing protection against damage, ferrules offer mechanical advantages during wiring by preventing the splaying and over bending of individual litz wire ends. This is particularly beneficial when performing multiple rewiring operations in the control cabinet – not least from a safety point of view.

What is cable ferrule?

In the context of wiring, a ferrule is a small deformable metal tube, generally made out of tin plated copper. This short tube (or long ring) is placed over a section of stranded wire extending from stripped insulation, then compressed with a crimping tool to hold the strands together.

What is a swaging tool?

What are Swaging Tools? Swaging tools use pressure to expand or stretch the end of a piece of copper tubing so it can fit over another of the same diameter and make a permanent brazed connection. Often a flaring tool kit will come with swaging bits or die blocks to convert a flaring bar into a swaging bar.

What is a plumbing ferrule?

Plumbing ferrules are some of the most common fittings for joining two pipes together and making the connection water tight. The nut exerts pressure on the ferrule sides as it is being threaded onto the pipe to be joined, and compresses the ferrule onto the pipe.

What is a bootlace crimper used for?

Bootlace Ferrules are used mainly in applications to improve connection reliability such as circuit breakers, control panels and boxes, or larger consumer units in multi occupancy buildings.

What does the word ferrules mean?

ferrule • \FAIR-ul\ • noun. 1 : a ring or cap usually of metal put around a slender shaft (as a cane or a tool handle) to strengthen it or prevent splitting 2 : a usually metal sleeve used especially for joining or binding one part to another (as pipe sections or the bristles and handle of a brush)Aug 19, 2021.

Can you crimp terminals with pliers?

Crimp tools A wide variety of crimping tools exist, and they are generally designed for a specific type and size of terminal. Handheld tools (sometimes called crimping pliers) are most common, which may be ratcheting.

What is cable crimping?

Crimping is a common method for compressing a terminal to a wire conductor without the use of soldering. When done correctly, a crimp creates a mechanically sound connection that resists corrosion, gas, and liquids.

What are crimp connectors?

A crimp connector is a type of solderless electrical connector used for terminating stranded wire. The crimp fitting is then compressed (crimped) around the wire with a pair of crimping pliers. When done correctly, this connection is both mechanically sound and gas-tight.

How do swage fittings work?

Swage fittings have a long drilled shaft relative to the wire’s diameter (diagram 1). Once the wire is inserted into the fitting, the fitting is then rolled through (or hammered by) a set of dies, to squeeze the fitting onto the wire.

What is swage fittings?

Swage fittings are wire rope components other than swage or stop sleeves, that are attached to the wire by compressing, (swaging) the fitting on to the wire.

How do you attach a ferrule?

Determine the amount of wire rope needed for the project at hand. Cut the wire rope to the correct size using a cable cutter or hacksaw. Slide the required number of ferrules onto the wire rope. Arrange the assembly carefully for swaging; once made, the connection is permanent. Begin assembly with an end stop.
