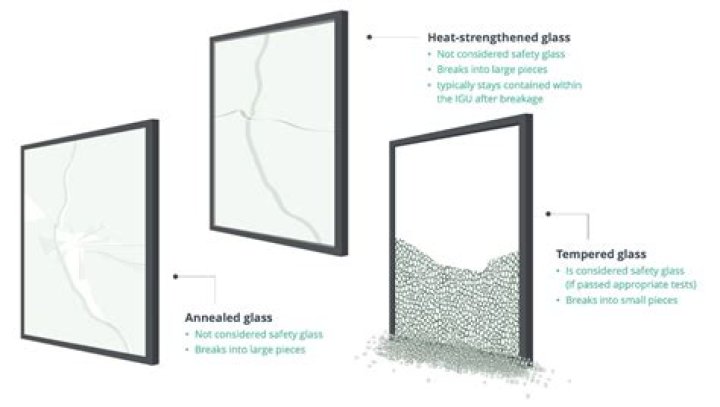

When broken, tempered glass shatters into small, relatively harmless pieces. … Tempered glass is required as safety glazing in “hazardous” applications, such as floor-to-ceiling partition walls, entrance doors, sidelites, etc. Glass cannot be further processed (cut, drilled,etc.) after tempering.

What qualifies as safety glazing?

​Practically, safety glazing refers to glass panels or other materials that are manufactured to reduce the likelihood of breaking and to minimize the safety risk if the material does break. … Therefore, both tempered and laminated glass assemblies can qualify as safety glazing, if they meet the IBC 2406 requirements.

Which type of glass below qualifies as safety glazing?

Tempered safety glass is the most popular and cost effective type of safety glazing. It is a heat strengthed glass. It is up to 5 times stronger than annealed glass. When it does break, it shatters, like the side window of a car, into thousands of small pieces.

Is tempered glass a safety feature?

Architectural tempered or toughened glass is one of the most standard forms of safety glass available. Its qualities make the material a strong and secure building feature capable of forming anything from fundamental building structure to internal applications like spiral staircases.

What category is tempered glass?

Tempered glass is a type of safety glass manufactured with the aid of heat or chemicals used to strengthen the glass. This process is sometimes referred to as “tempering.” Tempered glass can be up to four times stronger than typical annealed glass of the same size and thickness.

Is tempered glass toughened?

What is toughened glass? Toughened glass – also known as tempered glass – is up to five times stronger than regular glass. This is achieved by heating regular glass at high temperatures (650°C) and then cooling very quickly.

Is tempered glass Category II?

Glass used in a handrail or a guard shall be laminated glass constructed of fully tempered or heat-strengthened glass and shall comply with Category II or CPSC 16 CFR Part 1201 or Class A of ANSI Z97.

What is tempered window glass?

Tempered glass is often used in applications where using standard glass could pose a potential danger. Tempered glass is stronger than standard glass and does not shatter into large shards when broken. … Manufactured through a process of extreme heating and rapid cooling, tempered glass is much harder than normal glass.

Is Wired glass a safety glass?

Traditional wired glass is NOT safety glass The wire actually weakens the glass and increases the likelihood of breakage even under the relatively mild force exerted by a small child.

Is wired glass tempered?

Wire glass is used in fire-rated windows and doors because it meets most fire codes. … However, even though it meets fire codes, wired glass is not strengthened glass. In fact, it has only one half the strength of annealed glass of the same thickness. In addition, wired glass cannot be tempered.

Article first time published on

How do you tell if a window is tempered?

Examine Its Edges Normally, tempered glass has completely smooth edges due to the extra processing it goes through, while other types of glass usually have scuffed or ridged edges. If the edges of the glass are exposed, run your fingers along them.

Is Tempered safety glass impact resistant?

Tempered glass is a heat treated glass. The glass is heated first, followed by the surface being cooled rapidly. … This film also helps to hold the glass in place, making it resistant to impact. In the event of a crack or break in an impact window, the glass fragments stick to the plastic film.

Does tempered glass have to be labeled?

According to the IRC, tempered glass must contain an identifying label.

What is category glazing?

Consumer Product Safety Commission 16 CFR 1201 The CPSC safety glazing minimum minimum standard was established in 1977 to protect people from injuries due to accidental impact with glazing. Cat I = for small glazing areas (less than 1296 sq in) to survive impact of 150 foot pounds (a small child).

What is CTG tempered glass?

CTG, a division of Windshield Glass which was founded in 1961, is pleased to offer quality tempered glass at affordable prices. We believe customer service is the key to a successful business. … Our experience allows us to cut and fabricate tempered glass for any project.

What is the disadvantage of tempered glass?

But when it does break, tempered glass disperses into blunt, pebble-like pieces, rather than the sharp shards of traditional glass. The sharp pieces of regular broken glass can cause deep cuts and severe injury and are very difficult to clean up thoroughly.

Can you break tempered glass with a hammer?

Break the glass with a mallet or hammer. Check to make sure the surrounding area is clear. Stand at the elevated end of the glass and raise the hammer or mallet overhead. Gauge the area where the hammer will come down on the glass, and briefly turn your face away from the glass while striking hard with one swift blow.

What happens when you break tempered glass?

Consequently, when tempered glass is broken, it shatters into thousands of tiny pebbles—this practically eliminates the danger of human injury caused by sharp edges and flying shards. … This is because when it breaks, it may form larger sharp shards that can cause serious injury.

Why is wired glass banned?

The appalling injuries that wired glass can inflict has led to its banning in the United States. … The material was originally used in situations where glass at elevated heights posed a potential hazard to by-passers below – such as skylights and elevators.

Why is wired glass not used?

If a clear view is desired, wired glass cannot be used as wires in the glass obstructs and distorts the view. Wired glass does not have high durability in areas which are exposed to more rain and humidity, as the wire in the glass will rust eventually.

Is wired glass allowed?

Contrary to popular belief, wired glass has not been banned from use. Traditional wired glass can still be used in annealed glass applications—if it meets the wind and thermal load requirements—and in fire window assemblies that are not in hazardous locations. However, it is limited to 25 percent of the wall area.

What is the difference between tempered glass and safety glass?

Safety glass is a type of glass made in such a way that it is less likely to cause injury if it breaks. … Tempered glass, in particular, is a preferred material for personal electronics and glass cookware. Laminated glass is often used in areas where there is a possibility of human impact.

Is tempered glass good for Windows?

Yes, absolutely. The manufacturing process for tempered glass makes it 4-5 times stronger than ordinary (annealed) glass. This process also makes the glass less dangerous in cases of breakage.

Does tempered glass break?

Tempered glass is a unique type of glass created to be stronger and, if it does shatter, it shatters safely. When tempered glass is broken, it will break into thousands of small pieces as opposed to large sharp shards of glass.

What thickness is safety glass?

The normal thickness for toughened glass is 4mm, this is the same as the standard glass. In a double-glazed unit you would have two panes of toughened glass, inside and out.

When should a window be tempered?

Any fixed or movable window that is bigger than 9 square feet should be made of tempered glass. This applies if the bottom edge of the glass is less than 18 inches above the floor and the top edge is over 36 inches from the floor.

Are tempered glass windows more expensive?

Tempered glass is more expensive than annealed and standard glass and annealed glass, typically costing 25% more. Averagely, a square foot of tempered glass costs $25.

Can tempered glass hold a person?

Tempered glass can withstand a pressure of 24,000 psi without breaking. A piece that is 11 by 16 inches with a thickness of 3/16 inch can support about 240 pounds.

Are tempered glass windows hurricane proof?

The strength of tempered glass means it can stand up to strong winds, hurricanes, and other weather events. When safety is a concern, tempered glass reduces the risk of injury due to its nature of breaking into smaller pieces instead of larger sharp, jagged shards.

Is tempered glass harder to break?

Stronger: Rated to withstand surface compression of at least 10,000 psi, tempered glass is about four times stronger than regular glass. This greatly decreases the chance of breaking on impact.

What type of glass is impact resistant?

Impact-resistant glass is typically tempered glass. This means the glass has been treated with heat, in order to make it stronger and more resistant to temperature changes. The heated effect of tempered glass can be combined with laminated annealed to create a hybrid window, as well.
