Absolutely not! Black pipe is not chimney pipe and should only be used up to the point of penetrating the ceiling or wall. … Black single wall stove pipe has a clearance to combustibles of 18” (double-wall black pipe has a clearance of 6″) whereas class A chimney pipe is generally 2”.

Can you use single wall stove pipe inside?

Use Single Wall Black Stove Pipe from your stove to a thimble or ceiling transition box, never inside a combustible wall or inside a chimney chase. An 18 inch clearance to combustibles is required and these pipes feature an unheard of fume-free finish.

Can you use single wall pipe for wood stove?

You need to look carefully at the wood stove manufacturer’s requirements, but most wood stoves need a large draft to operate correctly and loss of heat through a single wall pipe causes too much loss of draft as well as creosote problems eventually leading to a chimney fire, if you can manage to keep your stove lit.

Do I need single or double wall stove pipe?

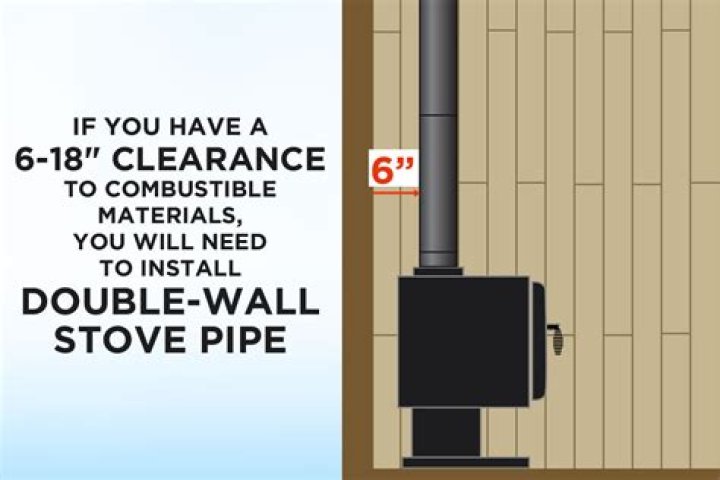

It is always recommended that you use double-wall pipe in a mobile home. The reason why you must use double-wall pipe for a clearance of 18″ or under is because it is air insulated. The outside of the double-wall pipe does not radiate heat like single-wall does.

How hot does a single wall stove pipe get?

For safety reasons, UL specifies that manufactured chimneys must be able to sustain a continuous flue gas temperature of 1000ºF. That would correspond to about a 500-600º external temp on single-wall black stove pipe.

Can a wood stove be vented through the wall?

Venting is an important component of all stoves. And wood, gas, and pellet stoves have different venting systems. … For instance, wood-burning stoves will always be vented through the roof of your house, but pellet-burning stoves can be vented vertically through the roof, or horizontally through the wall to the outdoors.

Can I use single wall flue outside?

It can run internally or externally and it achieves higher temperatures due to the layer of insulation. … Single wall flue pipe is not insulated and therefore loses a lot of heat.

When should I replace my wood stove pipe?

If the combustor cannot be repaired, it will need to be replaced. However, if your wood stove is more than ten years old, you should consider replacing it with a more energy-efficient model.

Can you use single wall and double wall stove pipe together?

single wall pipe should fit into double wall without an adapter. … Double wall insulated requires an adapter with a screw-on end to fit the insulated pipe.

How hot does double wall stove pipe get?

These pipes only need a 2-inch clearance to combustibles because they remain cool on the outside, while their internal design allows them to withstand temperatures as high as 1,700 or 2,100 degrees Fahrenheit for a limited time.

Article first time published on

Does the crimped end of stove pipe go up or down?

The crimped end of the stove pipe goes down. Many people think the crimped end goes up to keep the smoke in the pipe but that is incorrect.

How hot is too hot for wood stove?

How hot is too hot when it comes to wood fire stoves and fireplaces? Anything over 800°F is starting to get too hot and could damage your wood stove or fireplace.

Can I complain about my Neighbours wood burning stove?

Local Councils are legally obliged to investigate complaints made under the Environmental Protection Act 1990 relating to public health and nuisance issues, which include smoke and fumes from fires or stoves.

Can you pipe a wood stove out the side of your house?

If you’re setting up a wood-burning stove or pellet stove, running the chimney pipe through an outside wall saves the time and costs of installing a vertical chimney that requires a ceiling collar and roof flashing. … For brick or stone walls, enlist a professional to cut the holes.

Do I need double wall stove pipe outside?

It also helps keep the flue gases hot enough to prevent condensing into creosote. That’s very important if there is a lot of pipe exposed outdoors. Single wall pipe runs shouldn’t exceed 10 ft for this reason. Double-wall pipe will last a lot longer than single wall because of the inner stainless liner.

What is the 2 10 rule?

If you are farther than 10′ away from the peak, your chimney needs to be 2′ above the highest point within 10′. For example, your chimney is exiting 20′ away from the peak and you have a 6/12 pitch roof.

Can you put a wood burner on an internal wall?

Yes. You can install a wood burning stove in properties without a chimney. Stovax has designed a twin-wall flue pipe system – the Stovax Professional XQ™ range – which allows rooms without chimneys to enjoy the benefits of a wood burning stove.

What is code for installing a wood stove?

The NFPA recommends that a stovepipe be at least 18 inches from the nearest combustible material. Closer clearances are allowed in some situations (Table 1). Clearances through walls and ceilings. The NFPA does not permit a stovepipe to pass through any floor or ceiling or through any fire wall or fire partition.

Are wood burning stoves going to be phased out?

Open fires and fireplaces will no longer be able to be sold as solid fuel heating appliances after 2022.

What is the lifespan of a wood burning stove?

The average life of a wood-burning stove is 10 to 20 years.

Are older wood stoves safe?

Old or poorly installed wood-burning stoves pose a higher risk of smoke emission, an increase in air pollution, and greater risk of house fires. You should never smell smoke from your wood stove. If you do, this means that it is not operating safely and should be serviced.

Do potato peels clean chimneys?

Burning the potato peels will not eliminate all soot or creosote buildup, but they will reduce it. A normal and regular chimney cleaning is still needed to keep the fireplace working properly and safely.

Is it safe to leave a wood stove burning overnight?

Yes, you can leave a wood burning stove on overnight. I have done this many times as have other people I know. However, you need to be careful about ventilation. Typically, if you are leaving a wood burning stove on overnight, you will close off both the air intake and the flue, so that the wood burns very slowly.

Should a flue be hot?

Steel flue pipe (often called vitreous pipe) is the pipe that comes out of the top of the top or rear of the majority of stoves. Flue pipes GET EXTREMELY HOT and should be located as to avoid igniting combustible materials.

Why does my stove pipe leak smoke?

If your stove has adequate draft from the front and the flue vent is open but the stove still leaks smoke, it might be because the stovepipe is dirty. Dirty pipes can cause the flue vent to stick or clog. Dismantle two or three sections emerging from the top of the stove.

What should you not burn in a wood burning stove?

• Wet wood. Wet, or unseasoned, firewood can contain up to 45 percent water. …
• Christmas trees. …
• Painted or treated lumber. …
• Any type of paper with colored print. …
• Plywood, particle board, or chipboard. …
• Fire accelerants or fire starters. …
• Plastics. …
• Dyer lint.

Will a hot fire remove creosote?

Creosote is a natural byproduct of burning wood in a wood stove or fireplace. … One method to loosen crusty or tarry creosote so it flakes off and falls down into the firebox or fireplace is to burn aluminum cans in a very hot fire.

What is the slowest burning wood?

Oak. Oak is the slowest wood to season, at approximately 2.5cm a year and ideally should be seasoned for a minimum of two years. Because of its density, it is a wood that’s slow to burn as firewood and is best used in a mix of faster-burning logs. This wood can help to keep the fire burning at night if required.

Should a wood stove have flames?

The fire should have plenty of flames. … The fire should burn with a roar and emit plenty of heat. If the flames look like they are too small, give the wood some time to break down or use bigger pieces. Give either more time or bigger pieces if it doesn’t have enough flames/heat for long periods at a time.

Can you weld stove pipe?

Stove pipe welding is one of the chief methods used in the field welding of pipelines for oil, gas, water etc., where the speed of joining pipes is critical in the speed of pipeline construction (ditching, hauling, stringing, etc.).

Why does fire cement crack?

The expansion and contraction of your metal stove as it heats up and cools down will inevitably crack any fire cement around joints on the flue and stove pipe.
