Schedule 40 PVC pipe is strong, rigid, and can handle pressure applications.

Is Schedule 40 PVC flexible?

This flexible Schedule 40 PVC pipe permits compound curves, greatly reducing the number of fittings otherwise required. It also reduces friction loss caused by elbows. Standard Schedule 40 or 80 PVC fittings can be used.

What is Schedule 40 PVC pipe?

PVC Schedule 40 pipe is used for drainage and lower pressure water flow applications. Schedule 40 PVC pipe can handle up to 140 degrees F in temperature. Pipe lengths come in standard 10′ or 20′ sections. PVC schedule 40 pipe is available in plain end or belled end that do not require coupling for installation.

Which PVC pipe is rigid?

Unplasticised PVC is also known as rigid PVC. PVC-U is the most common PVC type for pipes and fittings including transportation of drinking water, soil and waste, sewage and underground drainage and industrial applications.

Can Schedule 40 PVC be used for electrical conduit?

Schedule 40 PVC conduit is permitted for exposed locations where not subject to physical damage. Schedule 80 PVC conduit is identified for use in areas subject to physical damage.

What is the difference between Schedule 30 and Schedule 40 PVC?

Schedule 30 is NOT to be used for pressurized systems, whereas Schedule 40 may be safe to about 150 PSI at 6 inches in diameter, up to about 300 PSI at 2 1/2 inches or less in diameter.

What is the difference between Schedule 20 and Schedule 40 PVC pipe?

SCHEDULE 20 PVC PIPE The wall of the pipe is much lighter than that of Schedule 40, and must only be used in situations where vehicles, traffic, or any other type of equipment crossing the area will not be a factor.

Is Schedule 40 or 80 thicker?

Water Pressure for Sch 40 vs Sch 80 Each one has its benefits in different applications. Schedule 40 pipe has thinner walls, so it is best for applications involving relatively low water pressure. Schedule 80 pipe has thicker walls and is able to withstand higher PSI (pounds per square inch).

What is the difference between pipe schedule and class?

“Schedule” PVC pipe is an older style of labeling pipe based on the standard dimensions of ductile iron and steel pipe ie. … “Class” pipe is a different labeling system. Rather than categorization by wall thickness, the “class” designation rates the internal pressure that the pipe can take instead.

What is the difference between Schedule 40 and SDR 35?

SDR will bend with the shifting and settling. Having a higher flex tolerance means less breaks from the soil conditions. Schedule 40 is so rigid that in the event the ground shifts or settles this pipe has no give. It will simply snap or break from the pressure.

Article first time published on

What is the difference between PVC DWV and Schedule 40?

DWV parts look very similar to standard white schedule 40 PVC pipe and fittings. The only real difference is that DWV PVC is not made to handle pressurized uses like schedule 40 parts are. Instead, DWV pipe and fittings are made to handle a different class of uses – Drain, Waste, and Vent (hence the name DWV).

Can Schedule 40 PVC be used above ground?

Schedule 40 PVC Conduit is used in walls, floors and ceilings in accordance with NEC 352. According to NEC 352 it can also be buried directly into the earth, encased in concrete, and used in areas exposed to direct sunlight. … It is not designed for use above ground or in walls, floors or ceilings.

What is rigid PVC conduit?

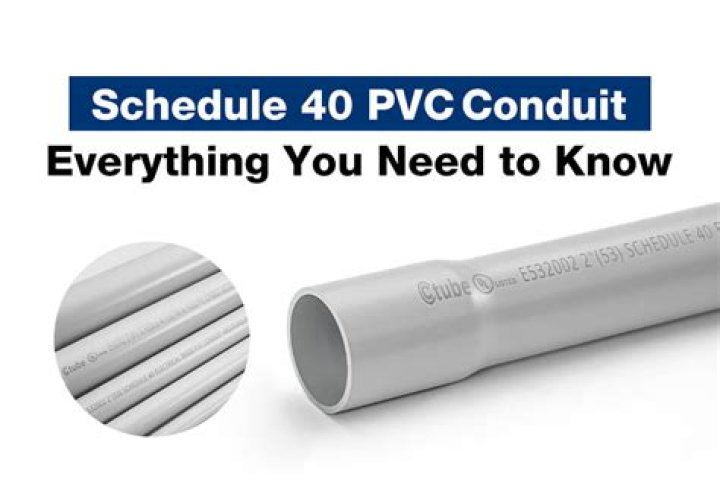

Schedule 40 & 80 rigid PVC conduit systems are sunlight resistant and are used exposed, encased in concrete, concealed in walls and in direct burial applications including systems for: Utilities. Cable, data and communication lines. Institutional, commercial, industrial buildings.

Is it OK to run Romex in conduit?

Running Romex in a Conduit When using any non metallic wire outdoor, including Romex, it is a good idea to run it through a conduit. Yes, they can be used outdoors, it is better to be safe than sorry. We recommend using a conduit when running the wire underground.

What is the difference between schedule 40 and regular PVC?

Schedule 40 PVC is usually white in color and has thinner walls, thus can handle less pressure than it’s counterpart. Schedule 40 PVC pipe works best for low water pressure applications. By contrast, Schedule 80 PVC is usually gray in color and has thicker walls; therefore, it can handle higher water pressures.

What is the difference between Schedule 10 and Schedule 40 pipe?

Pipes Schedule 40 have a greater wall thickness than Pipes Schedule 10, this feature makes it resistant to high pressure. Its has a thickness ranging from 2.7 to 3,91 inches with pipe diameters ranging from 21.3 millimeters ( ½”) to 60.33 millimeters (2”).

Is Schedule 80 PVC stronger than Schedule 40?

Schedule 80 pipe is designed with a thicker wall. This means the pipe is thicker and stronger, and as a result it can handle higher pressures. … Schedule 40 PVC pipe is strong, rigid, and can handle pressure applications. For jobs that require a higher pressurization though, schedule 80 pipe is better suited.

Is Schedule 40 PVC safe for drinking water?

Most schedule 40 PVC found in homes and offices is white pipe with a National Sanitation Foundation (NSF) rating for potable water. … A possible solution is to replace your PVC pipes with an approved material such as CPVC (a stronger type of PVC) or copper. Both materials are considered safe for potable water.

What is the difference between schedule 40 and sewer pipe?

What is the difference between Schedule 40 PVC and Drain and Sewer PVC pipe? Drain and Sewer pipe is sized differently then the SCH40 PVC pipe. It is also lighter weight. Drain and Sewer pipe is not designed to be used for pressure applications.

How strong is schedule 40 steel pipe?

Strength. According to the University of Massachusetts, the hardness of schedule 40 steel pipe was measured to be 16.1 on the Rockwell scale. It was also found to have a yield strength of 423 MPa, an ultimate strength of 470 MPa and an elastic modulus of 225 GPa.

How strong is schedule 40 aluminum pipe?

Our standard grid pipe is 1.5″ schedule 40 aluminum pipe. It is available in black or silver. The pipe is made of 6061-T6 Aluminum alloy and has a minimum yield strength of 37,000 pounds and a minimum ultimate tensile strength of 40,000 pounds per square inch.

What is PVC pipe schedule?

PVC Schedule (abbrev. SCH or Sch.) is the thickness of the PVC pipe wall. The most common Schedule is 40, but Schedule 80 PVC is also available. As the schedule gets larger the pipe wall gets thicker from the outside in, so the inside hole (bore) of the pipe gets smaller.

What wall thickness is schedule 40 pipe?

A 4 inches (100 mm) Schedule 40 pipe has an outside diameter of 4.500 inches (114.30 mm), a wall thickness of 0.237 inches (6.02 mm), giving a bore of 4.026 inches (102.26 mm)

What PVC pipe is thinner than Schedule 40?

Class 200 pipe, the most common class pipe used in irrigation, is rated for 200 pounds per square inch pressure (psi) and has a wall thickness of . 063” for a 1” pipe. Notice that is a lot thinner than schedule 40.

Is SDR pipe PVC?

Scope: This specification covers (PVC) pipe made in standard thermoplastic pipe dimension ratios (SDR Series) and pressure rated for water. PVC PR-160, PR-200 and PR-315 are for pressure systems where temperatures will not exceed 140° F. They are highly resilient, with high-tensile and high-impact strength.

What is the difference between Schedule 40 and SDR 21?

As a result, the schedule 40 pipe has a thicker wall thickness than the SDR21 pipe. For pipes 2-1/2″ and smaller, it is over 150% thicker. Usually, SDR has a 4″ interior diameter, the same as schedule 40, but since the wall is thinner, the outer diameter is not the same.

What does SDR pipe stand for?

July 6, 2021. The standard dimension ratio (SDR)—also referred to as the standard dimensional ratio—is a measurement and method often used by pipe manufacturers to rate the working pressure capacity of a pipe. It is calculated by determining the relationship of the pipe’s outside diameter to its minimum wall thickness.

Is CPVC the same as Schedule 40?

CPVC was designed as a replacement for copper plumbing tubing, with a water-potable and less-expensive plastic solution. … Since CPVC pipe uses a different measurement system and is smaller than their Schedule 40 counterparts, it is not compatible with FORMUFIT fittings and accessories.

What is Schedule 40 PVC pipe in Australia?

Schedule 40 PVC pipes are made with thicker walls that stand up to low pressure applications. Whereas PVC DWV piping has thinner walls and is not made for pressurized applications. Another thing that can cause confusion sometimes is the end types.

Can you glue PVC to DWV?

Medium Clear PVC Cement: Fast drying and suitable for potable water, pressure pipe, conduit and DWV applications. It’s approved for use up to 6” in all schedules and classes of PVC pipe and fittings. … It is also formulated to hold PVC joints beneath water.

Can you run rigid conduit above ground?

Both flexible and rigid conduit can be used for above ground applications. When using flexible conduit, the materials should be anchored every 12 to 16 inches to prevent the conduit from sagging, creating a situation which binds the electrical wire inside.
