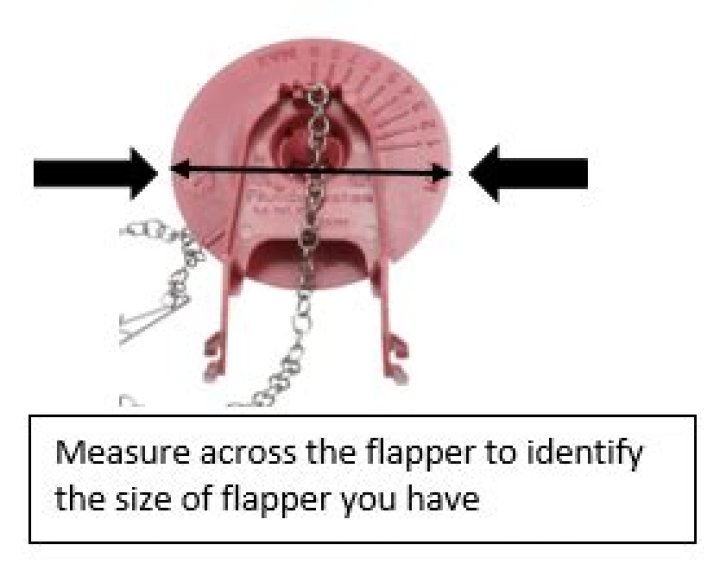

Look at the flush valve drain opening at the bottom of your tank. If the opening looks about the size of a baseball or orange, you need a 2″ flapper. If the opening looks about the size of a softball or grapefruit, you need a 3″ flapper.

How do I know if I have a 2 inch or 3 inch toilet?

An easy reference is to look at the size of the flush valve drain opening in the bottom of the tank. If it’s about the size of an orange or baseball, you need a 2 inch seal. If it looks more like the size of a grapefruit or softball, you need a jumbo 3 inch seal.

What is a 2 inch toilet?

The standard size of a flush valve is 2 inches. This size is what you’ll likely find at a home improvement store and should work on most toilets, including low-flow and older models with larger tanks.

What is a 3 inch toilet?

Owning a three inch flush valve toilet has several advantages over their two inch counterparts. First of all, they allow a larger volume of water through to the bowl in one go. … Secondly, they the faster flow of water from the tank allows manufacturers to design products to do more with less water.

How do I know what kind of toilet I have?

The number: Look under the water tank lid (on the bottom), or on the inside walls of the tank. * The number on the lid may or may not be the same as the in the tank or the number of the complete toilet model.

What are normal toilet dimensions?

Overall, a standard toilet will be between 27 and 30 inches deep, with a back height of 21 to 31 inches and a width of about 20 inches. An ADA-compliant version needs to have a seat height of 17 to 19 inches.

How do I know what size my toilet bowl is?

Measure the length of the bowl from between the seat bolts to the outside edge of the front of the bowl. If you have a round bowl, this dimension should be about 16.5 inches. If you have an elongated bowl, the measurement should be around 18 to 18.5 inches.

What are the two sizes of toilets?

As we said, toilet seats come in two sizes: round and elongated. Every toilet seat is one of these two, indicated on its packaging. Using a tape measure, determine the distance between the center of the mounting holes in the back of the toilet.

Is toilet drain 3 or 4 inch?

mostly and standard size of toilet drain is 3 inch in diameter and 4 inch is a good wide size for toilet drain to move the waste by running water.

Can a toilet drain be 2 inch?

A 2 inch outlet on a toilet will clog the first time you use it. It is too small. You cannot. A toilet drain needs to be at least a 3″.

Article first time published on

Are most toilets 2 inch flush valve?

Most toilets have a standard flush valve. This is just a basic 2-inch flush valve and flapper that lifts up when you push the toilet handle down. Standard flush valves may be found on low-flow toilets and on some older toilets with large tanks.

How do I know if my toilet is round or elongated?

You can determine the shape by measuring the distance from the back of the toilet bowl to its front edge. Here’s how you do it. If the length is between 18-19.5 inches, you have an elongated toilet bowl seat. If the length is between 17-17.75 inches, you have a round toilet bowl seat.

Are toilet bowl sizes standard?

Standard toilet dimensions are typically between 28–30″ deep, roughly 20″ wide, between 27–32″ high, and have a rough-in between 10–14″.

How many inches high is a standard toilet?

Standard toilets measure 15 to 16 inches from the floor to the top of the seat. This would be the toilet you would select for your home if your family has many young or short members. The seat of a standard toilet is lower than the seat of a standard chair.

What size is a toilet drain?

The standard size of a toilet drain pipe is 3 inches in diameter, but the drain can be up to 4 inches in diameter. The drain pipe is usually connected to a 3-inch schedule 40 toilet drain pipe.

Is there a 3-inch toilet flange?

The 3-Inch Flange A 3-inch flange measures the same size as the schedule 40 pipe most likely used in your toilet drain. … You can install a reducing bushing to connect to a smaller pipe, but this raises the position of the flange and may affect the overall alignment of the plumbing.

How many inches is a toilet drain?

Waste drain pipes for toilets in modern plumbing systems are either 3 inches or 4 inches in diameter. The wider the pipe, the more waste it can move and the less likely it will be to clog. A 4-inch pipe can carry about twice the waste of a 3-inch pipe.

What size is 2 waste pipe?

Advertised DimensionPush Fit DiameterSolvent Weld Diameter32mm34mm36mm (1 1/4″)40mm41mm43mm (1 1/2″)50mm54mm56mm (2″)110mm110mm110mm

Does toilet drain size matter?

The hole should be large enough to fit the flange. In most cases, 4 inches in diameter will be adequate. The placement of the hole will determine where the toilet will sit, so be sure to consider this carefully before you get started.

How many toilets can be on a 3 inch drain?

There is one answer. The International Plumbing Code requires 5 Drainage Fixture Units in a bathroom group. It’s good for 20 DFU’s or 4 bathroom groups.

Why does it take 2 or 3 flushes to flush my toilet?

If there isn’t enough water in the tank a poor flush will result. This is likely the culprit if your toilet flushes fine sometimes but requires two flushes other times. There’s a hard water buildup in the bowl. Minerals from hard water can build up in the holes that let water into the toilet bowl from the tank.

What size is a standard toilet flush valve?

A standard toilet flush valve is 2 inches in size and works with most low-flow toilets and older toilet models. The most commonly found type in residential homes, it is the least expensive and most frequently purchased toilet flush valve.

What does an elongated toilet look like?

An elongated toilet bowl is oval, extending several inches more into the front of the room. As bathrooms become larger, the elongated bowl becomes more common, which may make it seem more contemporary in appearance. The round bowl shape is more often associated with older, smaller baths.
