Each resistor in parallel has the same voltage of the source applied to it (voltage is constant in a parallel circuit). Parallel resistors do not each get the total current; they divide it (current is dependent on the value of each resistor and the number of total resistors in a circuit).

Is current constant in series or parallel?

In a series circuit, current is constant. Current will remain constant in a series circuit because of the principle of conservation of charge, which…

Is the current the same in a parallel circuit?

In a parallel circuit, charge divides up into separate branches such that there can be more current in one branch than there is in another. … The current outside the branches is the same as the sum of the current in the individual branches. It is still the same amount of current, only split up into more than one pathway.

Is current constant through a resistor?

The current does not vary as it passes through each individual resistor. … In a series circuit the current is the same at any particular point on the circuit. 3. The voltage in a series circuit, however, does not remain constant.

Is current conserved in a parallel circuit?

His current law states that for a parallel path the total current entering a circuits junction is exactly equal to the total current leaving the same junction. … This idea by Kirchhoff is commonly known as the Conservation of Charge, as the current is conserved around the junction with no loss of current.

Is current constant in a series connection?

In a series combination of components in an electric circuit, the same electric charge flows through each component. … Now, the electric charge flowing per second through the circuit is known as the electric current in the circuit. Hence, as explained above, the electric current remains constant in a series combination.

Is current a constant?

Current remains constant in series connection and voltage remains constant in parallel connection , current is like water flowing in rivers it always flow in specific path and with constant amount but when some diversion is created it distribute and amount decrease gradually same here with current.

What is constant in parallel combination?

In parallel circuits, all the loads are connected on the same 2 terminals and voltage is constant; current flows thru multiple paths.

Is current the same in parallel resistors?

Resistors in Parallel Summary The voltage across each resistor within a parallel combination is exactly the same but the currents flowing through them are not the same as this is determined by their resistance value and Ohms Law.

Why is current different in a parallel circuit?

Current in parallel wires is different because it chooses easy path. Low resistance wire will have more current as there is less opposition of flow of electrons. Originally Answered: Why is current not the same in a parallel circuit?

Article first time published on

Does current remain the same or split in the circuit?

The same current flows through each part of a series circuit. … Voltage applied to a series circuit is equal to the sum of the individual voltage drops. The voltage drop across a resistor in a series circuit is directly proportional to the size of the resistor. If the circuit is broken at any point, no current will flow.

How do you find the current through a resistor?

The current through the circuit is the same for each resistor in a series circuit and is equal to the applied voltage divided by the equivalent resistance: I=VRS=9V90Ω=0.1A. Note that the sum of the potential drops across each resistor is equal to the voltage supplied by the battery.

What is current in parallel circuit?

Current. In a parallel circuit, charge divides up into separate branches such that there can be more current in one branch than there is in another. Nonetheless, when taken as a whole, the total amount of current in all the branches when added together is the same as the amount of current for the entire circuit.

Is current conserved?

Current is defined as the rate at which this charge passes any point in the circuit. A fundamental concept in physics is that charge will always be conserved. … Kirchhoff’s current law states that for the node in Figure 1, the currents in the three wires must be related by: I 1, plus, I 2, equals, I 3.

Why current is conserved at a junction in a circuit?

Junctions can’t store current, and current can’t just disappear into thin air because charge is conserved. Therefore, the total amount of current flowing through the circuit must be constant.

Why is current not constant?

Various things can make the current change including a change of the source voltage or a change of the total resistance of the series circuit. So the current is NOT CONSTANT.

What is constant current called?

A constant current (steady current, time-independent current, stationary current) is a type of direct current (DC) that does not change its intensity with time.

What variable is constant in a parallel circuit?

In parallel circuits, voltage is constant throughout, current depends on each resistor and the inverse of the total resistance is the sum of the inverse of each individual resistor.

Why is V constant in parallel?

Originally Answered: Why does voltage same in parallel circuit ? Because voltage only drops as a result of current flowing through resistance. “Parallel” is simply a shorthand for “very low resistance connection”.

Why current is same in resistor?

The amount of current in a series circuit is the same through any component in the circuit. This is because there is only one path for current flow in a series circuit.

When resistors are connected in parallel the current divides in the?

when the resistors are connected in parallel then the current divides in the parallel circuit combination.

What happens to the current in a series circuit?

In a series circuit, the current that flows through each of the components is the same, and the voltage across the circuit is the sum of the individual voltage drops across each component. … If one bulb burns out in a series circuit, the entire circuit is broken.

Do resistors in series have the same current?

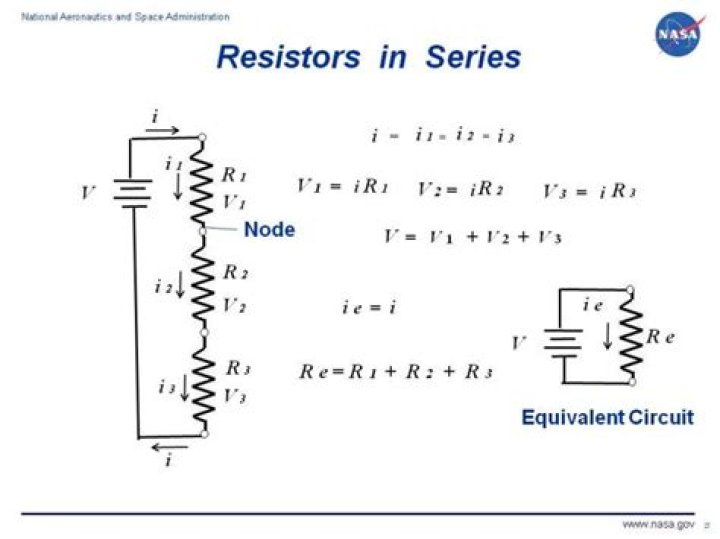

When resistors are connected in series, the current through each resistor is the same. In other words, the current is the same at all points in a series circuit.

Which quantity remains constant in parallel connection of resistance?

Potential difference (voltage) remains constant when resistances are connected in parallel.

What quantity is constant for resistors in series?

If resistance are connected in series , the current through each resistor remains the same.

What remains constant in series combination of resistors?

Answer: In series combination of resistors the current is the same in every part of the circuit or the same current through each resistor and in parallel combination the voltage remains constant.

Why does current decrease in a parallel circuit?

In a parallel circuit, the net resistance decreases as more components are added, because there are more paths for the current to pass through. … The current through them will be different if they have different resistances. The total current in the circuit is the sum of the currents through each branch.

Can you measure current in parallel?

In exactly the same way, you can’t measure current in parallel. BUT, you can do something that gives you numbers that let you calculate current flow. You find a known resistance in series with the current flow, or put one in series.

What happens when current passes through a resistor?

When current is passed through a resistor some electrons are blocked and cannot move over and hence energy is released in the form of heat and hence current is decreased. The voltage which the current has will be reduced after the resistor.

How does current flow in a complex circuit?

Current first flows from its voltage source and separates at Node A, which then flows through resistors R1 and R2. From there, the current recombines at Node C and splits again to flow through resistors R3, R4, and R5 where it meets Node E and Node F.
