Is a pump start relay necessary?

When a system requires the use of a booster pump or pulls water directly from a creek or pond, it’s imperative to include a relay to activate the pump each and every time. Whenever one of the irrigation zone valves is told to open by the controller, the controller also signals the pump start relay to turn the pump on.

What is a sprinkler pump relay?

A pump start relay is an electrical device that allows your irrigation timer to communicate with the pump. This device is imperative when you are using a pump to supply water to your irrigation system. Pumps are built to use normal house currents; the relay changes the irrigation timer to normal household voltage.

Why won t my sprinkler pump turn on?

Irrigation Pump Won’t Turn On If you reset a tripped breaker, and it continues to trip you may have an issue with the wires running to the pump or the pump motor itself — or some other issue that’s causing your pump to get too little electricity – or too much. In either case, it will not turn on.

How do you hook up a water pump relay?

The relay behaves like a switch. We make a complete circuit to run the water pump (using a 12V DC power jack) and then use the relay as a way to make or break the circuit. The relay has three terminals on the low current side- VCC, GND, and IN. The IN pin is how the NodeMCU controls the relay.

What is a sprinkler pump?

Sprinkler pumps are designed to pump water from a shallow well or lake for an in-ground irrigation system. These pumps are made to provide a steady, moderate to high flow of water at low pressure.

How to connect water pump with relay?

Why is my sprinkler pump turning on and off?

If the water pressure is too low, the pump turns on. If the water pressure is too high, the pump turns off. This process of turning on and off is called cycling.

Can a 24V relay be used in a sprinkler system?

This is actually commonly used in sprinkler pump start relays— if you have a pump start relay, you can open it up and check if it has a 24V AC relay in side. This particular one has a contact rating of 25A @ 220VAC, which is sufficient for most applications.

Can a 24V relay be used with an opensprinkler?

I’ve often received questions about how to use OpenSprinkler with a relay. The easiest solution is to get a 24V AC relay. Then you can wire it up as if it’s a sprinkler valve — when OpenSprinkler turns on the corresponding station, the relay is activated, and that turns on the device connected to the relay.

Can a sprinkler switch be used with opensprinkler?

With this feature, you can use OpenSprinkler to not only switch sprinkler valves, but also switch powerline devices such as light, pump, heater, fan.

How does an irrigation controller work to start the pump?

Most irrigation controllers use an external pump start relay to send power to the pump. The irrigation controller sends a 24 VAC signal to the pump start relay. This 24 VAC signal energizes a coil that pulls in a set of contacts that completes the high voltage (usually 240 VAC) circuit and sends power to the pump motor.

Which is the best relay for a sprinkler system?

The relay itself is an Omron G7L-2A-TUBJ-CB which is a good, high quality relay which seems appropriate for the task at hand. Sure, it’s not an SSR, but those cost about twice the price. Great switch for running a water pump and not having to babysit it.

What kind of sprinkler system does orbit pump start relay work with?

The Orbit Pump Start Relay is compatible with 24-Volt sprinkler systems. It automatically activates a pump for watering and is made with a weather-resistant plastic case. Durable construction provides years of reliable use. How can we improve our product information? Provide feedback. Ask your questions. Share your answers.

How does the start relay on an irrigation pump work?

The start relay receives current from the irrigation controller’s MV (master valve) or relay circuit. (usually it’s 24vac). That connects 120/240vac to start pump.

What kind of pump do I need for sprinkler system?

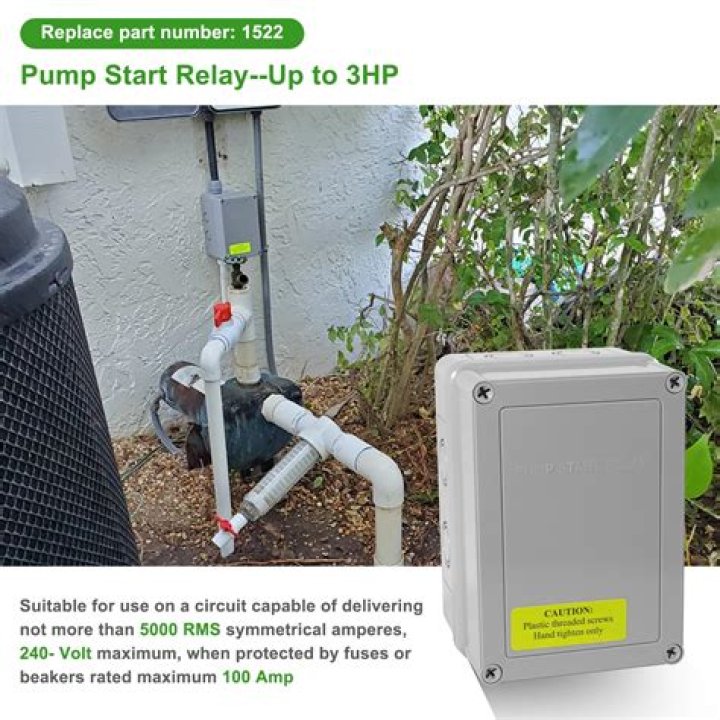

The Pump Start Relay was built with a simple, trouble-free design. It also has a heavy duty, water-resistant plastic case for indoor or outdoor installation. It works with 1HP 110V or 2HP 220V pumps. The Pump Start Relay automatically synchronizes your pump for watering with your automatic sprinkler timer.
