Is a hot water heater expansion tank necessary?

An expansion tank is always highly recommended if you have a ‘closed-loop system’ caused by any kind of check valve or pressure regulating valve installed on your house’s water supply line. However, the long-term wear and tear of this excess pressure can reduce the life expectancy of everything in your plumbing system.

How much pressure should be in a hot water expansion tank?

The recommended water pressure is between 50 and 60 PSI. Thermal Expansion Tanks contain an air bladder which is pressurized with air, and expands and contracts to absorb the expanded water from the water heater. needed.

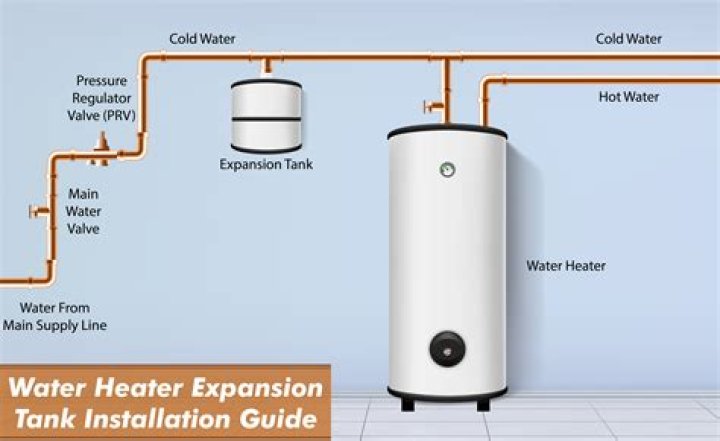

What does an expansion tank on a hot water heater do?

A hot water expansion tank is a small metal tank (usually 2-5 gallons) that’s installed just “downstream” of the cold water inlet valve that feeds your residential water heater. The expansion tank’s purpose is to protect your house’s hot water system from excessive pressure, which can cause damage to fixtures,…

How does an expansion tank ( CHW ) work?

It is simply a closed tank with a connection to the chilled water system. The closed tank has extra space that is filled with air, when the temperature in the system is cold. As the temperature within the chilled water system rises, the volume expands and fills the empty space within the tank. Expansion Tank (CHW)-4

How often does a hot water expansion tank wear out?

If you don’t have an expansion tank in your system, you really should get one. Expansion tanks will normally wear out after anywhere from 5-10 years. To extend their service life as much as possible, it’s vitally important to match your expansion tank’s air pressure to your house’s water pressure.

What should the pre charge be on an expansion tank?

Most expansion tanks are set to a pre-charge of 20 psi when they leave the factory, while the majority of residential water systems have significantly higher water pressure than that. This means that whoever installed your tank was supposed to manually increase the tank’s pre-charge to match the water pressure at the time of install. But did they?

Is it easy to replace a hot water expansion tank?

If you’ve determined your expansion tank is bad, or it’s old enough that you just want to replace it anyway, installing a new one is really easy — especially if you’ve already followed the above steps to test the pre-charge (meaning you’ve already relieved pressure from the line and closed all the appropriate valves).

Can a thermal expansion relief valve replace a water heater expansion tank?

The Thermal Expansion Relief Valve can replace a water heater expansion tank because it functions similarly. Both products absorb the excess pressure in the plumbing system created by thermal expansion.

When do expansion tanks need to be replaced in Ga?

In Georgia, water heater expansion tanks (aka Thermal expansion tanks) are required on new water heaters. Like most appliances in your home – expansion tanks do have a lifespan so at some point – they will need to be replaced. The average lifespan of an expansion tank is between 5 to 10 years.

Why is my expansion tank not working properly?

This can occur as a result of mineral deposits or other debris. Some older expansion tanks lack the internal bladders used in newer models. This component is what separates the water and air pressure. As a result, air can escape the tank and enter your system’s water, which increases the risk of damage.
