Is 3/4 PVC and CPVC the same size?

No. CPVC is measured by O.D., which makes its sizing similar to hard copper. PVC is measured by I.D., which makes its sizing similar to iron pipe.

What is the largest diameter of PVC pipe?

PVC pipe is available in sizes that range from 1/8 inch up to 24 inches in diameter. Some of the most common sizes are ½ inch, 1 ½ inch, 3 inch, 4 inch, 6 inch, 8 inch and 10 inch PVC pipe. PVC piping is shipped in standard 10 foot or 20 foot length sections.

What size is 4 PVC pipe?

Schedule 40 PVC Pipe Dimensions Chart

Will 3/4 inch PVC fit inside 1 inch PVC?

Any 3/4″ sch 40/80 pipe will fit very tightly into 1″ Sch 40. (It’ll require force to fit.)

How many mm is 3/4 PVC?

26.67 mm
PVC Schedule 40 Sizes Table

How big is a 3 / 4 inch PVC pipe?

3/4″ PVC pipe maintains flexibility, while adding additional diameter, and strength to the pipe. All FORMUFIT 3/4 in. PVC pipe is Schedule 40 pipe, which has an outside diameter of 1-1/16” (1.050 in.) and an average inside diameter of 0.824 inches.

Why are all PVC pipe fittings the same size?

This is because PVC pipe and fittings use a nominal system. That means that compatible parts are given the same name, so all 1″ pipe will fit in 1″ fittings and so on. The measurements in pipe names are the PVC nominal pipe sizes, but not how necessarily how far they measure across.

What is the OD of 1 ” PVC pipe?

For regular schedule 40 PVC pipe, the title 1″, for instance, means that the inner diameter (ID) is 1″. The pipe walls themselves have a thickness, though. The OD of 1″ PVC pipe is 1.315″. Schedule 80 PVC pipe has thicker walls than schedule 40, but still has the same OD.

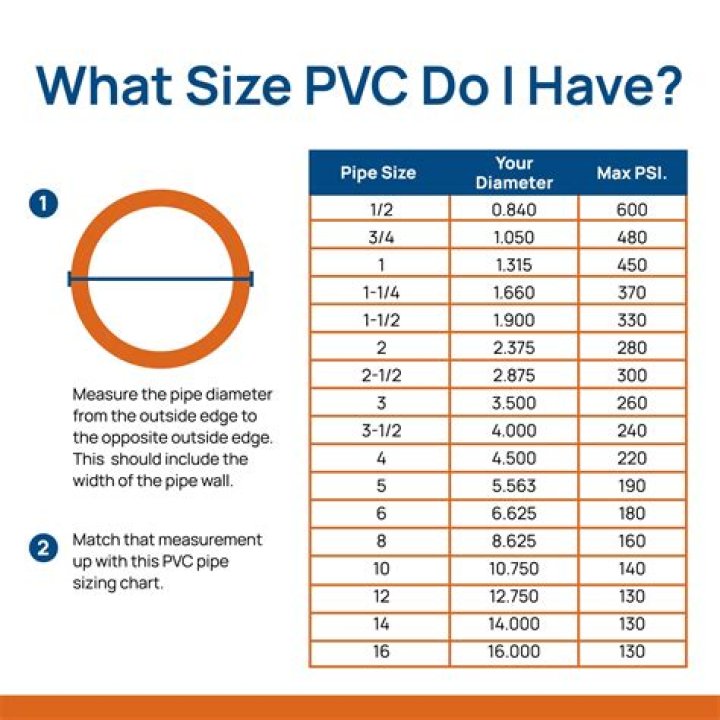

How do you find out the size of a PVC pipe?

Take your OD measurement and look in the second or third column (Actual OD) of each table below. Once the pipe OD is determined, look to the left-most column of the charge below (Pipe Size). This will be the nominal pipe size, or the size of fittings you want to order.
