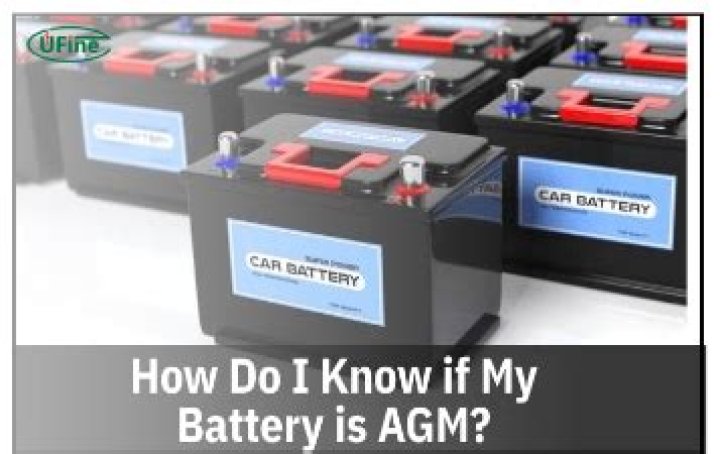

AGM lead acid batteries will say “AGM” or “Absorbed Glass Mat,” “sealed regulated valve,” “dry cell,” “non-spillable,” or “valve regulated” on the label. Look at the top of the battery. Liquid lead acid batteries have caps or removable tops unless they say “sealed” on the label.

How do I know if my battery is AGM or gel?

You’ll feel the type of liquid lead-acid battery has a wiggle after it’s heavily shaken. The liquid center generally continues to move for a while, even if the battery is sealed. It is exactly the opposite. If they are a gel-filled battery or an AGM lead-acid battery, they won’t wiggle after the shaking.

How can you tell the difference between AGM and flooded batteries?

The main design difference between FLA and AGM batteries is how the electrolyte is managed. In FLA batteries, the battery plates are submerged in the liquid electrolyte. During use, water in the electrolyte is broken down into oxygen and hydrogen gases and water is lost.

What is the difference between a standard and AGM battery?

AGM batteries generally last longer than standard lead acid batteries. Because of their low self-discharge rate, AGM batteries also last longer than their flooded counterparts when not in use. A well-maintained AGM can last up to 7 years, while flooded batteries typically last around 3-5 years.

Why are AGM batteries so expensive?

Why are AGM batteries so expensive? The downside to AGM batteries is that due to their high density of lead, and their higher manufacturing cost, they are considerably more expensive than your run-of-the-mill foreign battery. A group 31 battery is right around $300 from either of them online.

What should a 12 volt AGM battery read when fully charged?

Measure and record: A fully charged standard AGM battery should have an output voltage of approximately 13 volts, just higher than the 12 volts likely to be labeled on the side of the battery. If the reading comes in below 10 volts, you need to let your battery recharge.

How many years do AGM batteries last?

If kept in a charged state when unused, the common lifespan of a 12-volt Gel or AGM battery is up to six years. After five or six years of float voltage at an average ambient temperature of 25 ºC, the battery still retains 80 % of its original capacity.

Is AGM better than gel battery?

AGM batteries are comparably cheaper than Gel batteries, but they present a longer life span and offer bigger bursts of amps when needed. These batteries work best in high-power usage, such as sports vehicles.

Can you jump start an AGM battery?

Yes, you can jump start the car with an AGM installed. The battery may not charge on the alternator, so when you stop, it still won’t start again.

What is the voltage of a fully charged AGM battery?

The sealed AGM and gel cell battery voltage (fully charged) will be slightly higher in the 12.8 to 12.9 range.

What is the advantage of AGM battery?

What are the advantages of the AGM battery? AGM batteries have a very low internal resistance, are capable to deliver high currents on demand and offer relative long service life, even when deep-cycled. AGM is maintenance free, provides good electrical reliability and is lighter than the flooded lead-acid type.

Can I trickle charge an AGM battery?

Severely discharging and leaving the battery discharged can cause harm and shorten life in AGM batteries. If you’re not going to use the battery for a week or more at a time, we highly recommend a charger maintainer (also called a trickle charger) to keep the battery from discharging.

Do AGM batteries need a special charger?

AGM batteries do NOT require a special charger. However, LIKE ANY OTHER BATTERY, it will benefit from the ministrations of a quality “smart” charger. A regular ol’ constant voltage charger, such as you’d buy at the local auto parts store, feeds out power at around 12.7v (some are 12.6v, and some are 12.8v). That’s it.

What happens if you charge an AGM battery with normal charger?

Overcharging an AGM battery can lead to reduced battery life. Many modern chargers allow you to select whether you’re charging an AGM battery or a flooded cell option.

What is an example of an AGM battery?

AGM batteries are common and found in many applications such as RV batteries, boat batteries, motorcycle batteries, ATV batteries, and UPS & Telecom batteries for generators.

What is the AGM setting on a battery charger?

AGM is the mode on a battery charger used when charging Absorbed Glass Mat (AGM) batteries. AGM batteries are an advanced type of lead-acid battery. Most traditional or regular battery chargers are not suited for AGM batteries. These batteries need to be charged slowly at low voltages (“slow and low”).

How do you take care of an AGM battery?

When you are storing your AGM battery for longer periods, always remember to recharge. Store your battery in a place that has enough ventilation and ensure it is a cool and dry store. Avoid keeping your battery in a discharged state, as this will lead to sulfation.

Why does my AGM battery lose charge?

In the case of AGM batteries, lead acid is what is used, and it reacts in a different way when partially charged. When you partially charge AGM batteries, they with time lose their capability to charge to full capacity.

Is a deep cycle an AGM battery?

Absorbent glass mat (AGM) is a class of lead-acid deep cycle battery in which the electrolyte absorbs into a fiberglass mat. The plates in an AGM battery may be flat like wet cell lead-acid battery, or they may be wound in a tight spiral.

Is an AGM battery worth the extra money?

Definitely worth the price. The biggest perk is they hold their charge. You can charge it in the fall, come spring it’s still 100% charged. I know mine has lasted quite a bit longer than my old lead batteries…that said, I never spent the money on lead then I now do on AGMS.
