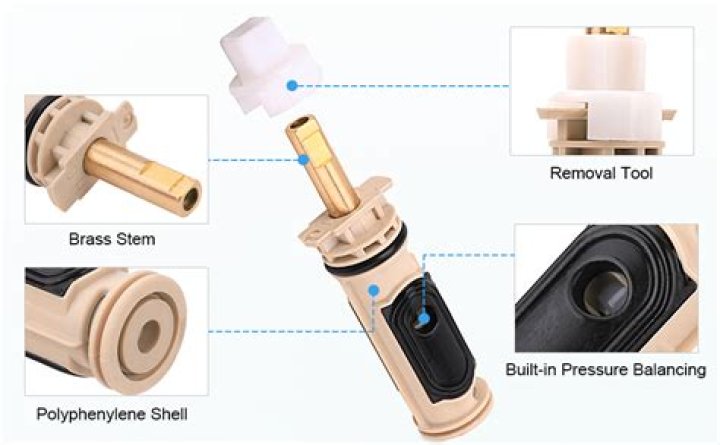

How to replace your Moen shower faucet cartridge?

Visit: for a step by step tutorial. Cartridge 1222 – (SHOWER FAUCET) Single-handle replacement cartridge, Posi-Temp®. Watch the 1222 Cartridge Removal & Installation Video: Cartridge 4000 – Unfinished replacement cartridge.

Where is the Moen cartridge valve stem located?

The cartridge valve stem is the moving piece inside the sleeve that is connected to the faucet handle and changes the mix between hot and cold and sometimes flow. Standard cartridges are designed for faucets, Roman tubs and tubs/showers. The original Moen cartridge, the 1200 provided one-handle operation.

How does a moentrol single handle shower cartridge work?

On most faucets when you move the faucet handle to the left, you will get hot water. If you move the faucet handle to the right, you will get cold water. This is a function of the cartridge stem. If the hot and cold are reversed, rotate the stem of the cartridge (#6) 180 degrees.

How to replace a 1222 cartridge in a single handle shower?

This article will give step-by-step instructions on how to replace a 1222 cartridge in a single handle PosiTemp valve shower. The water supply shut off valves must be turned off- see article How to Turn Off the Water Supply to the Faucet. The following instructions assume the handle and associated handle pieces have been removed.

Do Moen faucets have washers in them?

However, Moen faucets are designed with cartridges, and it is these you replace and not washers per se. Whichever Moen faucet model you have, you need only a few tools, a few minutes and a little patience to replace Moen faucet cartridges.

How do you replace a shower faucet cartridge?

How to Replace a Shower Cartridge: Step by Step Step one: Gather your supplies Step two: Prepare Step three: Remove the handle Step four: Remove the faceplate that surrounds the cartridge Step five: Remove the metal sheath surrounding the shower cartridge Step six: Remove the pin holding the cartridge in place Step seven: Remove the cartridge

How do you remove a faucet cartridge?

To remove the cartridge from your faucet assembly, first use a flat-headed screwdriver to carefully pry the cover from the handle. Using a Philips screwdriver unscrew the handle screw. Pull the handle off from the faucet and pull the limit stop off.

How do you reverse the hot and cold sides of a Moen cartridge?

Go to step 8 if you want to reverse the Hot and Cold sides. To remove the cartridge from your faucet assembly, first use a hex wrench to loosen and remove the screw from the front of the handle. Then, pull the handle off from the faucet. Unscrew the Philips screw and remove the adapter.

What to do before installing Moen 1224 cartridge?

We recommend to always flush the valve before installing the new cartridge: Clean the inside of the valve body with a soft bristled nylon brush (e.g. old toothbrush), to remove any mineral buildup. The next step will send a lot of water through the open valve.

Where is the retaining clip on a Moen cartridge?

Pull up on the stem of the cartridge to relieve any pressure in the valve. Then remove the washer and limit stop. ***This retaining clip is located in a recessed slot. It may be necessary to use a paper clip or something thin to remove this clip. You are now ready to remove the old cartridge.

How do you remove a Moen kitchen faucet?

For removing the moen kitchen faucet you should have the screwdriver. With the screwdriver remove the upper assemble part of the faucet then pull the handle off.[1] Then you can easily remove the handle from the hand.

How do you use a Moen cartridge puller?

The puller is designed to make use of the same threaded screw opening that the faucet handle was attached to. Continue to 5 of 5 below. Now that the Moen cartridge puller is attached, remove the cartridge. Hold onto the handle and twist the puller back and forth, clockwise and counterclockwise, as it’s being pulled.

How do you replace a shower cartridge?

What is the model number of a Moen cartridge?

Most Moen cartridge part numbers, also referred to as Model numbers, are within the 1200 series. However, there are exceptions. Cartridge 1255 – Single Duralast® cartridge.

Why does my Moen bathroom sink drain leak?

If the threads at the black gasket on the drain body are not filled in with Teflon tape or pipe dope, odds are good that the drain will leak at the threads. Check out my other videos, bookmark this channel by subscribing, it’s free! Loading…

Most Moen cartridge part numbers, also referred to as Model numbers, are within the 1200 series. However, there are exceptions. Cartridge 1255 – Single Duralast® cartridge.

What is the Posi temp cartridge for a bathtub faucet?

Your bathtub faucet is exactly the same way to change if you are installing a 1225B cartridge as this one is. The posi-temp cartridge is 1222 and moen guarentees them for life. I pick mine up at any hardware store.

Why does my Moen bathroom faucet keep leaking?

Moen stands behind their products. Based on our family’s positive experience and having grown up a plumber’s daughter, I wouldn’t buy anything else. The housing has some particles in it; take out the housing and clean the inlets. I had this same issue. A new Moen faucet in my bathroom and after a few months it started leaking from the tap.

How long does it take to replace a Moen cartridge?

The cartridges are standardized to allow easy replacement as well as upgrading. Cartridge removal and replacement takes just a few minutes. Review specific information on how to remove, install and troubleshoot issues with standard cartridges within each product tab below.

What are the different types of Moen cartridges?

Today, we also offer our line of dependable Duralast® cartridges, which feature a ceramic disc, for use in many of our newer faucets. In this module, you’ll learn about all of our different cartridge options, beginning with our standard cartridges and ending with our Duralast models.

How does a Moen bath tub mixer move?

In this image, you can see the most obvious components. Inside the mixer is a two layer moving section, one that moves specifically with the spindle and one that moves by water flow. First, push the spindle into the cartridge so that the insides are forced out the back.

Where to find series number on Moen single handle spout?

Single/Two Handle The series number may be stamped on the back side of the spout, near the base where it swivels on the sink. If you point your spout aerator (where the water comes out) so that it is facing the 3 o’clock position, the series number should be located on the opposite side at the 9 o’clock position.

How can you tell when Moen parts need to be replaced?

The best way to figure out what replacement part or accessory you need is if you know the “Model Number” of your Moen product. Once you know this, the replacement part or accessory can be identified using the product’s “Exploded Parts View” pdf document that can be found on the product’s website page.

How can I repair a Moen tub spout?

Loosen the Hex screw until the tub spout slides off. For additional information on Moen products visit solutions.moen.com and select the type of faucet you are repairing. The faucet guide will contain repair details, troubleshooting and specific information on assembling handles associated with that style of product.

How to identify my Roman tub STEM extension-Moen solutions?

For additional information on Moen products visit solutions.moen.com and select the type of faucet you are repairing. The faucet guide will contain repair details, troubleshooting and specific information on assembling handles associated with that style of product. Still Not Finding What You’re Looking For?

Who is the founder of Moen Faucet Company?

Developed by Mr. Al Moen, his design has led to one of the largest faucet companies worldwide, Moen, Inc. Moen produces both single and dual handle faucets for the kitchen, lavatory, tub or shower, bidet, bar, laundry and roman tub applications.

Who are the people that make Moen showers?

The people at Moen have special talents for being artists, innovators and problem-solvers and ultimately Moen products have been manufactured under their highest standards. The newest wave in shower technology is here. Get started today.

What kind of drain replacement parts do Moen sell?

Moen sells many kinds of drain replacement parts, including drain replacements for kitchen sink drains, bathroom sink drains, bathtub drains and shower floor drains. Turn off your Main Water Supply. Video Player is loading. This is a modal window. COMMON TYPES OF DRAIN REPLACEMENT PARTS (Click on the photo or link to see the category assortment):

How to replace a Moen stem cartridge hot or cold?

Please try again later. How to replace a Moen stem cartridge hot or cold in a bathroom sink. First things first shut off the hot and cold water then proceed on removing both handles use proper tools it have if not just follow the instructions on the video. Loading…

How do you replace a single lever shower faucet?

Put the screw, faucet handle and cover plate back on. Tighten the screw with the Philips screwdriver and push back the plastic cover over it. Open the water valves controlling the flow of water into the house and those on the water heater.

How do you replace a single handle shower handle?

First unscrew the set screw on the side of the handle, pull it off and unscrew the bonnet under the handle. Take out the cartridge, and unscrew and remove the trim surrounding the faucet. Use a screwdriver to unscrew these screws. All that is left is the shower body valve for the single-handle faucet.

Why is my Moen single handle kitchen faucet leaking?

When a swivel faucet is leaking from the base, some of the water may drip underneath the sink. You fix this by replacing the O-rings. If you have a Moen pull out kitchen faucet leaking from the base, however, the problem could be that the quick connector between the spout hose and the faucet base is leaking.

How do you repair a shower faucet?

How to Repair a Leaky Single Valve Shower Faucet Step 1 – Turn off Water Supply Step 2 – Screw Removal Step 3 – Taking the Escutcheon Away Step 4 – Remove the Valve Cartridge Step 5 – Replace O-Ring Seal or Gasket Step 6 – Ensure the Water Integrity on Valves Step 7 – Finishing Touches on Your Repairs

How do you remove the shower faucet?

Remove Faucet Handles Turn the shut-off valve on the water line for the shower and tub to turn off the water. Place the tip of a screwdriver beneath the edge of the decorative cap on a handle to pry it off. Turn screws in the center of the faucet handles counterclockwise to remove them, and pull the handles off.

What kind of grease to use on Moen faucet?

Grease up the o-rings with plumbers grease. In old faucets, the buildup of minerals and rust can cut an o-ring if it is not greased up. This will also help add life to the o-rings. Plumber’s Grease is a silicone based grease that will lubricate and protect rubber parts. It also helps keep cartridges and valve stems from corroding.

What kind of cartridge do you use for a bathtub faucet?

The steps are the same for a bath sink, tub or shower faucet with the same Moen cartridge. The most popular Moen cartridge is the 1200 brass style or the 1225 plastic body. You can replace an old cartridge with either model. Another style cartridge from Moen is the PosiTemp.

Can You lubricate a shower faucet Catridge?

When you lubricate Moen faucet cartridges, it takes care of squeaking. This procedure also works to fix a Moen shower faucet that is hard to turn. First, you need to loosen the screw holding on the handle. It is located at the back of the faucet. Then, take out the screws holding on the plate behind the faucet and remove it, too.

What is a cartridge in a faucet?

The cartridge is the entire basis for the faucet’s function. It contains a rocker switch capable of blocking off or opening both hot and cold water lines entirely, as well as to varying degrees.
