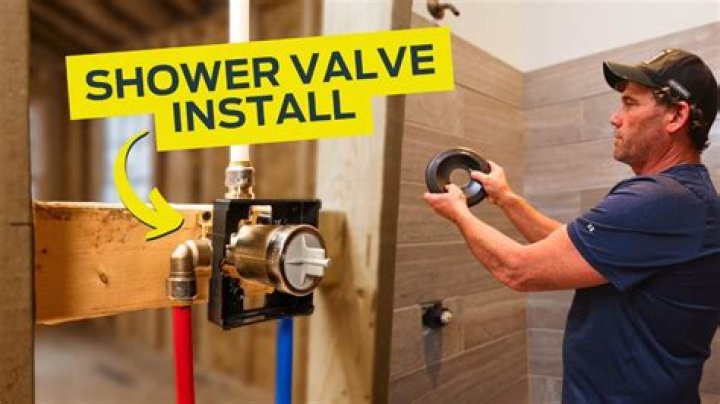

How to install a 4 port shower valve?

4- port:(2700 SERIES):Install casting with “UP” at the top (arrow pointing up). If the valve is to be used for both a shower and a tub, connect the top outlet to the shower and the bottom outlet to the tub, using 1/2″ iron pipe size or 1/2″ copper water tube, 5/8″ O.D.

What should I do if I Cannot Find my shower valve?

Turn off the water supply to the entire house if you cannot find the water stops for your shower. Cut an access hole to better reach the valve. After you remove the trim plate, you should see a small opening in the wall. If the wall opening is not at least 12 inches (30 cm) by 12 inches (30 cm), you will need to enlarge it.

Where are the water stops on a shower valve?

Master Plumber, Roto-Rooter Plumbing & Water Cleanup Expert Interview. 29 March 2021. The water stops are typically found to the right and left of the valve cartridge. If there are 2 stops for hot and cold water, shut off both. Usually, the water stops will have flat head screw heads that let you turn them on and off.

How to turn on a hot and cold shower valve?

Turn the valve on in the full cold position (handle pointing to the right) and turn on the cold supply for 15 seconds. Without closing the valve, turn to the full hot position (handle pointing to the left) and turn on the hot supply for 15 seconds. 3.

How do you replace a shower valve at Home Depot?

Apply a light coating of solder paste or flux to the inside of the valve fittings, and to the cleaned end of the copper pipe. Insert the end of the pipe all the way into the adapter. Use a torch to heat up the middle of the fitting. Apply solder to the joint between the pipes, letting it melt into the seam all the way around.

Turn off the water supply to the entire house if you cannot find the water stops for your shower. Cut an access hole to better reach the valve. After you remove the trim plate, you should see a small opening in the wall. If the wall opening is not at least 12 inches (30 cm) by 12 inches (30 cm), you will need to enlarge it.

How do you replace a shower spout at Home Depot?

Push it firmly into the valve, making sure the marks on the shower cartridge line up with the slots on the valve. When inserted properly, it should have a snug fit. Screw on the bonnet nut and tighten it down with pliers. To install the tub spout, solder the enclosed adapter to the outlet pipe. Apply a layer of flux to the outside of the surface.

Where are the water stops on a shower head?

Water stops are usually at the right or left side of your valve cartridge. Turn off both the hot and the cold water stops if the two are present. If there’s no other way of stopping the flow of water, cut off the main house source of water. With the help of a hex, remove the handle of the shower head faucet.
