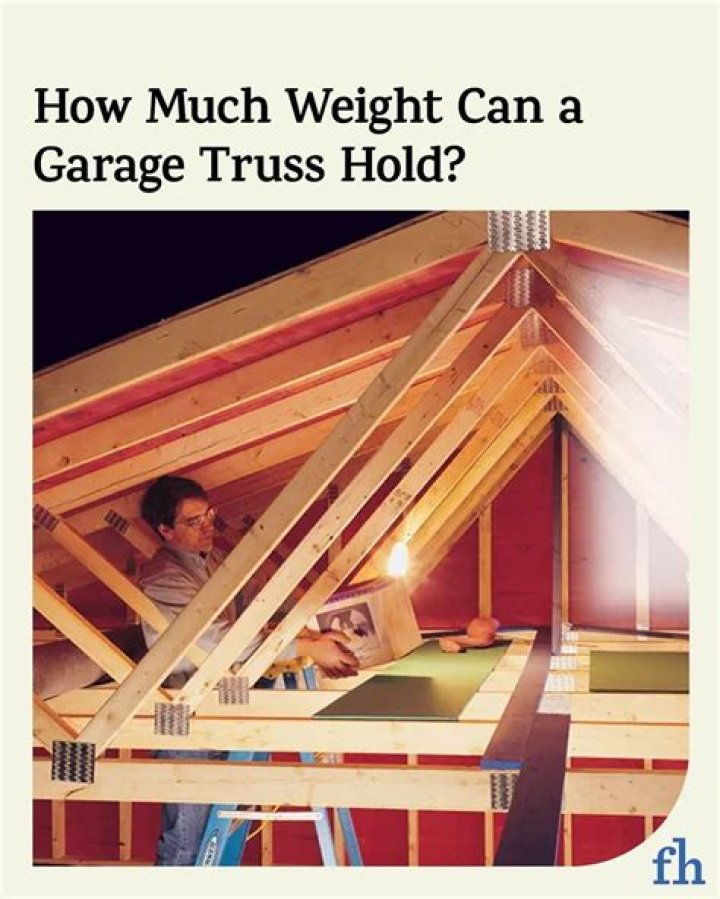

The horizontal bottom chords of most garage trusses are designed to carry the weight of drywall and insulation. So if your ceiling is unfinished, you have some excess carrying capacity up there: 5 lbs. per sq. ft. is a safe estimate.

How much weight can you hang from garage trusses?

General rule of thumb, you can hang around 5 to 10 pounds of weight from a roof truss. Remember, if you’re planning to build a roof truss for your garage, it’s recommended to hire a structural engineer.

How much weight can you hang from a ceiling stud?

Ceilings are another matter, though, thanks to the direct downward pull of gravity. The average 2×4 ceiling joists can’t safely hold more than around 15 to 20 pounds regardless of the hanging hardware you use. A 5-inch flower pot with the combined weight of soil, water, and a plant can easily reach that weight.

How much weight can a garage stud hold?

A screw in a stud can hold between 80 and 100 pounds. Be sure to distribute the weight across as many as you can. The easiest way to increase the amount of weight a screw in a stud can hold is to simply double up.

How much weight can a 2x4 ceiling joist hold?

They are not meant to support any weight. I personally wouldn’t put more than 20 pounds on a single 2×4 joist that is say, 10 ft long. In my own shed I have some long stuff stored on the 2×4 joists, but it is very lightweight – like a few spare vinyl siding pieces and they are supported by 6 or 8 joists.

How much weight can I put in a garage attic?

The horizontal bottom chords of most garage trusses are designed to carry the weight of drywall and insulation. So if your ceiling is unfinished, you have some excess carrying capacity up there: 5 lbs. per sq. ft. is a safe estimate.

How much weight can a roof hold?

While the average roof can withstand 20 pounds per square foot, there’s a huge range in the weight of snow: Fresh, light snow can weigh just 3 pounds per square foot… so your roof may be able to hold over 6 feet of it. Wet, heavy snow can weigh 21 pounds per square foot… so a foot of it could risk collapse.

How much weight can attic joists support?

Attic Joists for Live Loads In many cases, ceiling joists for dead loads are designed to carry 10 pounds per square foot (psf), as opposed to the 40 or greater psf that live-load joists must carry. Span length is different for every room.

How do you reinforce rafters?

1. Apply construction adhesive. Apply construction adhesive along the edge of the truss to strengthen the connection to the plywood roof deck. …
2. Stiffen Trusses. …
3. Brace gable ends. …
4. 4a and 4b. …
5. Clean out gutters. …
6. Repair and caulk flashing. …
7. Check for loose or damaged shingles. …
8. Lift shingles or underlayment.

How much weight can 2 studs hold?

One 2″ x 4″ x 8′ #2 Spruce Pine Stud is good for about 3000 lbs of compressive load, when held in place by drywall. That being said, your mileage will vary significantly; actual strength of a 2×4 stud is usually controlled more by how well the board is framed into the wall at the top and bottom.

Article first time published on

How much weight can you hang on a 2x4 wall?

A 2×4 can support up to 1,000 pounds vertically. This dimensional lumber is the most common material used to frame interior and exterior walls on a home. When used as wall studs, 2x4s are typically grouped to create a wall, spaced 16 inches apart.

How do you hang a heavy bag from a garage rafter?

You have to hang your bag on a middle joist, and a crossbeam will help you the best. Use a level to drill holes into the ceiling joists. Keep the holes straight across the beams and then attach a hardwood board to the ceiling. You need to attach it to the base with the help of newly drilled holes and wood screws.

How much weight can ceiling hooks hold?

In most cases though, for anything above 5 pounds, any hook that screws into a wall or ceiling stud is the recommended hook to use. For weights below 5 pounds, an adhesive hook will do the job. Adhesive hooks are also easily removable and won’t damage the surface they’re attached to when removed.

How much weight can a ceiling swing hold?

So, let’s talk about weight requirements: “A single person swing should have a mount of 600 pounds capacity or more,” Chenkin says, noting that a double swing requires two mounts. Now, for the install. First, you have to pre-drill holes and use suitable lag bolts to attach the mounting.

How can I strengthen my garage truss?

1. Jack up the centre of the trusses, then reinforce each bottom chord with a 2×4 that spans the entire width of the garage.
2. Jack up the centre, reinforce (as above), and also replace any wood strapping with steel mending plates, hurricane ties, etc.)
3. Leave it as is, strap up drywall, pray to the gods.

How much weight can you suspend from ceiling joist?

If you have another floor above your garage, the ceiling\floor structure can usually support up to 40 lbs/SqFt (including the weight of the floor above it). If you do not have another floor above, the ceiling trusses may only be able to hang a maximum of 10 lbs/SqFt.

How much weight can a joist hold?

That means the joists can support a minimum of 40 pounds per square foot live load. Though, by consulting the 50 pounds per square foot live load/10 pounds per square foot dead load table, you can see the joists’ span would need to be reduced to 11 feet 11 inches to support heavier weight safely.

Can my roof hold me?

Many traditional roofs are designed to hold a minimum of 20 pounds of weight per square foot. … Because of this, there is not a significant impact on one area of the roof. However, if a human were to sit on the roof, the weight would be concentrated on one location. This can lead to disaster and serious damage.

Can you damage a roof by walking on it?

Walking on your roof (unless absolutely necessary) Beyond the potential of falling off, there is the actual damage to the roof that may occur as a result of your walking on it. Walking on your asphalt shingles can leave the shingles bare, dislodge them or create gaps that can increase the potential for leaks.

How much weight can a concrete roof support?

When completely healthy and showing no signs of wear and tear, a concrete roof can safely support around 1,200 pounds (0.54 t) per square foot.

How do I know if my attic can hold weight?

The thicker the rafters, the more secure they are. There’s no way to tell from here if the attic floor or even the rafters will support you. Even if it has held you before, damage to the attic floor, including water damage, can undermine its stability.

How much weight can a 2x6 Rafter hold?

The Codes allow for a 2×6 joist to support 53lbs per linear foot, which means an 8.5-foot length could support approximately 450-pounds across that length. Although a 2×6 will support more before failing, the aim is to prevent it from failing. Shortening the span may also increase the amount the wood can support.

How much weight can I put in my loft?

Typically the joists in a loft will support about 40kg/m2 of weight so providing you’re storing less than this you won’t need to do any additional work to strengthen the joists.

What can I do with garage rafters?

Use care when working in the rafters or on a ladder. Reinforce the rafters in your garage for storage. If your garage has open rafters below the roof, you’ve got a wealth of storage space available above your head. By laying a board or set of boards onto the rafters, you can store many items up and out of the way.

Is roof sagging a problem?

Sagging is a common roofing problem that appears in homes with roofs that haven’t been replaced in a long time due to a deteriorated structure. They are also a common problem in older homes due to the way roofs used to be designed. In terms of how much roof sag is acceptable, just about any sagging is bad.

How much weight will a 2x4 hold horizontally?

In general, a 2×4 can hold a horizontal load of around 20 to 40 pounds per linear foot if the weight is evenly distributed. If the weight is centered between the span, that number could drop to 20 pounds total or less for longer 2x4s. Other factors can increase the weight that a 2×4 can support as well.

Are 2x4 walls load bearing?

If it’s a solid 2×6 or greater turned vertically going from the jack stud on one side to the other, there’s a good chance the wall is load bearing. If there are only cripple studs on a flat 2×4 to give you something to attach the drywall, it likely isn’t load bearing.

What is stronger 2x4 or 2x6?

Bearing capacity is a function of the footprint area of all the studs in a wall. … The total bearing area of three 2x4s is 15 3/4 square inches; two 2x6s have a bearing area of 16 square inches. In bending, however, such as from a wind load, a 2×6 wall is considerably stronger.

What weight can screws hold?

In general, a screw can hold 80-100 pounds. Several factors can impact on the amount of weight the screw can hold. This includes the length of the screw, the type of thread, the quality of the screw, the way it was inserted, and the type of forces that will be acting on it.

How much weight can 4 screws hold?

A thin nail in a wood stud can hold up to 20 pounds and several coarse threaded wood screws in wood studs can hold up to 100 pounds or more.

What span can a 2x4 support?

A 2×4 can span a maximum of 6′ 7” when spaced 16” apart and used as a floor or deck joist. When used as a ceiling joist or a roof rafter, a 2×4 can span up to 7′ 3” spaced at 16”, and 6′ 4” when spaced 24” apart. Due to the small spans of 2x4s, they often are not used in horizontal load-bearing capacities.
