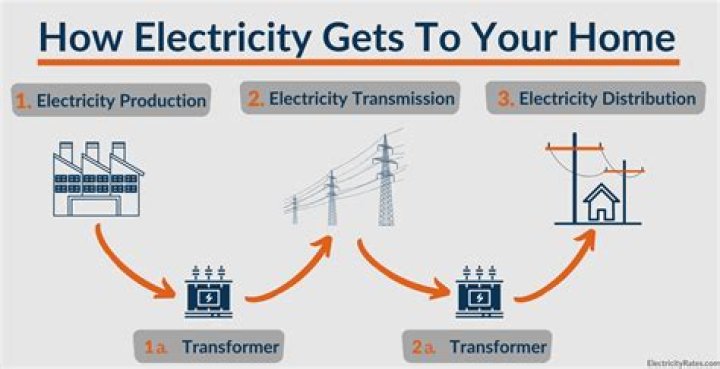

These days, almost every residential customer can get 120 volts from their wall outlet. However, power is typically delivered into your home at a nominal voltage of 240 volts.

How many volts are supplied to a house?

Today, virtually all American homes and businesses have access to 120 and 240 V at 60 Hz. Both voltages are available on the three wires (two “hot” legs of opposite phase and one “neutral” leg).

How much power enters a house?

Most homes have an electrical service of between 100 to 200 amps. Amperage is a measurement of the volume of electricity flowing through wires, and this measurement can vary between 30 amps in very old homes that have not been updated to as much as 400 amps in a very large home with extensive electric heating systems.

Is my house 120 or 240?

Method One. Locate the breaker in your electrical panel that is connected to your thermostat. If you see a single breaker switch like the one shown in the picture below, you likely have 120V. If you see a double breaker, like the pictures shown below, you likely have 240V.

Does my house have 110 or 220?

Most houses today have two 110 volt wires and one neutral wire running into the house from the local distribution system. … If there are two 110 volt wires running to the house, then the house has 220 volt service and appliances, such as dryers and air conditioners.

Is 220 the same as 240?

In North America, the terms 220V, 230V, and 240V all refer to the same system voltage level. … With electrical loads, the voltage will drop, hence the common reference to voltages below 120 and 240, such as 110, 115, 220, and 230.

Do all houses have 240V?

Most American houses will have two 240V (nominal) receptacles: one for the kitchen range (NEMA 14–50) which requires a 50A dedicated circuit, and one for the clothes dryer (NEMA 14–30), which requires a 30A dedicated circuit. These are usually located behind the appliances, so they are normally inaccessible.

Can I plug 240V into 220V?

Yes, any device that is classified in 240 volts and can be used in a 220V socket.

How do I know if I have 115 or 230?

The voltage reading should be within 10% of the voltage. For example, if the voltmeter reads between 207 and 253 volts, then you know you have a 230V motor.

Is home voltage 110 or 120?

The most common electrical outlet in any home is a 110 volt. Sometimes you may hear 110 volt plugs referred to as 120 volt. Do not be confused by this; think of them as one and the same.

Article first time published on

How does a house get 240 volts?

The way you get a 240-volt circuit is simple. A “double-pole” circuit breaker is clipped into both 120 buses at the same time, so the voltage to the circuit is doubled. That’s why 240-volt circuits need two hot wires and a neutral to carry the electricity to the appliance, plus a ground wire.

How many amps is 7200 volts?

So the 7200 volt primary line must be able to deliver 16 amps to the primary coil. Each leg of the 3-phase circuit pulls 16 amps, from 3 separate wires at staggered times as the generator rotates.

What is a 110 outlet?

A 110 volt outlet is the standard for USA electrical house wiring. It looks like this: The voltage “110” is as common in conversation as 115, 117, and 120. See When referring to voltage in a US household, I have heard the term “110 volt outlet” and “120 volt outlet” used interchangeably.

How do I get 220v in my house?

Fortunately, with the help of an electrician, you can add 220-volt service to your home, or run more 220 circuits if you need to add extra outlets. Modern homes hooked up to the electricity grid take in energy from the utility company at 220 volts, which is then split into two 110 volt lines.

What is a 240 outlet?

What’s a 240-Volt Outlet? … 240-volt outlets use two 120-volt wires simultaneously, plus a neutral wire to power a single receptacle. Older homes and appliances may use three-prong 240-volt outlets. However, modern outlets and appliances use a ground wire too, which means modern 240-volt plugs have four prongs.

How many watts is 240 volts?

How many Volts are:Equivalence in Watts127 Volts1759.76 Watts220 Volts3048.41 Watts240 Volts3325.54 Watts277 Volts3838.22 Watts

Can I use 240 volts in Philippines?

In the Philippines the standard voltage is 220 V and the frequency is 60 Hz. You can use your electric appliances in the Philippines, if the standard voltage in your country is in between 220 – 240 V (as is in the UK, Europe, Australia and most of Asia and Africa).

Are dryers 220 or 240?

Most electric dryers are rated at 240 volt. The nominal voltage is 240 volt, but homes may have 208V, 220V, or 240V power supply. Any appliance that is rated for 240 volts can also be used on a 220V or 208V outlet.

Can you convert a 120V outlet to 240?

IF the outlet is the ONLY outlet on the circuit, it’s perfectly fine to change it to a 240V outlet (or disconnect, given it’s for a heat pump) and change the breaker to a two-pole 240V 15A breaker – all your 120V wiring is already rated for 250V if not 600V.

Can I plug 230V to 110V?

Plugging a 220v device into a 110v outlet is not recommended. If you did, it’s highly likely that you’ll damage or destroy the appliance. If your device has no motor, then it’ll perform poorly, running on half the needed energy. If the device does have a motor, then the lower voltage can damage it.

Is 115 volts a regular plug?

Window units with standard, three-prong plugs may be used in regular household outlets, regardless of whether the air conditioner requires 110-, 115-, or 120-volt electricity. No special outlet is required. However, if the unit has a round plug, you may consider changing the wall outlet to match it.

What Does It Mean 115 230 volts?

A 115 volt circuit is wired with one hot wire that carries the current with one neutral and a ground wire; while 230 volt circuits are wired with two hot wires and a ground. The amp load is split between the two hot wires which provides the somewhat deceptive amp draw on the motor label.

What is the difference between 220 and 230 volts?

Wiring an outlet for 230 volts is identical to wiring an outlet for 220 or 240 volts. When electricity is wired into a home, the power company delivers electricity at 120 and 240 volts with a plus or minus of 5 percent. Therefore 220, 230 and 240 volts are all interchangeable and wired the same.

What are 250V outlets for?

While most small plug-in appliances and electrical fixtures in your home operate on 120-volt circuits and are plugged into ordinary outlet receptacles, larger appliances—including electric stoves, electric dryers, electric water heaters, and larger air conditioners—are powered by 240/250-volt circuits.

What does 100 to 240V mean?

100-240V is telling the buyer that this item will operate correctly on any AC voltage between 100 and 240 Volts. Provided your mains power is between 100 and 240 Volts AC and 50 to 60 Hz this item will work equally well and as intended.

Is house electricity AC or DC?

When you plug things into the outlet in your house, you don’t get DC. Household outlets are AC – Alternating Current. This current has a frequency of 60 Hz and would look something like this (if you plotted current as a function of time).

What is a 220 outlet?

220-volt outlets are the most powerful plugs that you’ll find in most residential homes around the United States. These plugs are meant for ovens, dryers and other high-powered appliances that you simply can’t power with a standard 110V outlet.

Is 120 volts a lot of electricity?

Ordinary, household, 120 volts AC electricity is dangerous and it can kill. to flow in a circuit. … We can use a simple formula to calculate the current: Current in Amps = Voltage in Volts divided by Resistance in Ohms. Using electrical tools or equipment in wet areas can be a hazard.

Is 240V single phase?

For 240V circuits, the potential difference is between two hot wires that are 180° out of phase (see Figure 1). Because we only measure across two wires, both 120V and 240V are referred to as single-phase power. (It’s rare to find three-phase AC power in residential situations).

Is 240V single phase or 3 phase?

240V power is used in the US and parts of the world. In the US 120 / 240V 1 Phase 3 Wire is the standard for homes and 240V 3 Phase Open Delta is the standard for small buildings with large loads. In parts of the world 240V Single Phase 2 Wire is the standard for homes.

How does a 120 240 transformer work?

Each 120 volt winding is rated at one-half the nameplate KVA rating. For example: A 10 KVA transformer, 120/240 volt secondary is to service an 8 KVA load at 240 volts and two 1 KVA loads at 120 volts each. If the incorrect method is used, winding A will be loaded at 6 KVA, and winding B will be loaded at 4 KVA.
