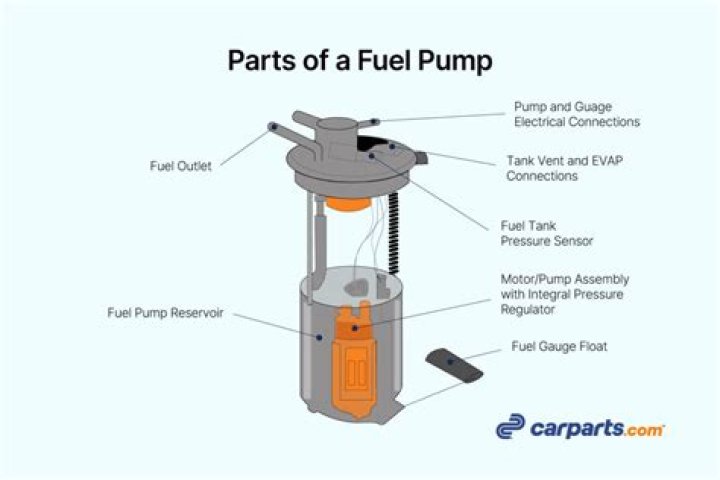

How many volts should be going to a fuel pump?

Like ee_chris said, 12 volts should be going at the pump.

Can you test voltage with power off?

With the power shut off, simply connect a test wire to a circuit wire in one box, clip the lead to the test wire and touch the probe to the ends of the circuit wires in the other box. The bulb will light when you find the right wire. Another great use for the circuit tester is to determine whether a switch is working.

How much power does a fuel pump use?

On most vehicles, a new fuel pump draws about three to five amperes of current. This amperage or current draw can be measured at the fuel pump fuse located in the vehicle’s fuse box.

What causes low voltage at fuel pump?

The voltage drop occurs because of resistance in the circuit that supplies the pump. The resistance could be in the connectors, grounds or harness. A resistor or insulator prevents the flow of electricity in a circuit. Resistance can be caused by corrosion, fretting and even air.

How do I know if my pump is 110 or 220?

The control box has the power cables that go to the submersible well pump. Above ground pumps will have a label on the motor that has a label. The label should indicate the voltage, most likely 220 or 230 volts and the horsepower or current draw (in amps) of the pumping equipment.

What should I do if my voltmeter has no range?

Most voltmeters have several options marked for voltage, so you can change your meter’s sensitivity to get a good measurement and avoid damaging the device. If your digital device has no range option, it is “autoranging” and should detect the correct range itself. Otherwise, follow these guidelines:

How do you check voltage on a multimeter?

Check the meter and adjust it to get an accurate reading. Analog multimeters have a needle that moves to measure voltage. Watch for the needle to move toward the voltage numbers printed on the multimeter. Analog multimeters also have separate rows of numbers labeled for AC and DC settings, so make sure you’re looking at the correct one.

How do you insert a test lead into a voltmeter?

Insert the test leads. Your voltmeter should come with one black and one red test leads. Each has a metal probe on one end, and a metal jack on the other that slots into the holes in your voltmeter. Plug in the jacks as follows: The black jack always plugs into the hole labeled “COM.”

Is there a way to check the voltage of a wire?

Yes, you can check the voltage by plugging in the cord, then setting your meter to ACV (AC Volts) on a scale higher than your line voltage. Or set the meter to the lowest resistance range, and measure each wire separately from plug to receptacle (not plugged in) — should be 0 for each.

Can a voltage drop test be done on a fuel pump?

TESTING VOLTAGE DROPS. A voltage drop test is the only effective way to find excessive resistance in high-amperage fuel pump circuits. With the right leads and back-probes, it’s possible to do the test (if you have access to the top of the tank) without any disassembly.

How do you test a fuel pump with a multimeter?

Separate the connectors by having the ground on one side and the live phase on the other. Connect the ground circuit to the digital multimeter. One socket toward the fuel pump and the other socket to the battery. What the multimeter should indicate on-screen must be less than 0.1 on the negative circuit.

What should I do if my voltmeter is not working?

If you are measuring a DC circuit and get no result, look for a small knob or switch on your device labeled DC+ and DC- and move it to the other position. If your device does not have this option, reverse the positions of the black and red probes. Reduce the range by one setting. Repeat if necessary until you get a real reading.

How to test a submersible well pump meter?

Using an ohmmeter set to R X 1,000, place your leads on either of the contactor terminals. The meter should swing toward zero, then back to infinity. One unfortunate and important note for this test is that a capacitor that has lost some capacitance may test okay, however, it may no longer function properly. Check the QD relay.
