Disconnect the black negative cable on the negative post of the battery.Look at the ignition coil. … Connect one end of the spark plug wire to the large center terminal of the ignition coil. … Connect the positive terminal of the ignition coil to the “On” terminal of the ignition switch.

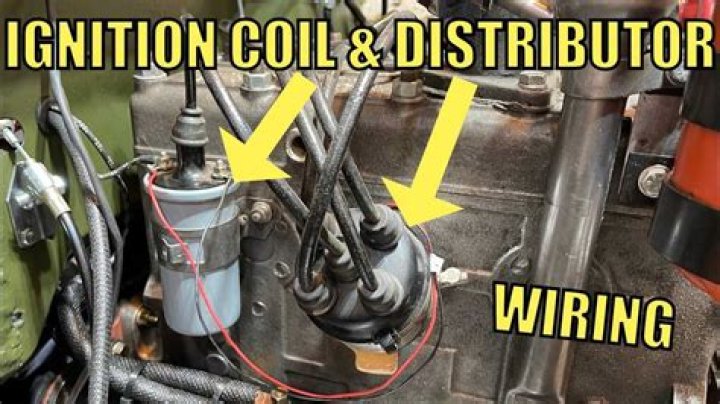

How are ignition coils wired?

1. Disconnect the black negative cable on the negative post of the battery.
2. Look at the ignition coil. …
3. Connect one end of the spark plug wire to the large center terminal of the ignition coil. …
4. Connect the positive terminal of the ignition coil to the “On” terminal of the ignition switch.

How many wires are there in an ignition coil?

An ignition coil consists of a laminated iron core surrounded by two coils of copper wire. Unlike a power transformer, an ignition coil has an open magnetic circuit — the iron core does not form a closed loop around the windings.

Do ignition coils have wires?

Ignition coils can have either an internal resistor or an external resistor or resistor wire, which serves the purpose of limiting the current flowing into the coil from the car’s battery. … Most ignition coil systems today use a power transistor to provide pulses to the ignition coil.

Where is the coil wire?

The ignition coil wire sits in the ignition distributor of your car and transforms the battery’s voltage to the voltage needed to stimulate your spark plugs. The voltage from a battery is only 12 volts. A spark plug needs thousands of volts to have enough energy to turn your engine over.

Is ignition coil same as coil pack?

The ignition coil is a device which is capable of generating a high voltage pulse which goes to the spark plug. Coil pack refers to the set of coils used in the engine which do not run a distributor. A computer controls the set of coils.

What sends power to the coil?

A gasoline-powered vehicle’s ignition coil gets power initially from the starter battery and, once the engine is up to speed, from the generator (usually an alternator with rectified DC output). Of course, the alternator charges the battery so you could argue that the ignition coil always gets power from the battery.

What is the ignition wire?

Spark plug wires (also referred to as ignition wiring) transfer the spark from the distributor or ignition coil to the plugs. The subsequent spark ignites the air-fuel mixture in the combustion chamber of your engine.

Are cheap ignition coils OK?

While low-grade coils cause misfiring and difficult starting, using them can have more serious consequences. As coils are controlled by the engine management computer (ECU) they rely on fly-back voltages that are fed back after the spark plug has been ‘fired.

What is an ignition wire set?

Older vehicles with distributor-type ignition systems use ignition (or spark plug) wires to send electrical current from the distributor to individual spark plugs, with the timing based on their firing order.

Article first time published on

How can you tell if a coil wire is bad?

Symptom 1. If the engine stops and starts erratically while driving, or if it cuts out altogether and refuses to restart, you may have a bad wire between the coil and the distributor. Constant movement, caused by engines vibration and the wire’s tendency to flex slightly, fatigues the wire’s central core.

How do you know which side of the ignition coil is negative?

Crank the engine over (do not start it) and the needle of the voltmeter should show an upward swing to the plus or positive side (do not worry about taking a reading). If volt the needle swings down to the negative side and gives a negative reading, your coil is hooked up backwards.

Does the length of spark plug wires matter?

No, the length of sparkplug wire does not matter. However, The engine will not operate properly without the proper thread reach. If a spark plug with the wrong thread length is erroneously used, the piston or valve could strike it and damage the engine.

What wire connects to the spark plug?

The wires that connect a distributor, ignition coil, or magneto to each of the spark plugs in an internal combustion engine are known as high tension leads or spark plug wires.

Why is my ignition coil not firing?

Misfiring can be caused by loss of spark; imbalanced air/fuel mixture; or loss of compression. … Loss of spark is caused by anything that prevents coil voltage from jumping the electrode gap at the end of the spark plug. This includes worn, fouled or damaged spark plugs, bad plug wires or a cracked distributor cap.

What are signs of a bad spark plug?

• Engine has a rough idle. If your Spark Plugs are failing your engine will sound rough and jittery when running at idle. …
• Trouble starting. Car won’t start and you’re late for work… Flat battery? …
• Engine misfiring. …
• Engine surging. …
• High fuel consumption. …
• Lack of acceleration.

Can I use a different ignition coil?

In simple terms coils are rated by their primary resistance—less resistance in the primary windings of the coil allows more current to flow, which makes a stronger magnetic field. … These coils can be used on virtually any inductive (non-capacitive discharge) ignition system.

How do you stop ignition coils from failing?

Keeping your spark plugs in optimum condition can reduce your chances of experiencing an ignition coil failure. As spark plugs wear down, the gap in which each spark plug is fired is widened, meaning the coil needs to provide a higher voltage in order to bridge the gap.

Do aftermarket ignition coils make a difference?

Will ignition coils increase horsepower? – Quora. No, unless they’re somehow defective as installed. If you’re asking if aftermarket coils installed in a stock engine will increase horsepower, or reduce emissions, or increase gas mileage, or make the engine run smoother, the answer is no.

Does brand matter for ignition coils?

Coils from a quality manufacturer are worth the extra money. They also will be a better fit and be very close to the electrical requirements of the engine. Cheap coils try to use as few designs as possible, and electrical input/output might vary substantially.

Are aftermarket ignition coils good?

Just because something is popular doesn’t mean it’s always good. Aftermarket ignition coils are never worth the extra few bucks in savings. In a few cases, you can get away with using a cheap universal aftermarket part as long as it doesn’t affect: The engine’s performance.

How does the ignition coil produce the high voltage spark?

The ignition coil is the heart of the ignition system. As current flows through the coil a strong magnetic field is built up. When the current is shut off, the collapse of this magnetic field to the secondary windings induces a high voltage which is released through the large center terminal.

What are smart ignition coils?

Product Description. This is a “smart coil” for applications that do not have an igniter. This coil offers the high spark energy and voltage typical of a CDI ignition system, but delivers a long spark duration that can only be achieved using inductive coils.

Does ignition coil need grounded?

Let me disagree with other answers: An Ignition Coil does not need to connect to ground. It needs to be capable of receiving electrical pulses on its input. It is , after all, a transformer and the primary winding is pulsed to make a HV spark on the Secondary winding.

What is a ballast resistor for a ignition coil?

A Ballast Resistor is an electrical device that reduces voltage to the coil so that more energy is available for the spark plugs during starting.

Where do you put dielectric grease on an ignition coil?

It is a preferred grease for automotive ignition applications because ignition systems use rubber boots to keep the spark plugs and spark plug wires away from moisture Silicone dielectric grease is used on the bottom of the inside of the ignition coil boot where the spark plug meets the ignition coil.

Should I use anti seize on spark plugs?

NGK spark plugs are installed at the factory dry, without lubrication or anti-seize. Anti-seize can act as a lubricant, altering torque values up to 20 percent, increasing the risk of spark plug thread breakage and/or metal shell stretch. … Do not use anti-seize or lubricant on NGK spark plugs.

Do ignition coils need dielectric grease?

TIP: All the ignition coil boots will require proper application of dielectric grease. Only use the green color dielectric grease. Do Not use the white/clear dielectric grease as it will not work for this application. Apply it correctly or the engine conditions/damage may re-occur.
