Hysteresis losses will increase with frequency, and they are greatest in materials that have a high retentivity. These materials, once magnetized, tend to retain their magnetism. It requires more energy to demagnetize them than those with low retentivity.

How does frequency affect hysteresis?

Indeed, an increase of the frequency involves a swelling-up of the hysteresis loop at constant magnetic flux density and so an increase of iron losses. … Thus, for several levels of magnetic flux density, iron losses in electrical steel sheets are measured by varying the frequency.

What is hysteresis loss and how it is dependent on supply voltage and frequency?

Eddy current loss and hysteresis loss are almost independent of load, significantly depending on supply voltage and frequency. As the flux density or flux is constant for a given voltage and frequency, eddy current loss and hysteresis loss remain constant at any load. Therefore, these losses are called constant losses.

How do hysteresis and eddy current losses depend on frequency?

If maximum flux density is constant, and thickness also constant, In that case, eddy current losses are directly proportional to the square of the frequency. Hysteresis losses: These are due to the reversal of magnetization in the transformer core whenever it is subjected to the alternating nature of magnetizing force.

What is hysteresis loss proportional to?

Hysteresis losses are proportional to the electrical frequency and the eddy current losses are proportional to the square of the electrical frequency.

What causes hysteresis loss?

Hysteresis loss is caused by the magnetization and demagnetization of the core as current flows in the forward and reverse directions. As the magnetizing force (current) increases, the magnetic flux increases. … In order for the flux density to reach zero, the magnetizing force must be applied in the negative direction.

Does hysteresis loss increase with frequency?

Hysteresis losses will increase with frequency, and they are greatest in materials that have a high retentivity. These materials, once magnetized, tend to retain their magnetism. It requires more energy to demagnetize them than those with low retentivity.

What is meant by hysteresis and hysteresis loss?

Definition: The work done by the magnetising force against the internal friction of the molecules of the magnet, produces heat. This energy which is wasted in the form of heat due to hysteresis is called Hysteresis Loss.

What is hysteresis loss and eddy current loss?

The loss which occurs because of the eddy current is known as the eddy current loss. The eddy current induces because of the interaction of the variable magnetic field and conductor. The loss which occurs because of the reversal of the magnetising force is known as the hysteresis loss.

How can hysteresis losses be reduced by eddy current?

Due to the constantly changing magnetic fields, there is a loss of current in the core. One easy solution for how to reduce eddy current losses in the transformer is to make the core by stacking thin sheets together. This will decrease the eddy current and hence the losses made by it too.

Article first time published on

Which hysteresis loss will depends on?

Detailed Solution. Hysteresis loss least depends on the ambient temperature. Varying rates of hysteresis and eddy current losses with the temperature are different and fluctuate with flux density and frequency.

Does hysteresis loss depend on voltage?

Depending upon the magnetic properties of the core material its value varies from 1.5 to 2.5. As we know that the voltage applied is approximately equal to the induced voltage in the transformer. The above relation shows that the hysteresis loss depends upon both the applied voltage and frequency.

What happens to the hysteresis losses and eddy current losses if the frequency of a transformer is increased keeping the supply voltage constant?

As voltage is increasing by keeping V/f ratio constant i.e. frequency also increased. Therefore, both hysteresis and eddy current losses will increase, and hence core losses will increase.

What is hysteresis loss per cycle?

dB‟ is the area of elementary strip of B –H curve shown in the figure above, Therefore, Energy consumed per cycle = volume of the right x area of hysteresis loop. The hysteresis loss per second is given by the equation[20]: Hysteresis loss, Ph= (Bmax)1.6f V joules per second (or) watts.

What are hysteresis energy losses and factors that affect hysteresis losses?

Definition: Hysteresis loss can be caused through the magnetization & demagnetization of the core when current supplies within the directions of forward & reverse. When the magnetization force is applied within the magnetic material, then the molecules of the magnetic material are aligned in one particular direction.

What is the hysteresis loss at 100 Hz?

Frequency (f)Core losses (W)Case 140 Hz100Case 230 Hz72Case 350 HzRequired value

Is eddy current loss depends on frequency?

Thus, we can say that eddy current loss depends on frequency, flux density and thickness of the core.

What is hysteresis loss in DC machine?

Hysteresis Loss in DC Machine The constant process of magnetic reversal in the armature, consume some amount of energy which is called hysteresis loss. The percentage of loss depends upon the quality and volume of the iron.

What is hysteresis law?

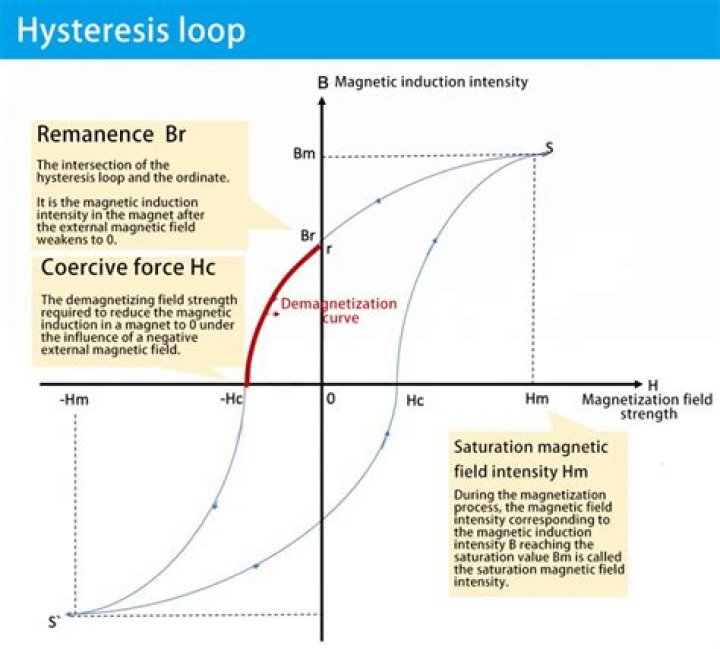

When a ferromagnetic material is magnetized in one direction, it will not relax back to zero magnetization when the imposed magnetizing field is removed. … The lack of retraceability of the magnetization curve is the property called hysteresis and it is related to the existence of magnetic domains in the material.

What happens for the energy loss as hysteresis loss?

…which is known as the hysteresis loss, in reversing the magnetization of the material is proportional to the area of the hysteresis loop. Therefore, cores of transformers are made of materials with narrow hysteresis loops so that little energy will be wasted in the form of heat.

How can we minimize hysteresis loss the magnetic material?

∴ The hysteresis loss in a given magnetic material may be decreased by decreasing maximum flux density established through it or by using magnetic material having low hysteresis coefficient.

Why are electrical cores laminated?

By laminating the core, the area of each section is reduced and hence the induced emf also reduces. As the area through which the current is passed is smaller, the resistance of eddy current path increases.

Which of the following mentioned losses occur in a transformer?

The best explanation: Hysteresis losses-due to magnetic material; Eddy current losses-on the core area; Dielectric losses- due to insulation material; Stray load losses- due to leakage through the parts of the transformer.

Which loss in transformer varies with frequency?

As frequency increases, the flux density in the core decreases but as the iron loss is directly proportional to the frequency hence effect of increased frequency will be reflected in the increase of the iron losses. Concept: Iron losses or core losses of the transformer includes both hysteresis and eddy current losses.

Which loss depends upon the current in the winding?

(ii) Copper loss in transformer Where, I1 and I2 are current in primary and secondary winding respectively, R1 and R2 are the resistances of primary and secondary winding respectively. It is clear that Cu loss is proportional to square of the current, and current depends on the load.

What will happen to hysteresis loss if voltage is doubled load is doubled and frequency is halved?

It is load independent. Thus by doing voltage twice and frequency half of the original value we will get same hysteresis loss.

Which loss is independent of frequency?

So, Copper loss in transformers is independent of frequency.

Which among these losses does not depends on load and is constant select one a eddy current losses B hysteresis losses C a and b/d copper losses?

Both hysteresis loss and eddy current loss do not depend upon load current, which means iron losses are constant with varying load. Copper loss = Conduction losses in conductor winding, which are directly proportional to the current square.

How are hysteresis losses measured?

De hysteresis losses are simple to determinate by multiplying the measured voltage and current and than measure the total energy over on full period over the resulted power curve. The measured voltage over the shunt resistor R must first being converted to current.
